Product Description

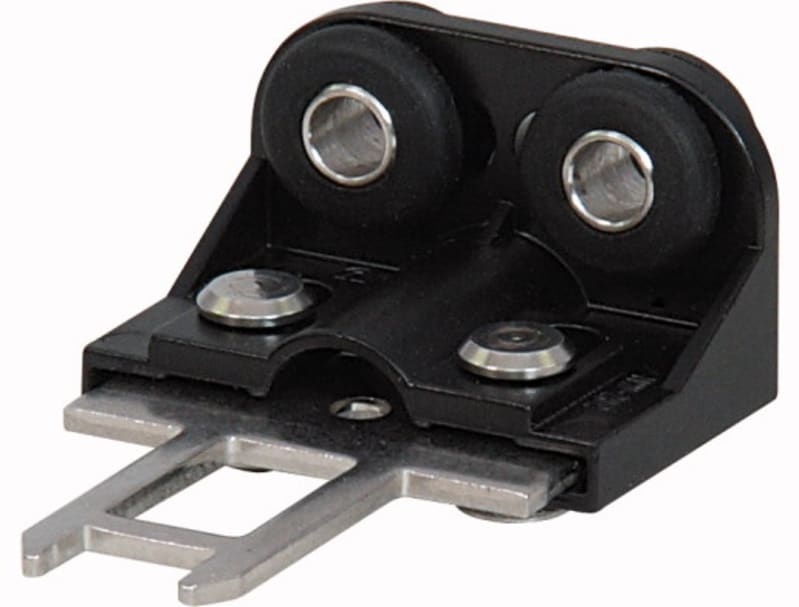

Eaton LS-XNW-ZBZ Compensating actuator, angled.
Technical Specifications
- Manufacturer part number (MPN)
- LS-XNW-ZBZ
- EAN / GTIN
- 4015081065950
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 106835
- Depth
- 42 mm
- Height
- 62 mm
- Width
- 31 mm
- Weight
- 0.052 kg
- Certifications
- CE; CSA File No.: 012528; CSA Class No.: 3211-03; CSA-C22.2 No. 14; IEC/EN 60947; UL Category Control No.: NKCR; UL 508; CSA; UL File No.: E29184; IEC/EN 60947-5; UL
- Mechanical holding force
- 1700 N (according to GS-ET-19 (04/2004), XG, XW, XNG); 1200 N (according to GS-ET-19 (04/2004), XNW); 1600 N (according to GS-ET-19 (04/2004), XWA, XFG, XF)
- Mounting position
- As required
- Shock resistance
- 10 g, Standard-action contact, Mechanical, Half-Sinusoidal shock 20 ms
- Ambient operating temperature - max
- 40 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Fitted with
- Increased tolerance in closing direction
- Functions
- For combination with LS-...ZBZ/X basic devices
- Material
- Stainless steel
- Duty factor
- 100 %
- Model
- Actuator with vertical mounting
- Operating frequency
- 800 Operations/h
- Type
- Actuator Angled compensating actuator
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081065950
- SAP 1000288802
- Code 8297227
Product Documentation
Document preview: Kompenserende actuator, — Specification Data Sheet (OEM)
