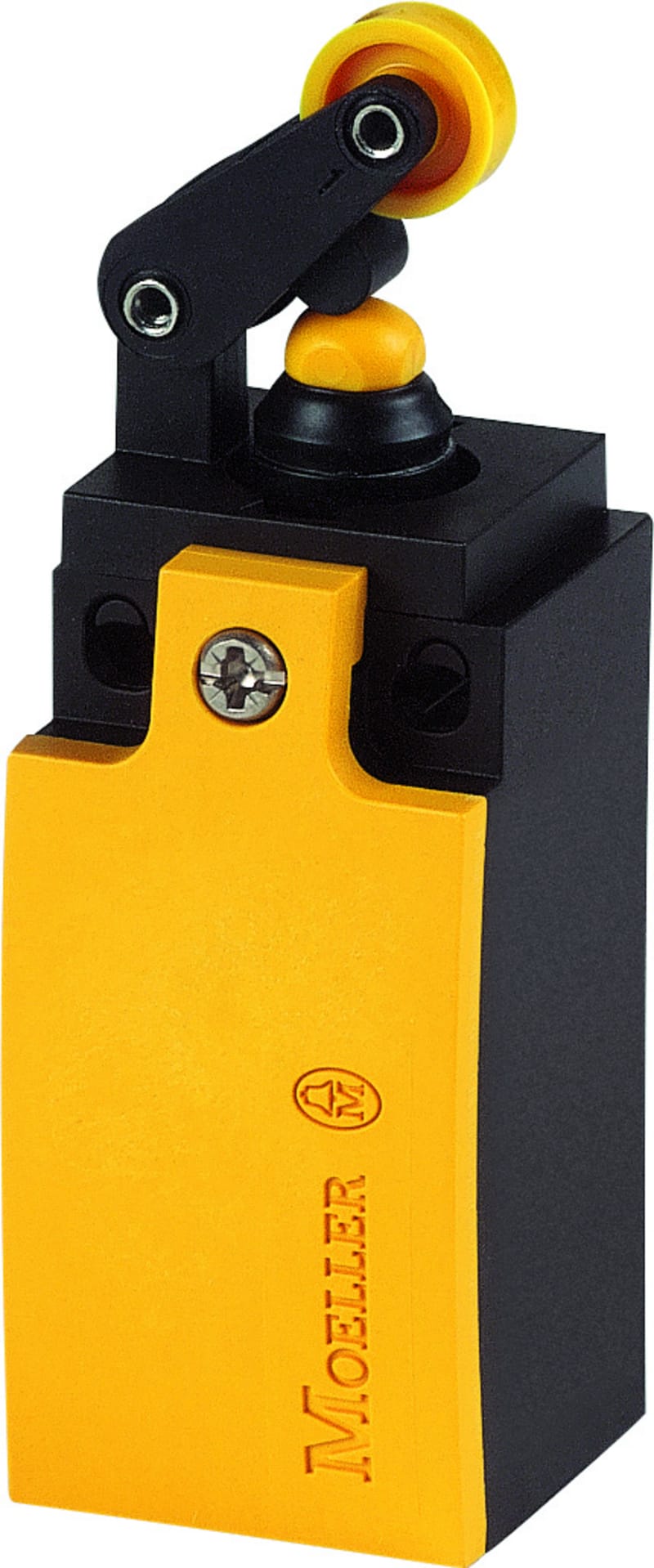

Position Switch LS-11D/L

Eaton LS-11D/L Position Switch, Roller lever, complete unit, 1 N/O, 1 NC (sent break), push-in terminal, yellow.

Manufacturer part number (MPN)

LS-11D/L

EAN / GTIN

4015082661151

Sales unit

pcs

Package quantity

2 pcs

Eaton catalogue number

266115

Depth

33.5 mm

Height

96 mm

Width

31 mm

Weight

0.055 kg

Certifications

CE; CSA Class No.: 3211-03; IEC/EN 60947-5; IEC/EN 60947; CSA-C22.2 No. 14; CSA; UL 508; UL Category Control No.: NKCR; UL File No.: E29184; UL; CSA File No.: 012528

Actuating force at beginning/end of stroke

1.0 N/8.0 N

Actuating torque of rotary drives

0.2 Nm

Actuator type

Roller lever

Operating speed

Max. 1 m/s (with DIN cam, mechanical actuation); For angle of actuation α = 30°/45°

Mounting position

As required

Shock resistance

25 g, Standard-action contact, Mechanical, Half-sinusoidal shock 20 ms

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Control circuit reliability

1 failure per 10,000,000 switching operations (Statistically determined, at 24 V DC/5 mA); 1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA)

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

1

Heat dissipation per pole, current-dependent Pvid

0.17 W

Rated operational current for specified heat dissipation (In)

6 A

Rated insulation voltage (Ui)

400 V

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

6 A

Rated operational current (Ie) at AC-15, 24 V

6 A

Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V

4 A

Rated operational current (Ie) at DC-13, 110 V

0.6 A

Rated operational current (Ie) at DC-13, 125 V

0.8 A

Rated operational current (Ie) at DC-13, 220 V, 230 V

0.3 A

Rated operational current (Ie) at DC-13, 24 V

3 A

Short-circuit protection rating

Max. 6 A gG/gL, Fuse, Contacts

Supply frequency

Max. 400 Hz, Contacts

Rated conditional short-circuit current (Iq)

1 kA

Electric connection type

Cable entry metrical

Enclosure color

Yellow Cover

Enclosure material

Insulated material; Plastic

Features

Positive opening; Forced opening

Switch function type

Slow-action switch

Connection type

Cage Clamp

Degree of protection

IP66/IP67; NEMA Other

Lifespan

8,000,000 mechanical Operations

Operating frequency

6000 Operations/h

Overvoltage category

III

Pollution degree

3

Product category

Roller lever

Rated impulse withstand voltage (Uimp)

4000 V AC

Repetition accuracy

0.15 mm (Contacts/switching capacity)

Suitable for

Safety functions

Type

Safety position switch

Explosion safety category for dust

None

Explosion safety category for gas

None

Terminal capacity (flexible with ferrule)

1 x (0.5 - 1.5) mm²

Terminal capacity (solid)

1 x (0.5 - 2.5) mm²

Switching function

Slow-action switch

Rated operation current Ie at AC-15, 230 V

6 A

Rated operation current Ie at DC-13, 230 V

0.3 A

Housing material

Plastic

Suitable for safety functions

Yes

With status indication

No

Type of interface for safety communication

None

Construction type housing

Cuboid

Forced opening

Yes

Type of control element

Roller lever

Type of interface

None

Output electronic

No

Rated operation current Ie at AC-15, 125 V

6 A

Rated operation current Ie at AC-15, 24 V

6 A

Rated operation current Ie at DC-13, 125 V

0.8 A

Rated operation current Ie at DC-13, 24 V

3 A

Width sensor

31 mm

Height of sensor

61 mm

Length of sensor

33.5 mm

Switching function latching

No

Ambient temperature during operating

25–70 °C

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

Country of origin

Germany

HS Code

8536.50
