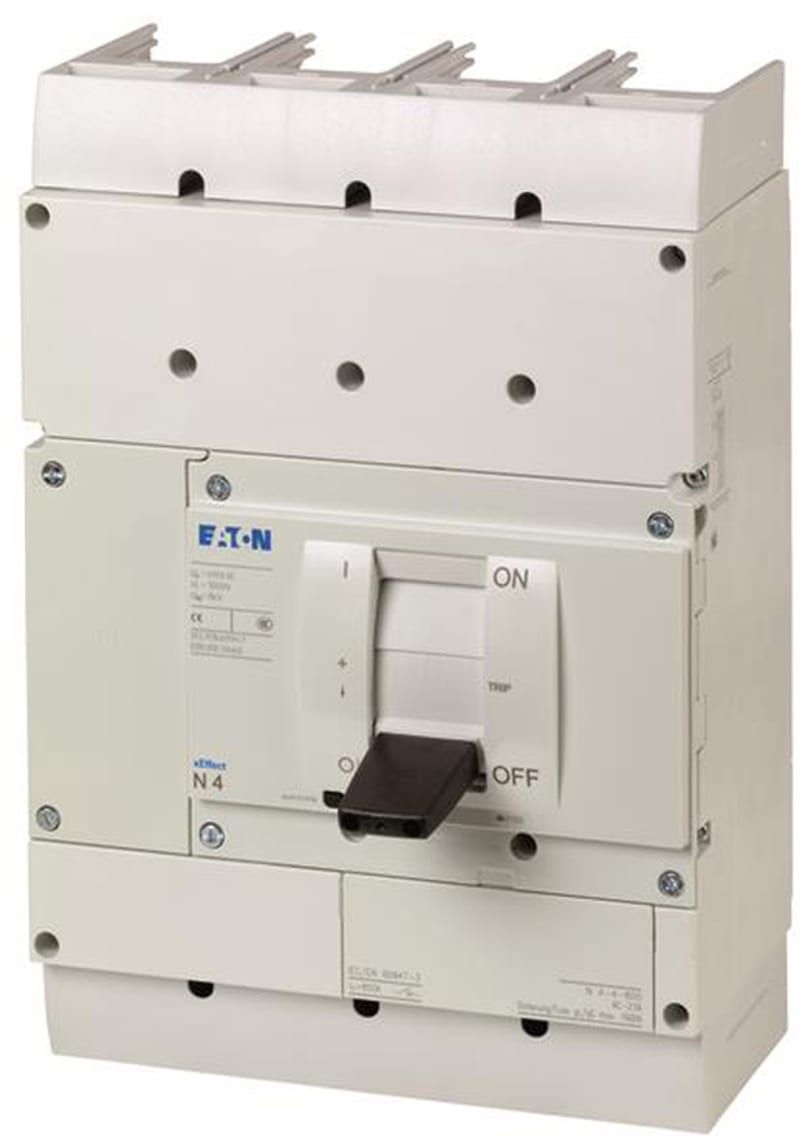

Eaton N4-4-800-S1-DC
Part numberN4-4-800-S1-DCEAN / GTIN4015081177387HS code8536.20
Switchgear & Protection
Disconnect Switches
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton N4-4-800-S1-DC is listed under Switchgear & Protection / Disconnect Switches. Sales unit: pcs; Eaton catalogue number: 119890; Depth: 401 mm; Height: 207 mm; Width: 280 mm; Weight: 22.723 kg.
Technical Specifications
- Manufacturer part number (MPN)
- N4-4-800-S1-DC
- EAN / GTIN
- 4015081177387
- Sales unit
- pcs
- Eaton catalogue number
- 119890
- Depth
- 401 mm
- Height
- 207 mm
- Width
- 280 mm
- Weight
- 22.723 kg
- Compliances
- RoHS conform
- Certifications
- IEC; IEC 60947-3; CCC
- Functions
- Interlockable; Voltage release optional; Disconnectors/main switches; Photovoltaic applications
- Amperage Rating
- 800 A
- Application
- Open areas Utility buildings
- Circuit breaker frame type
- N4
- Features
- Motor drive optional; Version as main switch; Version as emergency stop installation; Remote operation with shunt releases / remote operator; Version as maintenance-/service switch
- Number of poles
- Four-pole
- Type
- DC switch-disconnector
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Equipment heat dissipation, current-dependent
- 95 W
- Rated operational current for specified heat dissipation (In)
- 800 A
- Current rating (Iu) at 40°C with terminal jumpers
- 800 A
- Current rating (Iu) at 65°C with terminal jumpers
- 800 A
- Electrical connection type of main circuit
- Screw connection
- Handle type
- Rocker lever
- Number of operations per hour - max
- 60
- Overvoltage category
- III
- Pollution degree
- 3
- Rated insulation voltage (Ui)
- 1250 V
- Rated operational current
- 1400 CSA (DC-21B); 800 A (DC 22-A)
- Rated short-time withstand current (Icw)
- 34 kA
- Rated short-time withstand current (t = 0.1 s)
- 34 kA
- Utilization category
- DC-22 A
- Voltage rating
- 1000 V - 1000 V
- Degree of protection
- IP20
- Degree of protection (IP), front side
- IP20
- Handle color
- Black
- Lifespan, mechanical
- 10000 operations
- Mounting Method
- Built-in device fixed built-in technique; Fixed; Distribution board installation; Ground mounting; Intermediate mounting
- Number of auxiliary contacts (change-over contacts)
- 0
- Number of auxiliary contacts (normally closed contacts)
- 0
- Number of auxiliary contacts (normally open contacts)
- 0
- Number of switches
- 1
- Switch positions
- I, +, 0
- Standard terminals
- Screw terminal
- Terminal capacity (aluminum stranded conductor/cable)
- 25 mm² - 240 mm² (4x) at 4-hole tunnel terminal
- Terminal capacity (copper stranded conductor/cable)
- 50 mm² - 185 mm² (4x) direct at switch rear-side connection; 120 mm² - 185 mm² (1x) direct at switch rear-side connection; 50 mm² - 240 mm² (1x) at 2-hole tunnel terminal; 50 mm² - 240 mm² (2x) at 2-hole tunnel terminal
- Document Name
- Description Action
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 4015081177387
- SAP 1200283472
- Code 82253614
Product Documentation
Document preview: Eaton N4-4-800-S1-DC — Specification Data Sheet (OEM)
