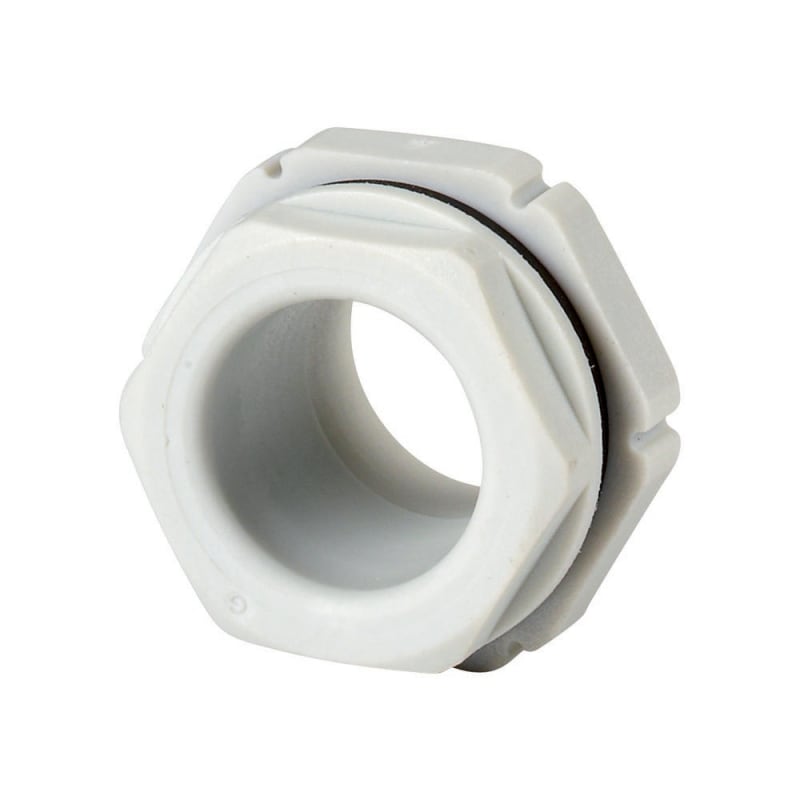

Eaton M22-XI Coupling Connector for M22-I Surface-Mount Enclosures
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-XI (catalogue 229162) is a coupling connector used to join any M22-I(Y)1 to M22-I6 surface-mounting enclosure, mounted via the M20 cable entry from the side. It measures 30 x 22 x 30 mm and weighs 5 g, with an IP67 rating and an operating range of −25 to 70 °C. Supplied as a spare part in packs of 25; country of origin is Germany.
Technical Specifications
- Manufacturer part number (MPN)
- M22-XI
- EAN / GTIN
- 4015082291624
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Eaton catalogue number
- 229162
- Depth
- 30 mm
- Height
- 22 mm
- Width
- 30 mm
- Weight
- 0.005 kg
- Certifications
- UL/CSA certification not required
- Catalog Notes
- Mounting by M20 cable entry from the side
- Functions
- For connecting any M22-I(Y)1 to M22-I6 surface mounting enclosure
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Connection to SmartWire-DT
- No
- Accessory/spare part type
- Spare part
- Degree of protection
- IP67
- Accessory
- No
- Spare part
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7318.15
Cross References
- EAN 4015082291624
- SAP 1000073080
- Code 8790868
