Eaton

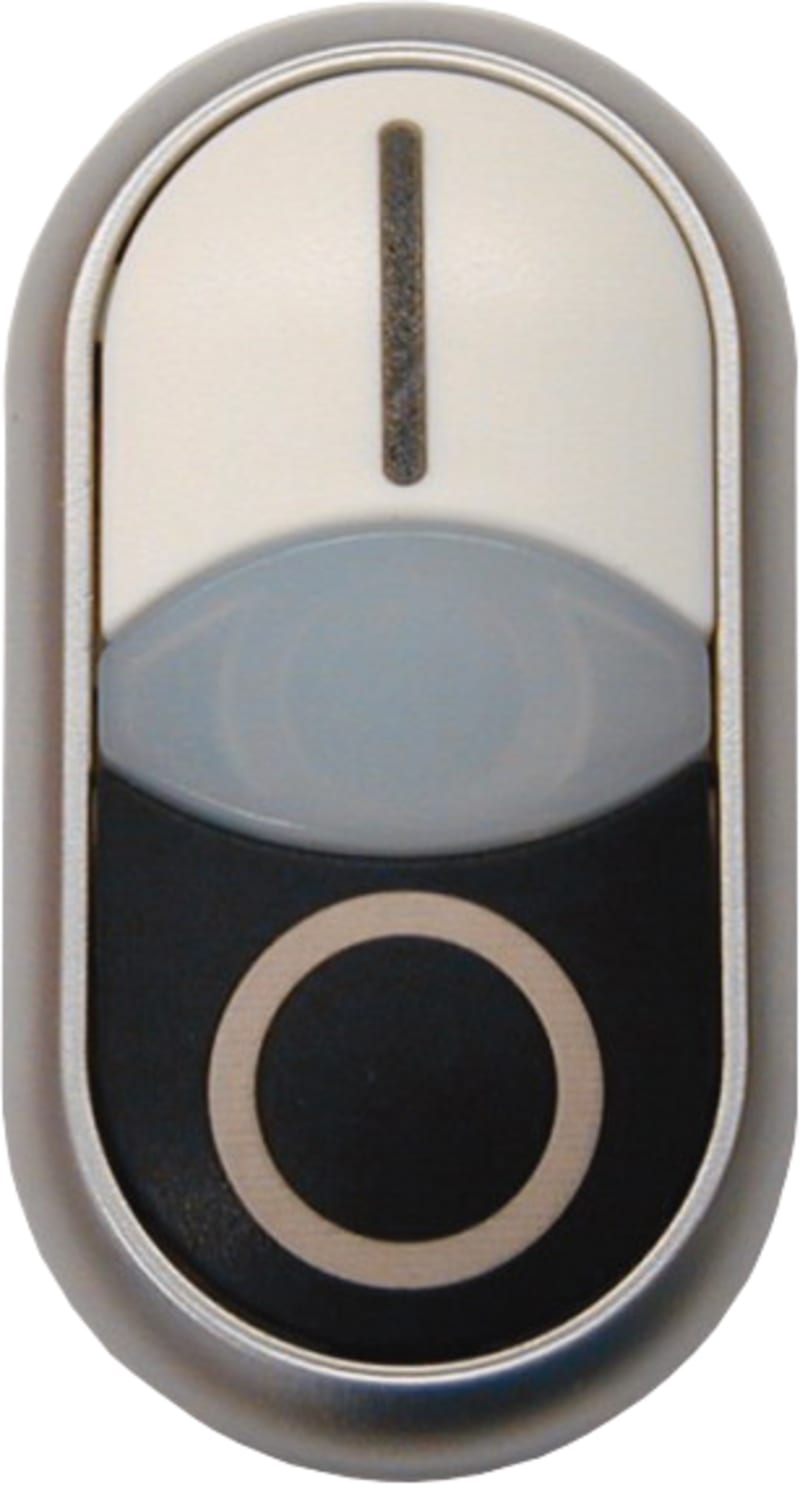

DoubleTR.BUTTON 1/0 with LIGHT
Part numberM22-DDL-WS-X1/X0EAN / GTIN4015082167066HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton DoubleTR.BUTTON 1/0 with LIGHT (part number M22-DDL-WS-X1/X0) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 5 pcs; Eaton catalogue number: 216706; Depth: 30 mm; Height: 55 mm; Width: 30 mm.
Technical Specifications
- Manufacturer part number (MPN)
- M22-DDL-WS-X1/X0
- EAN / GTIN
- 4015082167066
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 216706
- Depth
- 30 mm
- Height
- 55 mm
- Width
- 30 mm
- Weight
- 0.015 kg
- Certifications
- CSA; UL File No.: E29184; CSA Class No.: 3211-03; IEC/EN 60947; UL 508; CSA-C22.2 No. 14-05; CE; CSA File No.: 012528; CSA-C22.2 No. 94-91; VDE 0660; IEC/EN 60947-5; UL; UL Category Control No.: NKCR; DNV; GL; LR
- Actuating force
- 5 N
- Actuator color
- Black and white
- Actuator function
- Momentary; Spring-return
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- Non-Flush; Classical
- Features
- Labelled
- Fitted with
- Front ring
- Inscription
- Inscribed
- Lens color
- White
- Lens type
- Oval
- Number of command positions
- 2
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 80 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- With SWD-RMQ connections; Yes
- Degree of protection
- NEMA 13; IP66; NEMA 12; NEMA 4X; NEMA 3R
- Degree of protection (front side)
- NEMA 4X; IP66
- Lifespan, mechanical
- 200,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 3600 Operations/h
- Product category
- RMQ-Titan
- Size
- Front dimensions: 29,7 x 54,7 mm
- Suitable for
- Illumination
- Type
- Double actuator
- Hole diameter
- 22 mm
- Suitable for lighting
- Yes
- Spring-return
- Yes
- Labelled
- Yes
- Type of button
- Flat
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP66
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- No
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082167066
- SAP 1000027360
- Code 8246589
Product Documentation
Document preview: DoubleTR.BUTTON 1/0 M/LYS (M22-DDL-WS-X1/X0) — Specification Data Sheet (OEM)
