Eaton

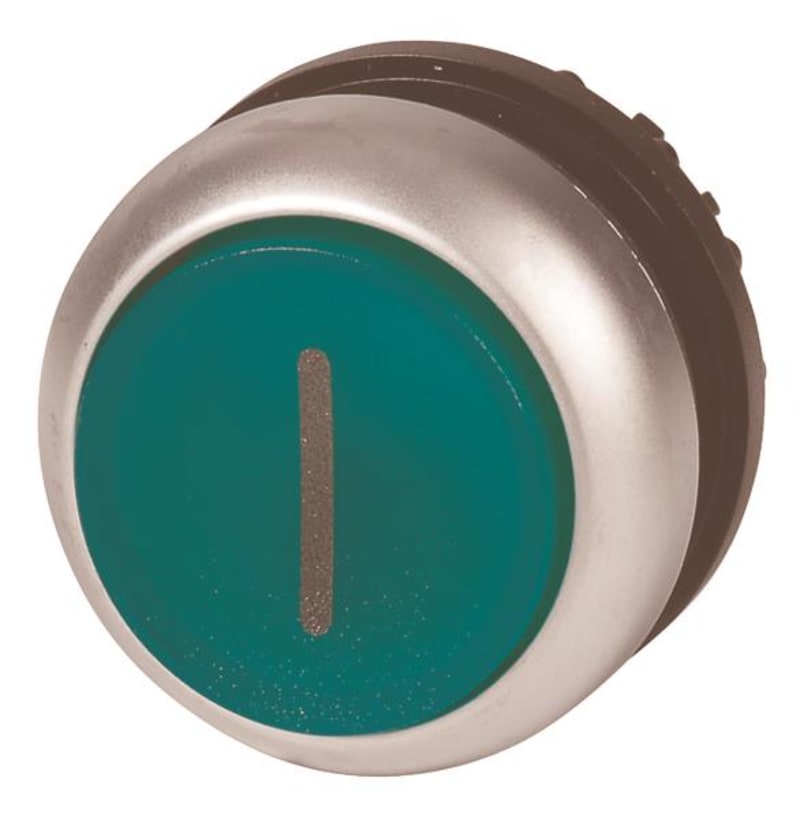

ILLUMINATED PUSH BUTTON, IMP, Green/Start (M22-DLH-G-X1)
Part numberM22-DLH-G-X1EAN / GTIN4015082169770HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-DLH-G-X1 Illuminated pushbutton actuator, raised, green In, momentary.
Technical Specifications
- Manufacturer part number (MPN)
- M22-DLH-G-X1
- EAN / GTIN
- 4015082169770
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 216977
- Depth
- 30 mm
- Height
- 35 mm
- Width
- 30 mm
- Weight
- 0.012 kg
- Certifications
- CE; IEC/EN 60947-5; IEC/EN 60947; UL Category Control No.: NKCR; CSA File No.: 012528; UL File No.: E29184; CSA Class No.: 3211-03; UL 508; CSA-C22.2 No. 94-91; CSA; CSA-C22.2 No. 14-05; UL; VDE 0660; DNV; GL; LR
- Actuating force
- 5 N
- Actuator color
- Green
- Actuator function
- Spring-return; Momentary
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- Extended; Classical
- Features
- Labelled
- Fitted with
- Front ring
- Inscription
- Inscribed
- Lens type
- Round
- Number of command positions
- 1
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- With SWD-RMQ connections; Yes
- Degree of protection
- IP67; IP69K; NEMA 12; NEMA 4X; NEMA 13; NEMA 3R; IP66
- Degree of protection (front side)
- NEMA 4X; IP67/IP69K
- Lifespan, mechanical
- 5,000,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 3600 Operations/h
- Product category
- RMQ-Titan
- Size
- Front diameter: 29.7 mm
- Suitable for
- Illumination
- Type
- Illuminated pushbutton actuator
- Hole diameter
- 22 mm
- Colour button
- Green
- Suitable for lighting
- Yes
- Spring-return
- Yes
- Labelled
- Yes
- Type of button
- High
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP67/IP69K
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082169770
- SAP 1000074657
- Code 8797431
Product Documentation
Document preview: ILLUMINATED PUSH BUTTON, IMP, GREEN/START (M22-DLH-G-X1) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Push-button, Flat Front (M30C-FD-GR)
Eaton
Eaton IZMX40B3-P40F-1
Eaton
Front plate sealed white H500 B400 xE Basic
BPZ-FP-400/500-BL-W
Eaton
Side panel plinth hole xE Light (XLSPL1SO8)
Eaton
Front plate NZM2 H H200 B800 xE Basic (BPZ-FP/S-NZM2-XFI-800-MH)
Eaton
Eaton FAZ-B5/1N Miniature Circuit Breaker — 1P+N, Type B, 5 A, 15 kA
Eaton
Partition Plate rails xE Light (XLPBT61)
Eaton

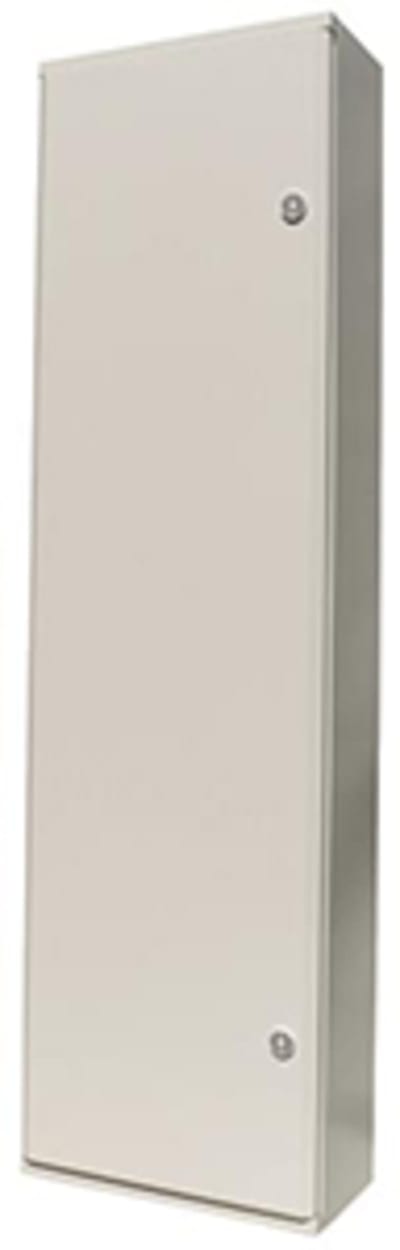

White cabinet B=1200 H=1760 D=300 (BP-F-1200/17/3-W)
