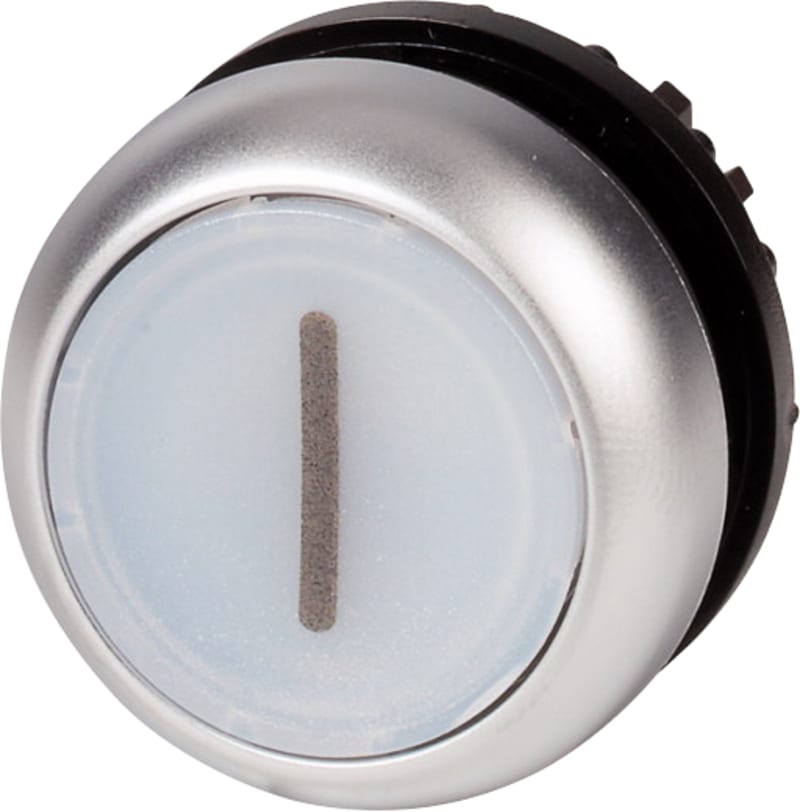

ILLUMINATED PUSH BUTTON, IMP, White/Start
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton ILLUMINATED PUSH BUTTON, IMP, White/Start (part number M22-DL-W-X1) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 216942; Depth: 30 mm; Height: 30 mm; Width: 30 mm.
Technical Specifications
- Manufacturer part number (MPN)
- M22-DL-W-X1
- EAN / GTIN
- 4015082169428
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 216942
- Depth
- 30 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.01 kg
- Certifications
- CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CSA Class No.: 3211-03; UL 508; VDE 0660; CE; IEC/EN 60947-5; CSA; UL Category Control No.: NKCR; UL; CSA File No.: 012528; IEC/EN 60947; UL File No.: E29184; DNV; GL; LR
- Actuating force
- 5 N
- Actuator color
- White
- Actuator function
- Momentary; Spring-return
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- Flush; Classical
- Features
- Labelled
- Fitted with
- Front ring
- Inscription
- Inscribed
- Lens type
- Round
- Number of command positions
- 1
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- Yes; With SWD-RMQ connections
- Degree of protection
- NEMA 3R; IP66; IP67; NEMA 4X; IP69K; NEMA 13; NEMA 12
- Degree of protection (front side)
- IP67/IP69K; NEMA 4X
- Lifespan, mechanical
- 5,000,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 3600 Operations/h
- Product category
- RMQ-Titan
- Size
- Front diameter: 29.7 mm
- Suitable for
- Illumination
- Type
- Illuminated pushbutton actuator
- Hole diameter
- 22 mm
- Colour button
- White
- Suitable for lighting
- Yes
- Spring-return
- Yes
- Labelled
- Yes
- Type of button
- Flat
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP67/IP69K
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082169428
- SAP 1000018370
- Code 8151388
Product Documentation
More from Eaton
Eaton

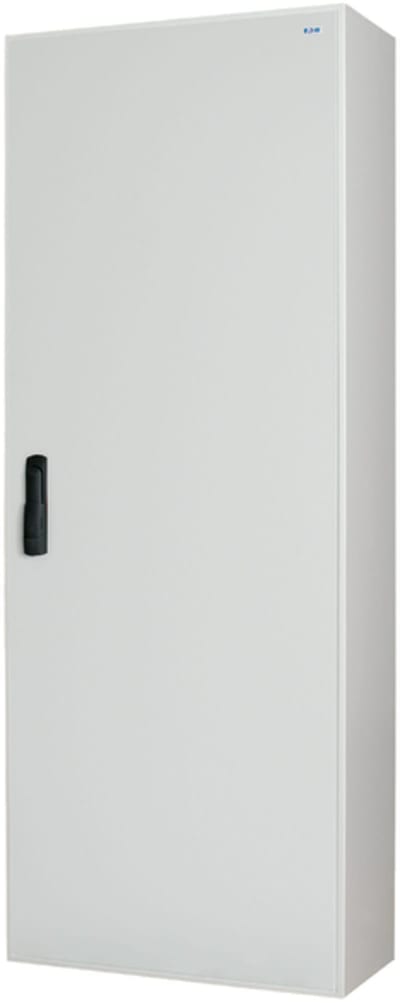

Wall-mount cabinet IP55 xE Basic H1260 B1200 D270
BPM-O-1200/12-P
Eaton

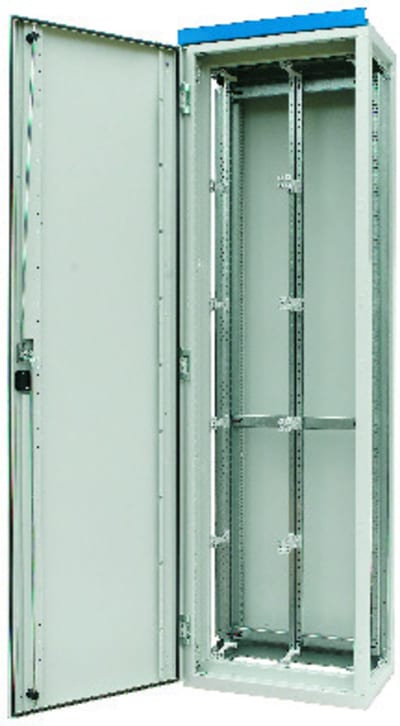

Kit for split configuration (XVTL-SF-16-200)
Eaton

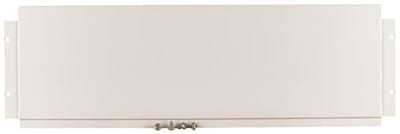

pl. B=600mm closed H
BP-FLP-600-BL-W
Eaton

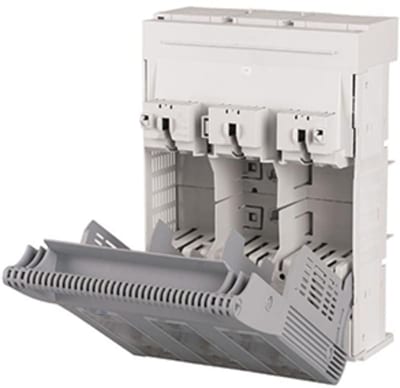

NH2 Switch-disconnector 3P400 BBL
XNH2-FCL-S400-BT
Eaton

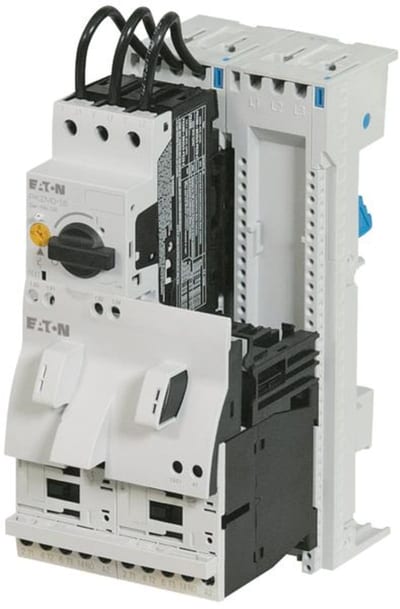

Direction of rotation starter (103007)
Eaton

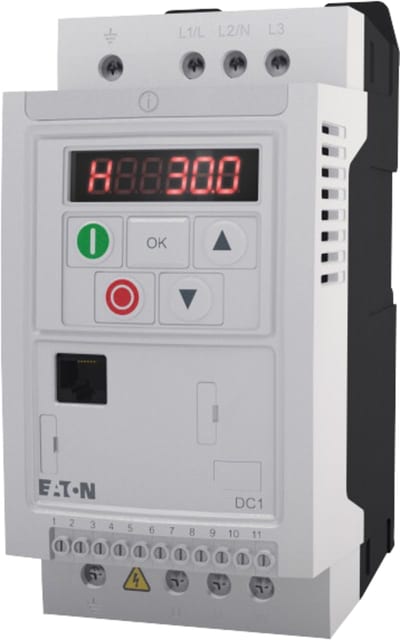

DC1 Variable-frequency drive 0,75kW (DC1-S27D0NN-A20N)
