Contact element 1NO1NC front

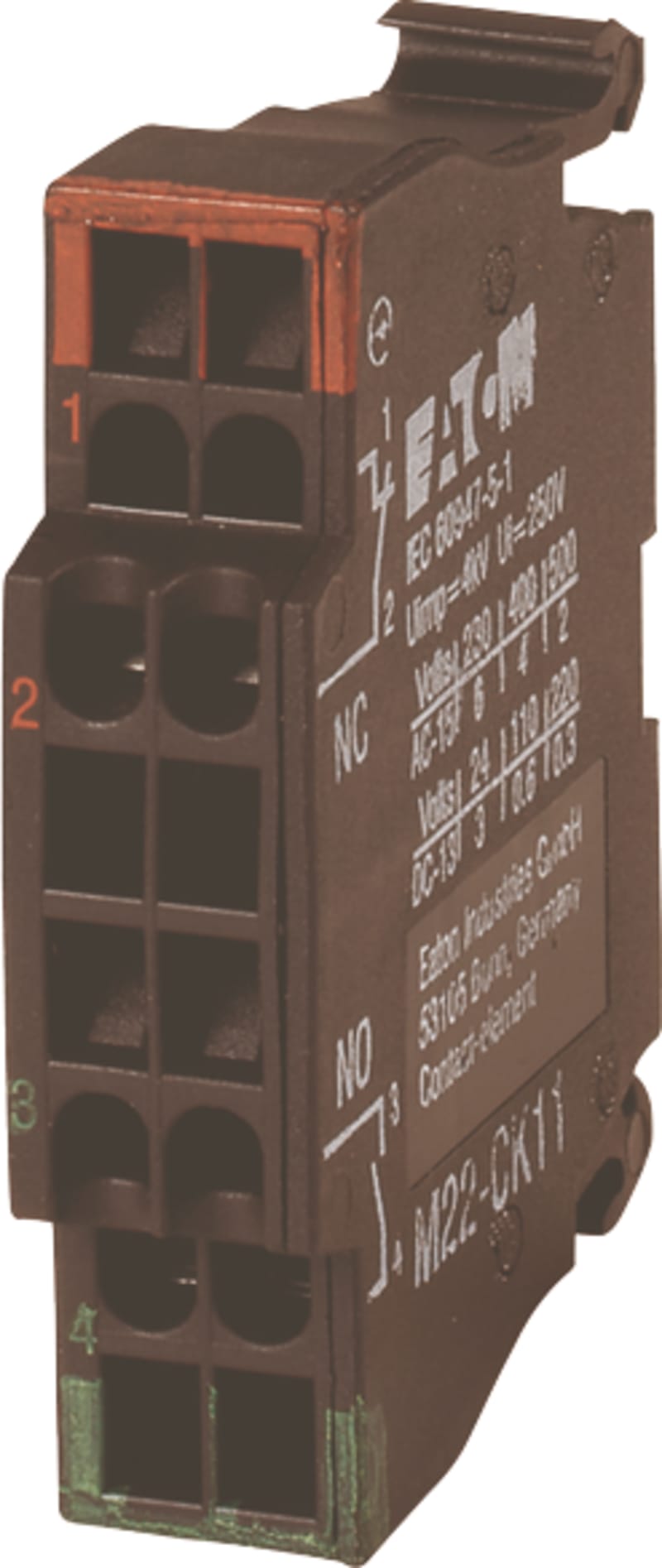

Eaton M22-CK11 Contact Element 1NO1NC front.

Manufacturer part number (MPN)

M22-CK11

EAN / GTIN

4015081075379

Sales unit

pcs

Package quantity

20 pcs

Eaton catalogue number

107940

Depth

43 mm

Height

10 mm

Width

38 mm

Weight

12 g

Compliances

CE Marked

Certifications

CSA Std. C22.2 No. 94-91; IEC 60947-5; CSA Std. C22.2 No. 14-05; EN 60947-5; UL 508; CSA; IEC 60947-5-1; CSA File No.: 012528; UL File No.: E29184; CE; CSA-C22.2 No. 94-91; UL Category Control No.: NKCR; CSA Class No.: 3211-03; IEC/EN 60947-5; IEC; CSA-C22.2 No. 14-05; UL/CSA; UL

Actuating force - max

10 N

Knob travel

5.7 mm

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection to SmartWire-DT

No

Control circuit reliability

1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA); 1 failure per 10,000,000 switching operations (Statistically determined, at 24 V DC/5 mA)

Force for positive opening - min

20 N

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

1

Heat dissipation per pole, current-dependent Pvid

0.05 W

Rated operational current for specified heat dissipation (In)

4 A

Conventional thermal current Ith of auxiliary contacts (1-pole, open)

4 A

Rated insulation voltage (Ui)

250 V

Rated operational current (Ie) at AC-15, 115 V

4 A

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

6 A

Rated operational current (Ie) at DC-13, 110 V

0.6 A

Rated operational current (Ie) at DC-13, 220 V, 230 V

0.3 A

Rated operational current (Ie) at DC-13, 24 V

3 A

Rated operational current (Ie) at DC-13, 60 V

1 A

Rated operational voltage (Ue) at AC - max

230 V

Rated operational voltage (Ue) at DC - max

220 V

Electric connection type

Spring clamp connection

Degree of protection

IP20

Model

Top mounting and integrable

Operating frequency

3600 Operations/h

Overvoltage category

III

Pollution degree

3

Product category

Accessories

Rated impulse withstand voltage (Uimp)

4000 V AC

Type

Auxiliary contact

Connection type

Double contact; Front fixing; Cage Clamp

Mounting method

Front fastening

Rated conditional short-circuit current (Iq)

1 kA

Short-circuit protection

PKZM0-10/FAZ-B6/1, Contacts, Max. short-circuit protective device, Fuseless

Short-circuit protection rating

Max. 10 A gG/gL, Fuse, Contacts; Max. 10 A gG/gL, Fuse, Auxiliary contacts

Terminal capacity (AWG)

1 x (20 - 18); 2 x (20 - 18)

Terminal capacity (flexible with ferrule)

0.5 - 1.5 mm²

Terminal capacity (solid)

0.5 - 1.5 mm²

Terminal capacity (solid/flexible with ferrule)

2 x (0,5 - 0,75) mm²; 1 x (0,5 - 1,5) mm²

Terminal capacity (stranded)

0.5 - 1.5 mm²

Country of origin

Germany

HS Code

8538.90
