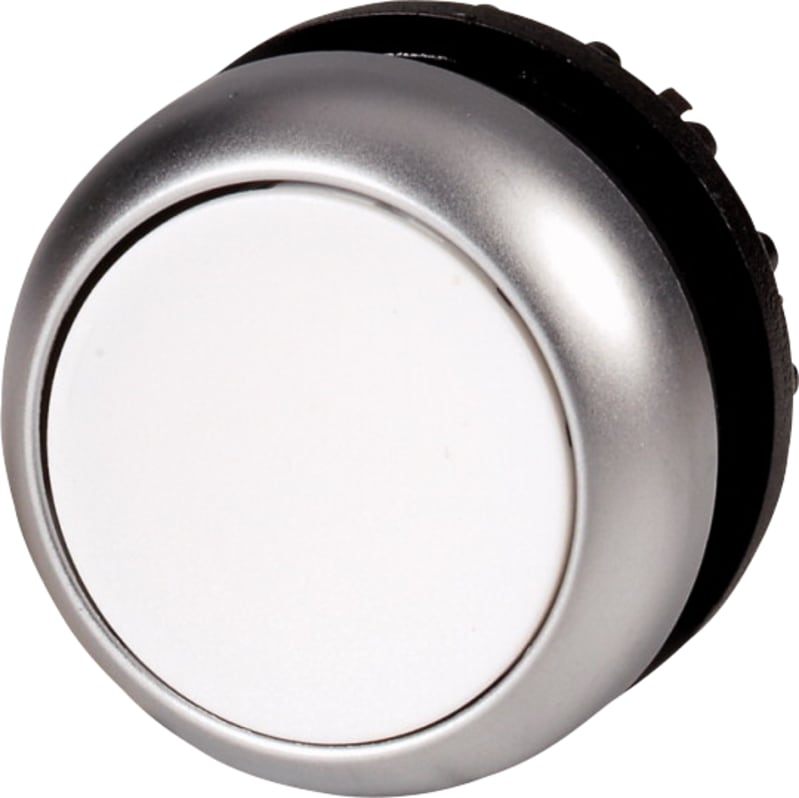

PUSH-BUTTON, WHITE, Impulse
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton PUSH-BUTTON, WHITE, Impulse (part number M22-D-W) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 216592; Depth: 30 mm; Height: 30 mm; Width: 30 mm.
Technical Specifications
- Manufacturer part number (MPN)
- M22-D-W
- EAN / GTIN
- 4015082165925
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 216592
- Depth
- 30 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.009 kg
- Compliances
- CE Marked
- Certifications
- IEC 60947-5; CSA Std. C22.2 No. 14-05; CSA Std. C22.2 No. 94-91; EN 60947-5; UL 508; VDE; IEC/EN 60947; UL Category Control No.: NKCR; UL File No.: E29184; CSA-C22.2 No. 14-05; CSA Class No.: 3211-03; CSA-C22.2 No. 94-91; CE; CSA; UL; CSA File No.: 012528; IEC/EN 60947-5; VDE 0660; DNV; GL; LR
- Actuating force
- 5 N
- Actuator color
- White
- Actuator function
- Spring-return; Momentary
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- Flat; Classical
- Fitted with
- Front ring
- Inscription
- Blank
- Lens type
- Round
- Number of command positions
- 1
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 80 °C
- Ambient operating temperature - min
- -25 °C
- Ambient storage temperature - min
- -40 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- With SWD-RMQ connections; Yes
- Degree of protection
- IP66; NEMA 12; NEMA 4X; NEMA 13; IP67; IP69K; NEMA 3R
- Degree of protection (front side)
- NEMA 4X; IP67/IP69K
- Lifespan, mechanical
- 5,000,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 3600 Operations/h
- Product category
- RMQ-Titan
- Size
- Front dimensions: 22 x 22 mm
- Type
- Pushbutton actuator
- Hole diameter
- 22 mm
- Colour button
- White
- Suitable for lighting
- No
- Spring-return
- Yes
- Labelled
- No
- Type of button
- Flat
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP67/IP69K
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082165925
- SAP 1000011024
- Code 886340
Product Documentation
More from Eaton
Eaton

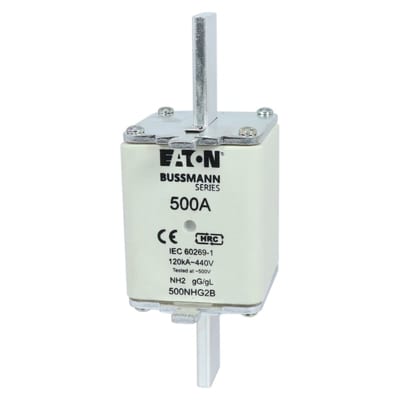

NH-2 500V gG/gL 500A
500NHG2B
Eaton

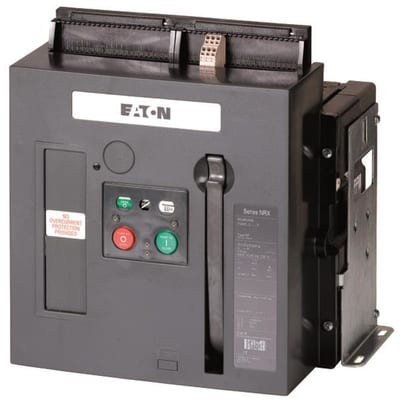

Eaton INX40N3-16F-1
Eaton

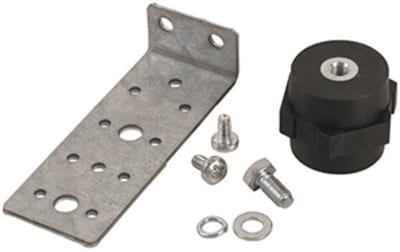

Eaton XDSFN Stainless-Steel Neutral Bracket for xEnergy Main Switchboard
Eaton

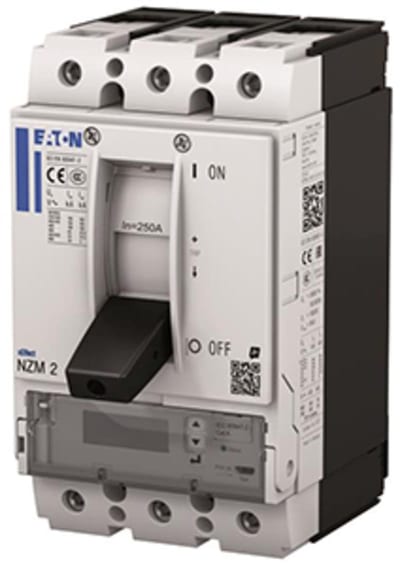

Eaton NZMN2-PMX160-SVE Circuit breaker
Eaton

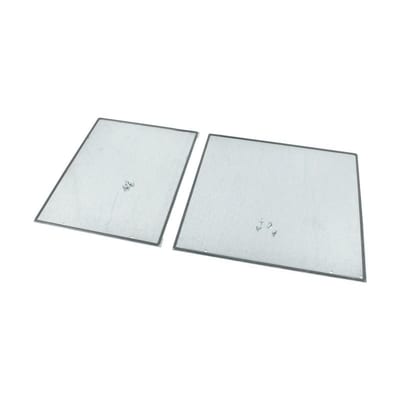

Bottom plate galvanised xE M B1200 D600
XSPBU1206-66-S
Eaton

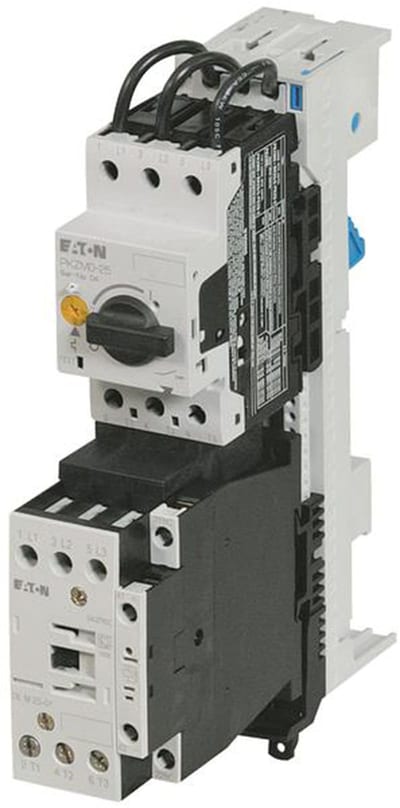

Eaton Direct Online Starter (DOL), Screw Connection (MSC-D-25-M25(230V50HZ)/BBA)
Eaton

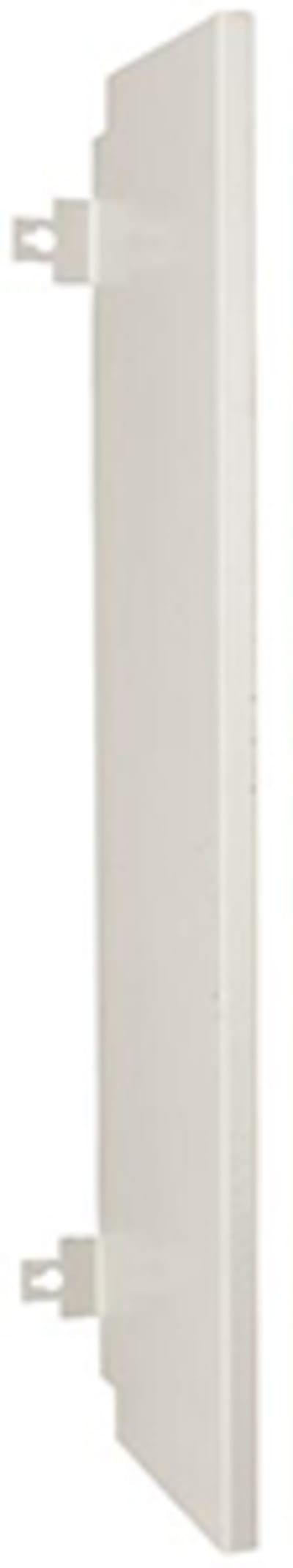

Eaton Partition Piece for Add-On Cabinet H=1200 mm
