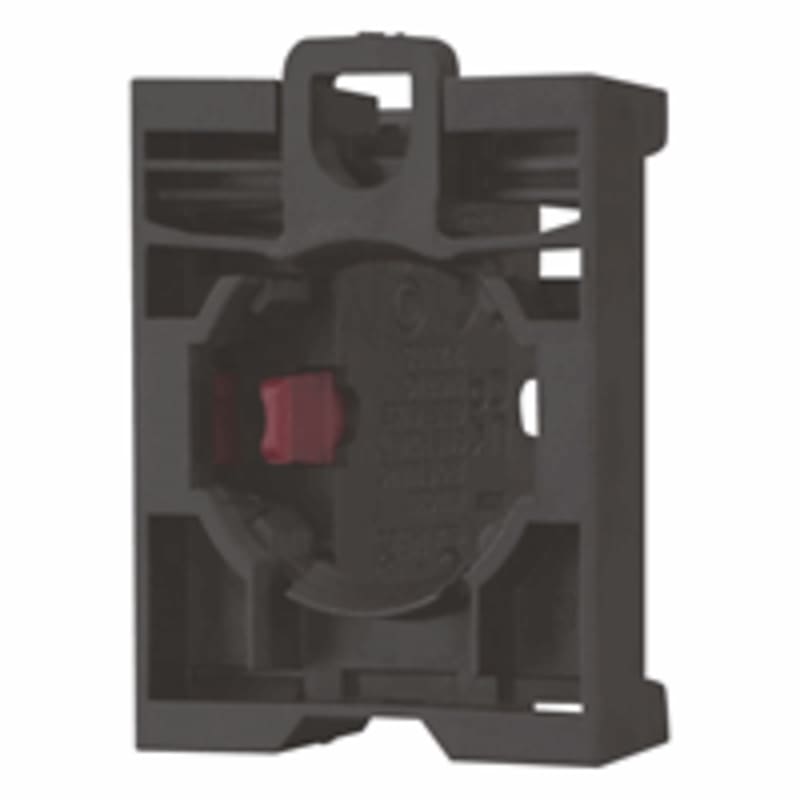

Complete Contact Block 1 NC with Adapter

Eaton M22-AK01 complete contact block with 1 N/C contact and fixing adapter for M22 pushbuttons.

Manufacturer part number (MPN)

M22-AK01

EAN / GTIN

4015082165031

Sales unit

pcs

Package quantity

5 pcs

Eaton catalogue number

216503

Depth

35 mm

Height

30 mm

Width

40 mm

Weight

0.014 kg

Certifications

UL; CSA; CSA-C22.2 No. 94-91; IEC/EN 60947-5; UL Category Control No.: NKCR; CE; IEC 60947-5-1; UL 508; CSA-C22.2 No. 14-05; UL File No.: E29184; CSA Class No.: 3211-03; CSA File No.: 012528

Catalog Notes

Contacts with safety function, by positive opening to IEC/EN 60947-5-1

Actuating force - max

5 N

Knob travel

5.7 mm

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection to SmartWire-DT

No

Control circuit reliability

1 failure per 10,000,000 switching operations (Statistically determined, at 24 V DC/5 mA); 1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA)

Force for positive opening - min

15 N

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

0

Heat dissipation per pole, current-dependent Pvid

0.11 W

Rated operational current for specified heat dissipation (In)

6 A

Rated insulation voltage (Ui)

500 V

Rated operational current (Ie) at AC-15, 115 V

6 A

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

6 A

Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V

4 A

Rated operational current (Ie) at AC-15, 500 V

2 A

Rated operational current (Ie) at DC-13, 110 V

0.6 A

Rated operational current (Ie) at DC-13, 220 V, 230 V

0.3 A

Rated operational current (Ie) at DC-13, 24 V

3 A

Rated operational current (Ie) at DC-13, 42 V

1.7 A

Rated operational current (Ie) at DC-13, 500 V

0.1 A

Rated operational current (Ie) at DC-13, 60 V

1.2 A

Electric connection type

Screw connection

Degree of protection

IP20

Lifespan, electrical

700,000 Operations (at 230 V, AC-15, 3 A); 1,600,000 Operations (at 230 V, 0.5 A); 1,200,000 Operations (at 12 V, DC-13, 2.8 A); 1,000,000 Operations (at 230 V, AC-15, 1 A)

Lifespan, mechanical

5,000,000 Operations

Model

Top mounting

Operating frequency

3600 Operations/h

Overvoltage category

III

Pollution degree

3

Rated impulse withstand voltage (Uimp)

6000 V AC

Connection type

Front fixing; Screw connection

Mounting method

Front fastening

Rated conditional short-circuit current (Iq)

1 kA

Short-circuit protection

PKZM0-10/FAZ-B6/1, Contacts, Max. short-circuit protective device, Fuseless

Short-circuit protection rating

Max. 10 A gG/gL, Fuse, Contacts

Terminal capacity (flexible with ferrule)

0.5 - 1.5 mm²

Terminal capacity (solid)

0.75 - 2.5 mm²

Terminal capacity (stranded)

0.5 - 2.5 mm²

Country of origin

Germany

HS Code

8538.90
