Eaton

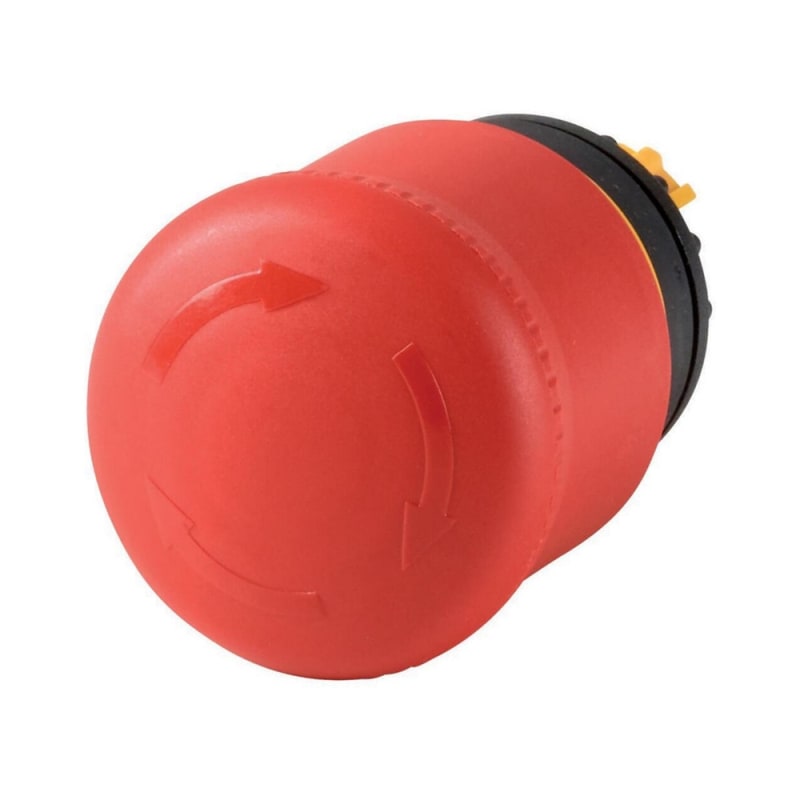

Emergency Stop Button Push/turn
Part numberM22-PVTEAN / GTIN4015082634674HS code8538.90
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-PVT Emergency stop. Overlistsikker in h.h.t. ISO 13 850 / EN 418. pressure/pull (PV) or push/turn (PVT).
Technical Specifications
- Manufacturer part number (MPN)
- M22-PVT EAN / GTIN: 4015082634674 Sales unit: pcs Package quantity: 5 pcs Eaton catalogue number: 263467 Depth: 38 mm Height: 70 mm Width: 38 mm Weight: 0.045 kg Compliances: CE Marked Certifications: UL 508; IEC 60947-5; EN 60947-5; CSA Std. C22.2 No. 14-05; CSA Std. C22.2 No. 94-91; VDE; CSA; CSA File No.: 012528; CSA-C22.2 No. 94-91; UL; UL Category Control No.: NKCR; VDE 0660; CSA Class No.: 3211-03; CSA-C22.2 No. 14-05; IEC/EN 60947-5; CE; IEC/EN 60947; UL File No.: E29184; DNV; GL; LR Catalog Notes: Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11 Actuating force: 50 N Actuator color: Red Actuator diameter: 38 mm Actuator function: Turn-to-release; Switching function latching Color: Red Design: Mushroom-shaped; Classical Illumination: Non-illuminated Unlocking method: Turn-release Ambient operating temperature - max: 70 °C Ambient operating temperature - min: -25 °C Climatic proofing: Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30 Connection to SmartWire-DT: No Base color: Yellow Bezel color: Other Bezel material: Other Features: Tamper-proof (according to ISO 13850, EN 418) RAL-number: 3000 Degree of protection: IP67/IP69K; NEMA 4X, 13 Lifespan, mechanical: 100,000 Operations Mounting position: As required Opening diameter: 22.5 mm Operating frequency: 600 Operations/h Product category: RMQ-Titan Size: Front dimensions: 35 mm Suitable for: Emergency stop Type: Controlled stop pushbutton/emergency-stop button Hole diameter: 22 mm Colour button: Red Suitable for lighting: No Spring-return: No Diameter cap: 38 mm Suitable for emergency stop: Yes Type of button: Flat Colour front ring: Chrome With lighting: No material front ring: Plastic With front ring: No Construction type lens: Round Switching function latching: Yes Country of origin: Hungary
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082634674
- SAP 1000051109
- Code 8861027
Product Documentation
Document preview: EMERGENCY STOP BUTTON TRYKK/VRI (M22-PVT) — Specification Data Sheet (OEM)
