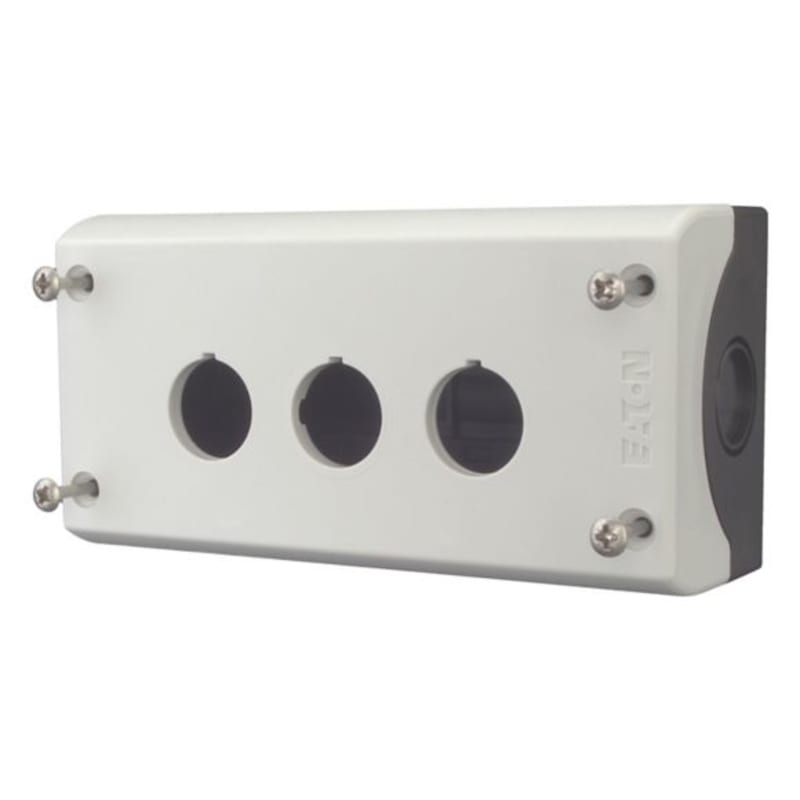

BOX 3 HOLE (M22-I3)

Eaton BOX 3 HOLE (M22-I3) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 216538; Depth: 80 mm; Height: 56 mm; Width: 153 mm; Weight: 0.237 kg.

Manufacturer part number (MPN)

M22-I3

EAN / GTIN

4015082165383

Sales unit

pcs

Eaton catalogue number

216538

Depth

80 mm

Height

56 mm

Width

153 mm

Weight

0.237 kg

Certifications

CSA; CSA-C22.2 No. 94-91; CSA File No.: 012528; UL Category Control No.: NKCR; CE; UL File No.: E29184; CSA Class No.: 3211-03; UL 508; IEC/EN 60947-5; CSA-C22.2 No. 14-05; UL

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Connection to SmartWire-DT

No

Enclosure color

Gray

Enclosure material

Plastic

Enclosure type

Surface mounting housing

Fitted with

High-grade steel screws

Knockouts

2 x M20/25 (cable entry knockout at the side, 1 x each side); 2 x M20 (cable entry knockouts at the top); 2 x M20 (cable entry knockouts at the rear)

Number of command positions

3

Number of locations

3

RAL-number

7035

Degree of protection

NEMA 13; IP67/IP69K

Opening diameter

22.5 mm

Diameter openings

22 mm

Colour housing cover

Grey

Housing material

Plastic

Construction type housing

Surface mounted housing

Country of origin

Germany

HS Code

8538.10

• EAN 4015082165383
• SAP 1000025032
• Code 8499360
