Eaton

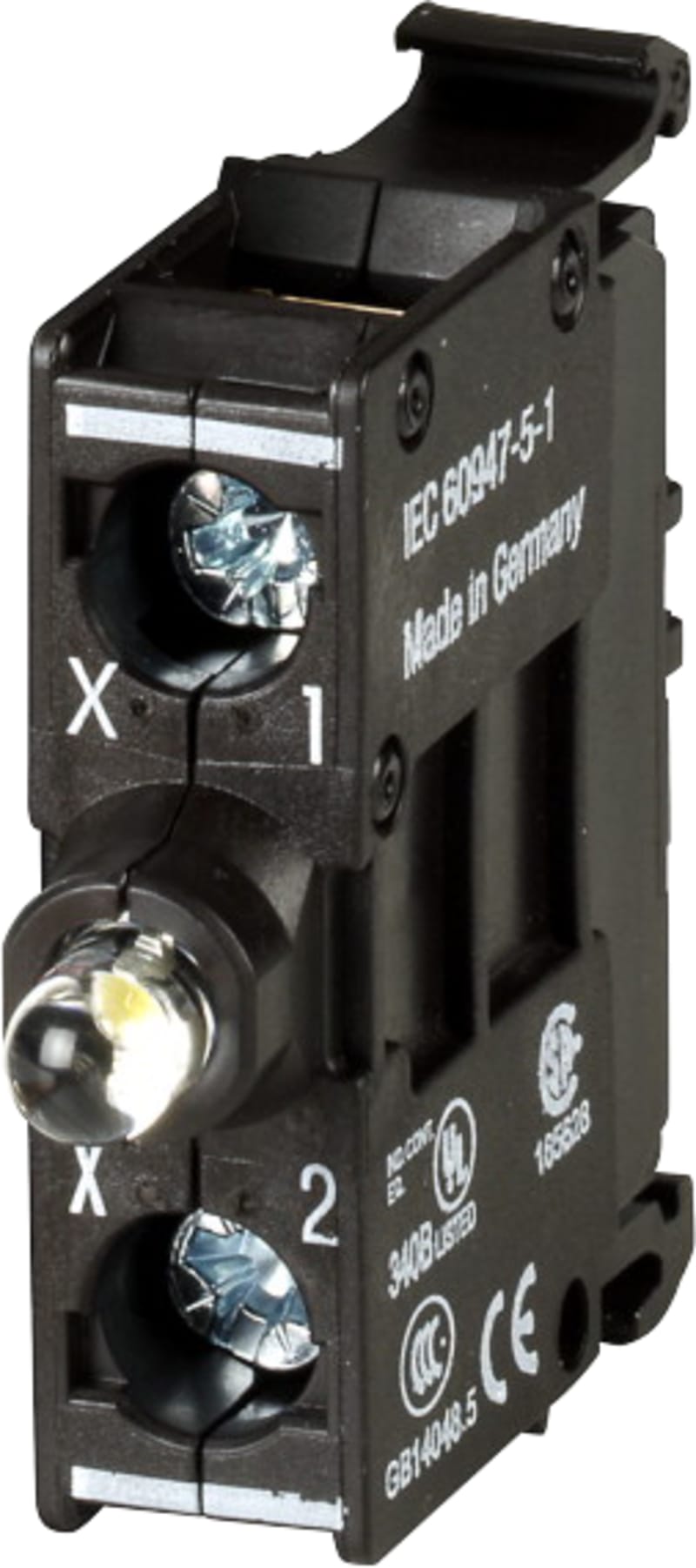

LED-Element BLUE 85-264V Bottom
Part numberM22-LEDC230-BEAN / GTIN4015082180607HS code8541.41
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton LED-Element BLUE 85-264V Bottom (part number M22-LEDC230-B) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 20 pcs; Eaton catalogue number: 218060; Depth: 38 mm; Height: 10 mm; Width: 37 mm.
Technical Specifications
- Manufacturer part number (MPN)
- M22-LEDC230-B
- EAN / GTIN
- 4015082180607
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Eaton catalogue number
- 218060
- Depth
- 38 mm
- Height
- 10 mm
- Width
- 37 mm
- Weight
- 0.011 kg
- Compliances
- CE Marked
- Certifications
- UL 508; IEC 60947-5; CSA Std. C22.2 No. 14-05; EN 60947-5; CSA Std. C22.2 No. 94-91; VDE; CSA; CE; CSA-C22.2 No. 94-91; CSA File No.: 012528; CSA-C22.2 No. 14-05; IEC 60947-5-1; CSA Class No.: 3211-03; IEC/EN 60947-5; UL Category Control No.: NKCR; UL File No.: E29184; UL
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 80 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- No
- Static heat dissipation, non-current-dependent Pvs
- 1 W
- Power consumption
- Max. 0.33 W
- Rated insulation voltage (Ui)
- 500 V
- Rated operational current (Ie) - max
- 15 mA
- Rated operational current (Ie) - min
- 5 mA
- Rated operational voltage (Ue) at AC - max
- 264 V
- Rated operational voltage (Ue) at AC - min
- 85 V
- Fitted with
- Diode; Light source
- Light color
- Blue
- Degree of protection
- IP20
- Lifespan, electrical
- 100,000 h (at 25°C, according to EN60064)
- Operating torque
- 0.8 Nm
- Overvoltage category
- III
- Pollution degree
- 3
- Rated impulse withstand voltage (Uimp)
- 6000 V AC
- Type
- LED lamp
- Voltage type
- AC
- Connection type
- Base fixing
- Mounting position
- As required
- Terminal capacity (solid)
- 0.75 - 2.5 mm²
- Terminal capacity (stranded)
- 0.5 - 2.5 mm²
- Lamp holder
- None
- Transformer integrated
- No
- With integrated voltage decreasing resistor
- No
- With integrated diode
- Yes
- Colour light source
- Blue
- Lamp type
- LED
- Type of fastening
- Floor fastening
- With light source
- Yes
- Connection type auxiliary circuit
- Screw connection
- Rated voltage Ue at AC 50 Hz
- 85–264 V
- Rated voltage Ue at AC 60 Hz
- 85–264 V
- Voltage type for actuating
- AC
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8541.41
Cross References
- EAN 4015082180607
- SAP 1000003574
- Code 822913
Product Documentation
Document preview: LED-ELEMENT BLUE 85-264V BOTTOM (M22-LEDC230-B) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Support bracket for std. rail (HSH-CI)
Eaton
P3 Main switch, 80 A,, Form M4/SVB-SW
1414056
Eaton
Copper spacer (XNNCD)
Eaton
Panel Frame HxB=1560 x 800mm
BP-MF-800/15
Eaton
Mounting Kit PDE3 H H300 B800 xE Basic
EP-502388
Eaton
Of/On-switch,P1-40/Z
Eaton
Top/bottom Cut-out BxD=1000X249 (BP-TBP-1000-CE-W)
Eaton

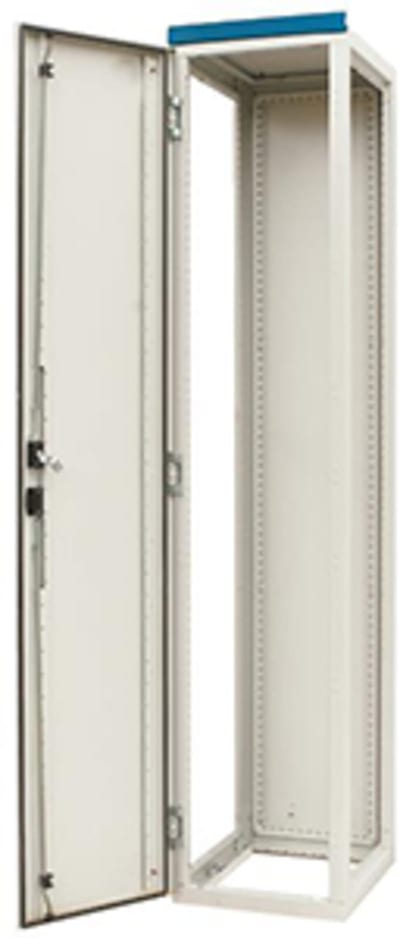

Cabinet H×W×D 1800X800X500 IP55
