Eaton

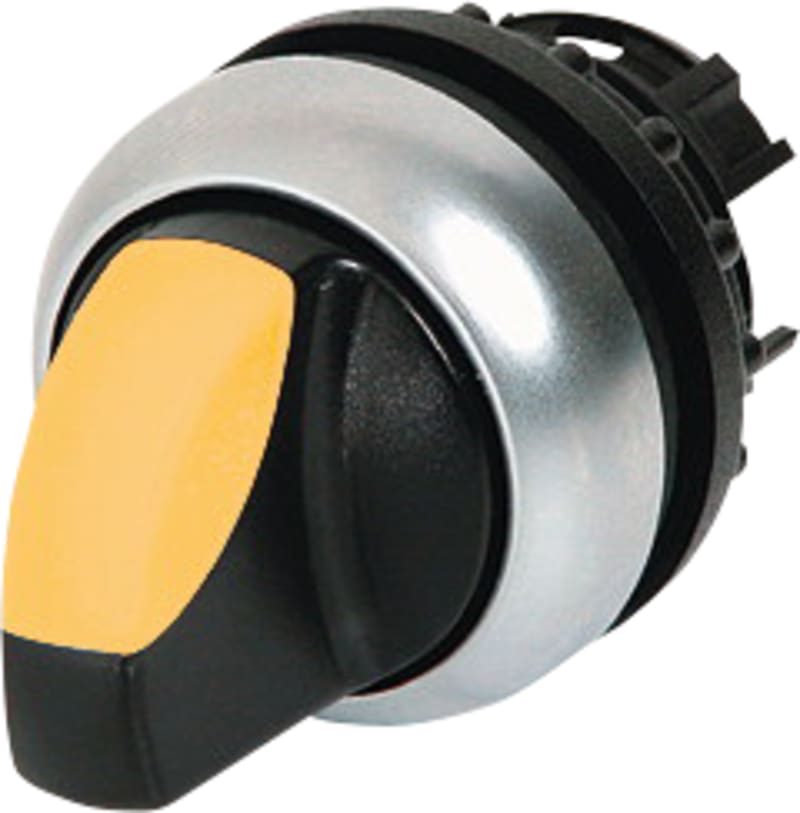

Selector switch with LIGHT Yellow 0-1 FAST
Part numberM22-WRLK-YEAN / GTIN4015082168292HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-WRLK-Y Selector switch with Light Yellow 0-1 Fast.
Technical Specifications
- Manufacturer part number (MPN)
- M22-WRLK-Y
- EAN / GTIN
- 4015082168292
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 216829
- Depth
- 46 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.013 kg
- Compliances
- CE Marked
- Certifications
- UL 508; CSA Std. C22.2 No. 14-05; EN 60947-5; IEC 60947-5; CSA Std. C22.2 No. 94-91; VDE; UL File No.: E29184; CSA Class No.: 3211-03; CSA-C22.2 No. 94-91; IEC/EN 60947; VDE 0660; CSA-C22.2 No. 14-05; IEC/EN 60947-5; UL Category Control No.: NKCR; CE; CSA; CSA File No.: 012528; UL; DNV; GL; LR
- Actuator color
- Black
- Actuator function
- Switching function latching; Maintained
- Actuator type
- Toggle
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- With thumb-grip; Classical
- Fitted with
- Front ring
- Functions
- Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
- Indicator color
- Yellow
- Lens type
- Round
- Number of switch positions
- 2
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- With SWD-RMQ connections; Yes
- Accessories
- Thumb grip
- Degree of protection
- NEMA 4X, 13
- Degree of protection (front side)
- IP66
- Lifespan, mechanical
- 100,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 2000 Operations/h
- Operating torque
- 0.3 Nm
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Size
- Front diameter: 29.7 mm
- Suitable for
- Illumination
- Switching angle
- 60 °
- Type
- Illuminated selector switch actuator
- Hole diameter
- 22.5 mm
- Suitable for lighting
- Yes
- Spring-return
- No
- Degree of protection (IP), front side
- IP66
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Type of control element
- Wing knob
- Colour indicator light cap
- Yellow
- Colour control element
- Black
- Switching function latching
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082168292
- SAP 1000043548
- Code 8819354
Product Documentation
Document preview: VENDER M/LYS YELLOW 0-1 FAST (M22-WRLK-Y) — Specification Data Sheet (OEM)
