Eaton

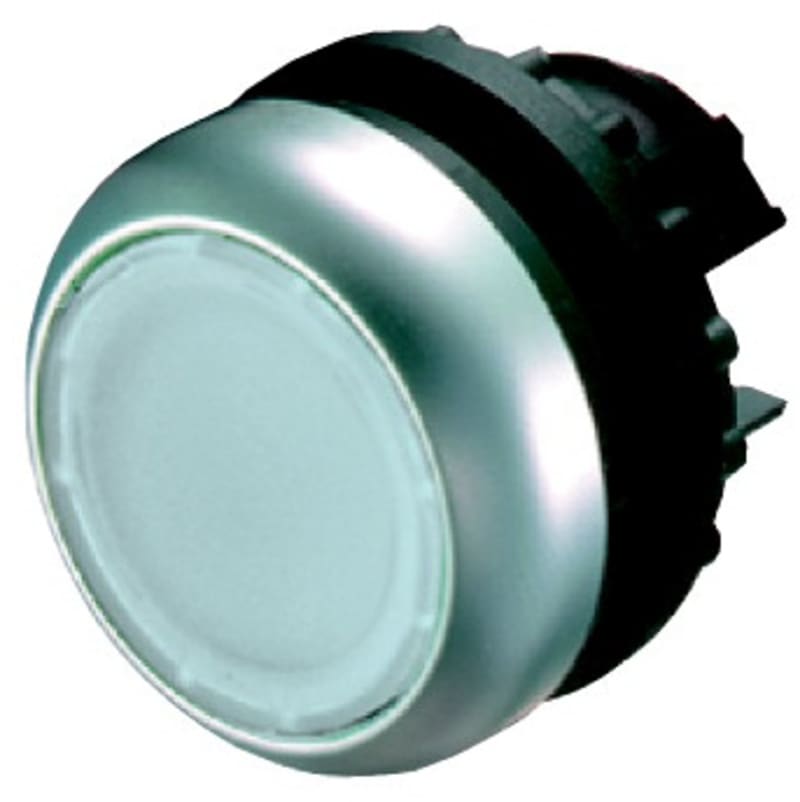

Illuminated Push Button White FLAT IP66
Part numberM22-DL-WEAN / GTIN4015082169220HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-DL-W Illuminated Push Button White Flat IP66.
Technical Specifications
- Manufacturer part number (MPN)
- M22-DL-W
- EAN / GTIN
- 4015082169220
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 216922
- Depth
- 30 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.01 kg
- Compliances
- CE Marked
- Certifications
- UL 508; CSA Std. C22.2 No. 94-91; IEC 60947-5; CSA Std. C22.2 No. 14-05; EN 60947-5; VDE; VDE 0660; CE; CSA; CSA Class No.: 3211-03; CSA File No.: 012528; CSA-C22.2 No. 94-91; IEC/EN 60947; IEC/EN 60947-5; UL; CSA-C22.2 No. 14-05; UL File No.: E29184; UL Category Control No.: NKCR; DNV; GL; LR
- Actuating force
- 5 N
- Actuator color
- White
- Actuator function
- Momentary; Spring-return
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- Flush; Classical
- Fitted with
- Front ring
- Inscription
- Blank
- Lens type
- Round
- Number of command positions
- 1
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- With SWD-RMQ connections; Yes
- Degree of protection
- IP66; IP69K; NEMA 12; NEMA 13; NEMA 4X; NEMA 3R; IP67
- Degree of protection (front side)
- IP67/IP69K; NEMA 4X
- Lifespan, mechanical
- 5,000,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 3600 Operations/h
- Product category
- RMQ-Titan
- Size
- Front dimensions: 22 x 22 mm
- Suitable for
- Illumination
- Type
- Illuminated pushbutton actuator
- Hole diameter
- 22 mm
- Colour button
- White
- Suitable for lighting
- Yes
- Spring-return
- Yes
- Labelled
- No
- Type of button
- Flat
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP67/IP69K
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082169220
- SAP 1000051281
- Code 8534562
Product Documentation
Document preview: ILLUMINATED PUSH BUTTON WHITE FLAT IP66 (M22-DL-W) — Specification Data Sheet (OEM)
More from Eaton
Eaton

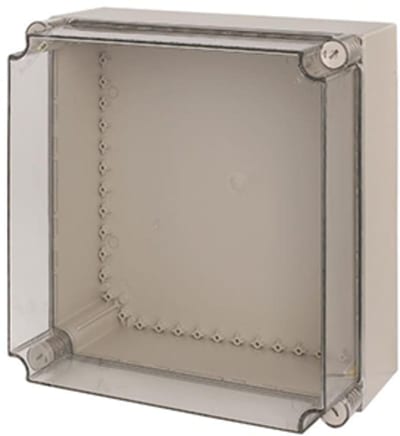

Enclosure H×W×D=375X375X225MM (CI44X-200-NA)
Eaton

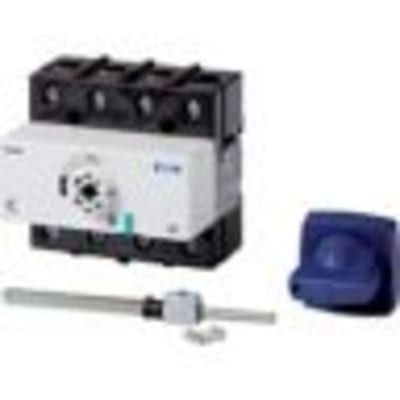

Switch-disconnector DMM-125/1+CM
Eaton
Eaton FAZ-K1/1N Miniature Circuit Breaker — 1P+N, Type K, 1 A, 15 kA
Eaton
DE1 1~/3~240V 7 A 1,5 kW/2HP
DE1-127D0FN-N20N
Eaton
Eaton NZMH2-4-PX250/VAR Molded-Case Circuit Breaker 4-Pole 250A 150KA
Eaton

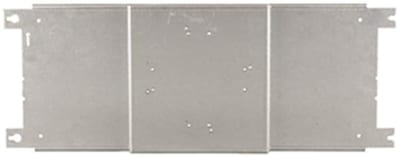

Mounting Set for NZM1, Vertical, H × W 300 × 400 mm, with Cover
BPZ-NZM1/MSW-400-MV-W
Eaton

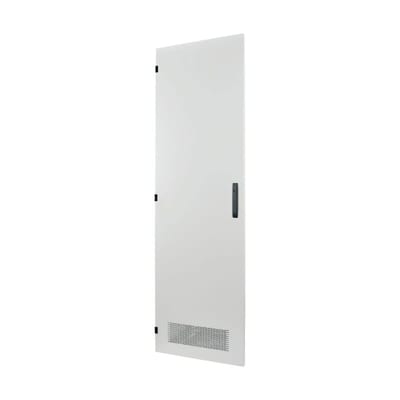

Door IP30 vent right-hand xE M H2000 B800
XSDMRV2008
Eaton

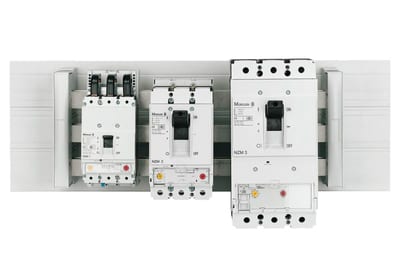

Termineringsdeksel SASY NZM2
