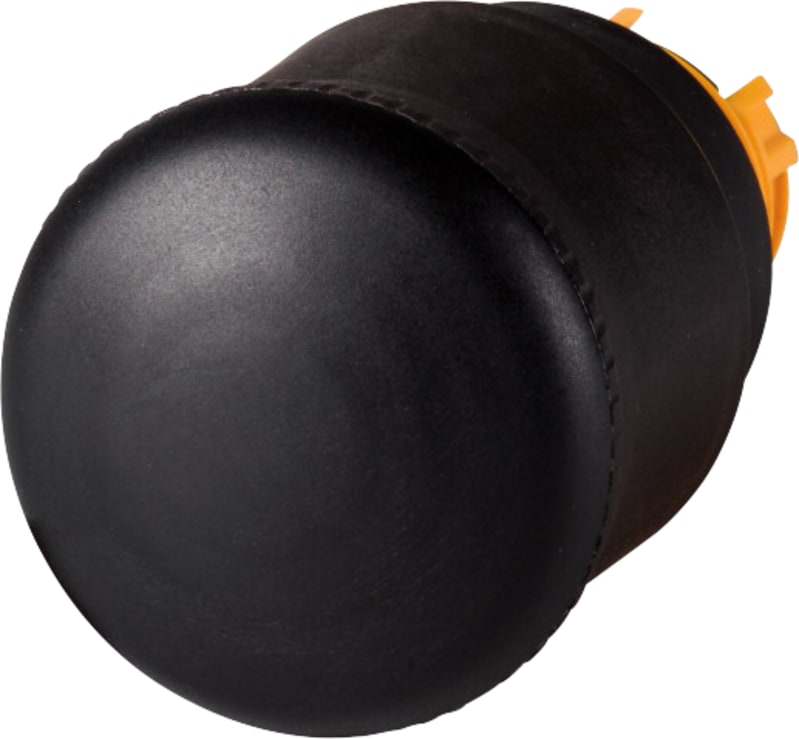

Switch Black Pressure/pull

Eaton M22S-PV Emergency stop. Overlistsikker in h.h.t. ISO 13 850 / EN 418, pressure/pull (PV) or push/turn (PVT).

Manufacturer part number (MPN)

M22S-PV EAN / GTIN: 4015082255282 HS code: 8536.90 Sales unit: pcs Package quantity: 5 pcs Eaton catalogue number: 225528 Depth: 38 mm Height: 70 mm Width: 38 mm Weight: 0.039 kg Compliances: CE Marked Certifications: CSA Std. C22.2 No. 14-05; IEC 60947-5; EN 60947-5; CSA Std. C22.2 No. 94-91; UL 508; VDE; VDE 0660; IEC/EN 60947; IEC/EN 60947-5; CSA Class No.: 3211-03; UL; UL File No.: E29184; CE; CSA File No.: 012528; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; UL Category Control No.: NKCR; CSA; DNV; GL; LR Actuating force: 50 N Actuator color: Black Actuator diameter: 38 mm Actuator function: Pull-to-release Color: Black Design: Mushroom-shaped; Classical Illumination: Non-illuminated Unlocking method: Pull-release Force for positive opening - min: 0 N Ambient operating temperature - max: 70 °C Ambient storage temperature - max: 80 °C Ambient operating temperature - min: -25 °C Climatic proofing: Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30 Connection to SmartWire-DT: Yes; With SWD-RMQ connections Equipment heat dissipation, current-dependent Pvid: 0 W Heat dissipation capacity Pdiss: 0 W Heat dissipation per pole, current-dependent Pvid: 0 W Rated operational current for specified heat dissipation (In): 0 A Static heat dissipation, non-current-dependent Pvs: 0 W Base color: Yellow Bezel color: Other Bezel material: Other RAL-number: 9005 Degree of protection: IP66; NEMA 4X, 13 Lifespan, mechanical: 100,000 Operations Mounting position: As required Opening diameter: 22.5 mm Operating frequency: 600 Operations/h Product category: RMQ-Titan Size: Front dimensions: 35 mm Type: Emergency stop pushbutton STOP pushbutton

HS Code

8536.90

• EAN 4015082255282
• SAP 1000007179
• Code 862857
