Eaton

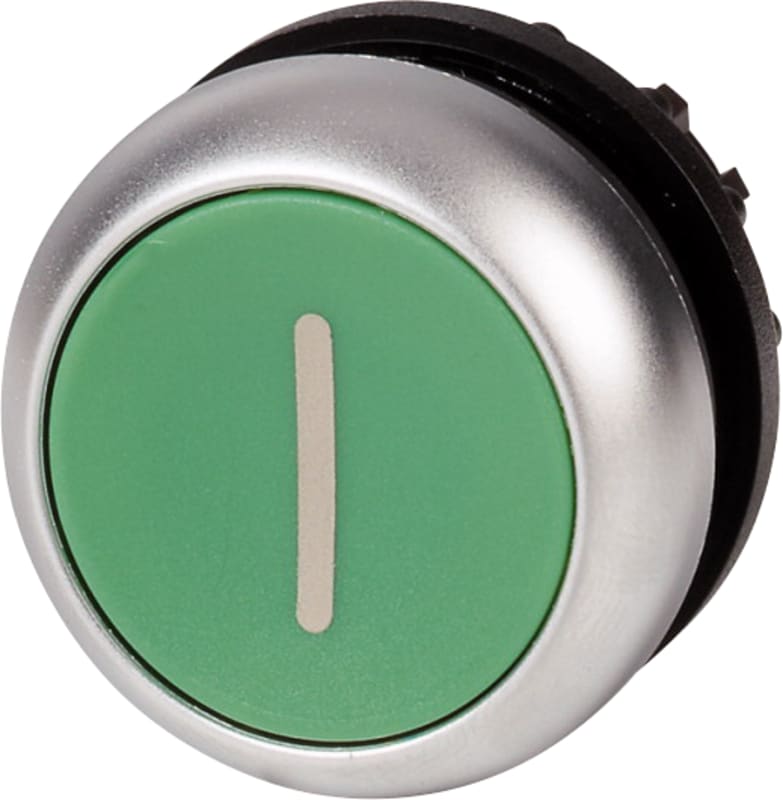

PUSH-Button Green in FLAT
Part numberM22-D-G-X1EAN / GTIN4015082166076HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-D-G-X1 Push-button Green In Flat.
Technical Specifications
- Manufacturer part number (MPN)
- M22-D-G-X1
- EAN / GTIN
- 4015082166076
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 216607
- Depth
- 30 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.009 kg
- Compliances
- CE Marked
- Certifications
- CSA Std. C22.2 No. 14-05; UL 508; CSA Std. C22.2 No. 94-91; EN 60947-5; IEC 60947-5; VDE; UL; CSA-C22.2 No. 14-05; IEC/EN 60947; CSA; CSA Class No.: 3211-03; CSA-C22.2 No. 94-91; VDE 0660; CE; UL Category Control No.: NKCR; CSA File No.: 012528; IEC/EN 60947-5; UL File No.: E29184; DNV; GL; LR
- Actuating force
- 5 N
- Actuator color
- Green
- Actuator function
- Momentary; Spring-return
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- Flat; Classical
- Features
- Labelled
- Fitted with
- Front ring
- Inscription
- Inscribed
- Lens type
- Round
- Number of command positions
- 1
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 80 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- Yes; With SWD-RMQ connections
- Degree of protection
- IP66; NEMA 12; NEMA 4X; NEMA 13; IP67; NEMA 3R; IP69K
- Degree of protection (front side)
- NEMA 4X; IP67/IP69K
- Lifespan, mechanical
- 5,000,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 3600 Operations/h
- Product category
- RMQ-Titan
- Size
- Front dimensions: 22 x 22 mm
- Type
- Pushbutton actuator
- Hole diameter
- 22 mm
- Colour button
- Green
- Suitable for lighting
- No
- Spring-return
- Yes
- Labelled
- Yes
- Type of button
- Flat
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP67/IP69K
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082166076
- SAP 1000077457
- Code 8806862
Product Documentation
Document preview: PUSH-BUTTON GREEN In FLAT (M22-D-G-X1) — Specification Data Sheet (OEM)
More from Eaton
Eaton

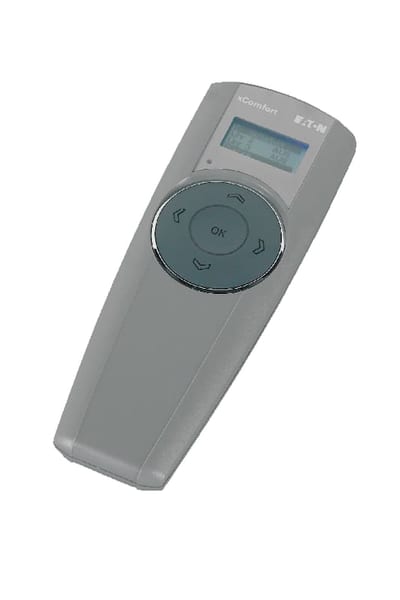

remote control M.DISPLAY 12-Can
CHSZ-12/04
Eaton

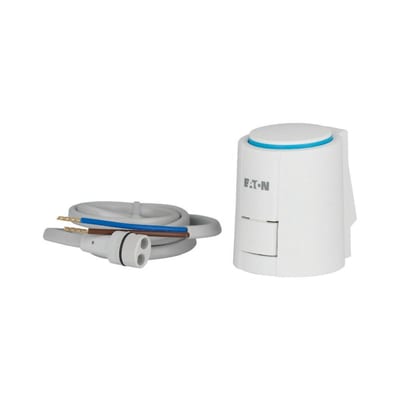

Thermoelectric Valve Actuator NC
CHVZ-01/04
Eaton

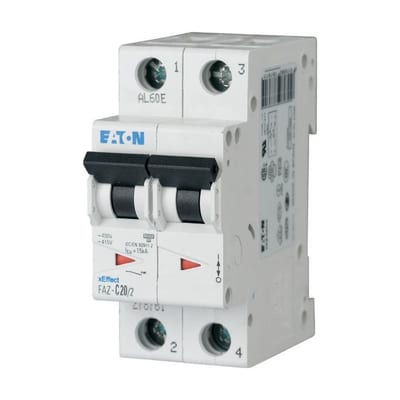

Eaton FAZ-C4/2 Miniature Circuit Breaker — 2P, Type C, 4 A, 15 kA
Eaton

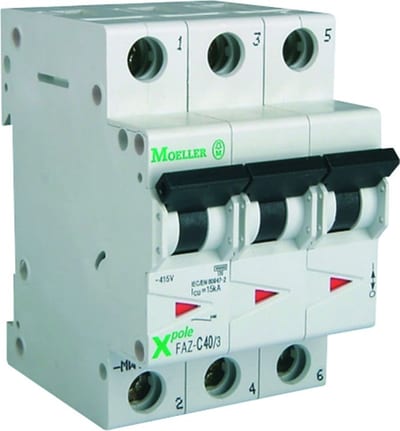

Eaton FAZ-B40/3 Miniature Circuit Breaker — 3P, Type B, 40 A, 15 kA
Eaton
Lamp Front Green FLAT IP66
M22-L-G
Eaton
Eaton FAZ-C50/4 Miniature Circuit Breaker — 4P, Type C, 50 A, 15 kA
Eaton

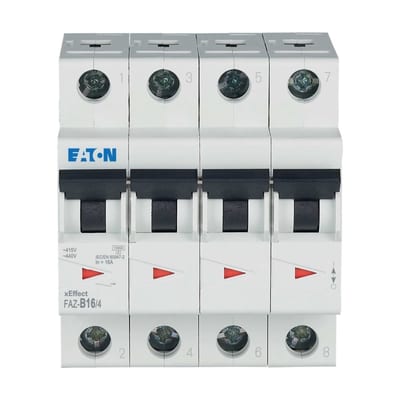

Eaton FAZ-B16/4 Miniature Circuit Breaker — 4P, Type B, 16 A, 15 kA
Eaton

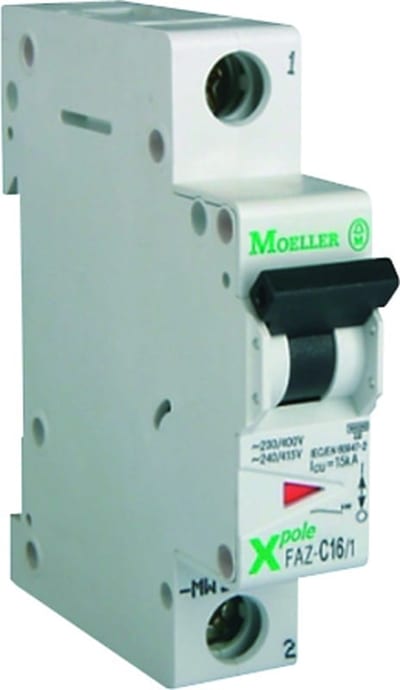

Eaton FAZ-B10/1 Miniature Circuit Breaker — 1P, Type B, 10 A, 15 kA
