Eaton

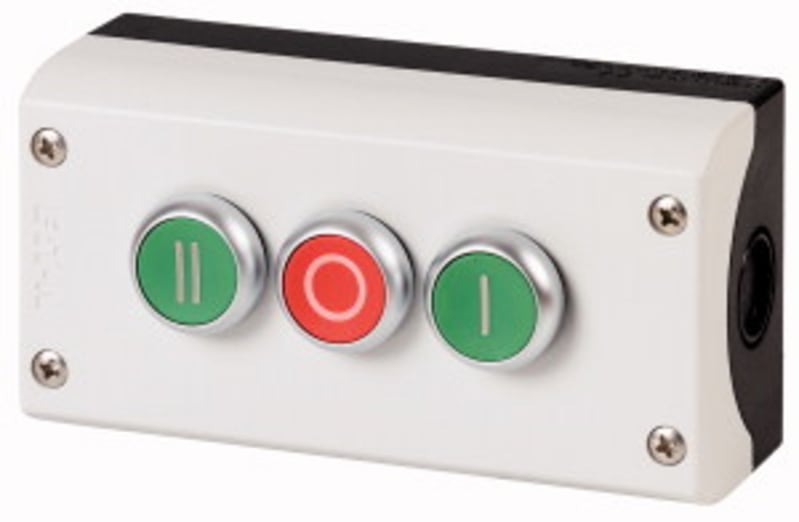

BOX with 3 Buttons 3S+3TO
Part numberM22-I3-M1EAN / GTIN4015082165321HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton BOX with 3 Buttons 3S+3TO (part number M22-I3-M1) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 216532; Depth: 80 mm; Height: 70 mm; Width: 153 mm; Weight: 0.333 kg.
Technical Specifications
- Manufacturer part number (MPN)
- M22-I3-M1
- EAN / GTIN
- 4015082165321
- Sales unit
- pcs
- Eaton catalogue number
- 216532
- Depth
- 80 mm
- Height
- 70 mm
- Width
- 153 mm
- Weight
- 0.333 kg
- Certifications
- IEC/EN 60947; CE; VDE 0660; CSA-C22.2 No. 94-91; CSA Class No.: 3211-03; UL; UL 508; CSA File No.: 012528; UL File No.: E29184; CSA-C22.2 No. 14-05; UL Category Control No.: NKCR; CSA; IEC/EN 60947-5
- Catalog Notes
- Contacts with safety function, by positive opening to IEC/EN 60947-5-1
- Actuating force
- 5 N
- Actuator color
- Green, red
- Actuator function
- Momentary
- Actuator travel and actuation force (DIN EN 60947-5-1)
- 4.8 mm
- Bezel color
- Titanium
- Design
- Enclosure
- Enclosure color
- Gray
- Enclosure material
- Plastic
- Inscription
- Inscribed
- Knob travel
- 5.7 mm
- Knockouts
- 2 x M25/20 (cable entry knockouts at the side); 2 x M20 (cable entry knockouts at the base)
- Number of command positions
- 3
- Number of locations
- 3
- RAL-number
- 7035
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- No
- Heat dissipation per pole, current-dependent Pvid
- 0.11 W
- Rated operational current for specified heat dissipation (In)
- 6 A
- Rated control supply voltage (Us) at AC, 50 Hz - max
- 500 V
- Rated control supply voltage (Us) at AC, 50 Hz - min
- 115 V
- Rated control supply voltage (Us) at AC, 60 Hz - max
- 500 V
- Rated control supply voltage (Us) at AC, 60 Hz - min
- 115 V
- Rated control supply voltage (Us) at DC - max
- 220 V
- Rated control supply voltage (Us) at DC - min
- 24 V
- Degree of protection
- IP67/IP69K; NEMA 4X, 13
- Lifespan
- 5,000,000 mechanical Operations
- Mounting position
- As required
- Operating frequency
- 3600 Operations/h
- Product category
- RMQ-Titan
- Size
- Front dimensions: 153 x 80 mm
- Type
- Pushbutton actuator
- Rated conditional short-circuit current (Iq)
- 1 kA
- Housing colour
- Grey
- Colour housing cover
- Grey
- Suitable for emergency stop
- No
- Housing material
- Plastic
- Rated control supply voltage AC 50 Hz
- 115–500 V
- Rated control supply voltage AC 60 Hz
- 115–500 V
- Rated control supply voltage DC
- 24–220 V
- Explosion-tested version
- No
- Number of push buttons
- 3
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 2
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082165321
- SAP 1000074184
- Code 8564798
Product Documentation
Document preview: BOX M/3 Buttons 3S+3TO (M22-I3-M1) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Step Switch 1P, 12A (T0-2-8241/EZ)
Eaton
Eaton FAZT-C25/3N Miniature Circuit Breaker — 3P+N, Type C, 25 A, 25 kA
Eaton
Eaton IZMX40B3-V25W-1
Eaton
DIN rail tower, adjustable
BPZ-TA/2
Eaton
Rotary switch with light, Flat Front (M30C-FWLKV-Y)
Eaton
Eaton NZM2/3-XU2A24AC
Eaton
Contactor DILM32-32(RDC24)
Eaton

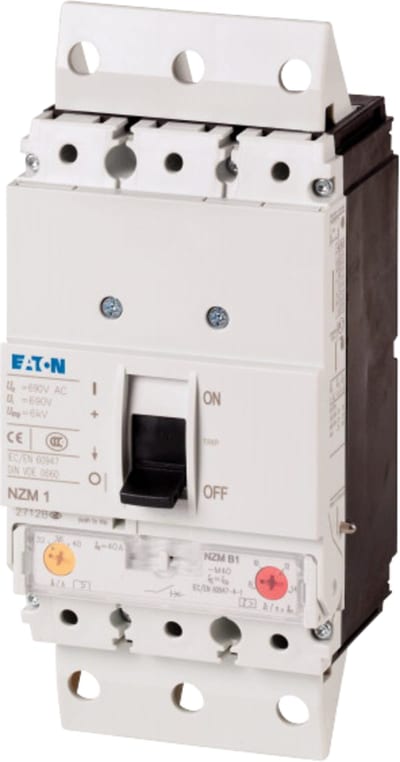

Eaton NZMN1-M63-SVE
