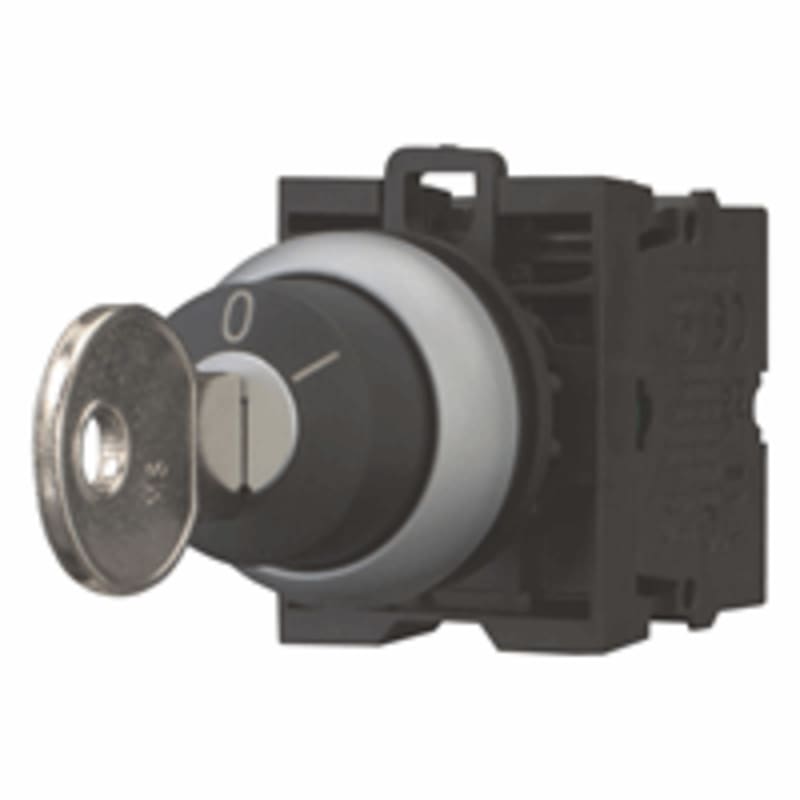

Complete KEY Switch 1S+1TO
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Complete KEY Switch 1S+1TO (part number M22-WRS/K11) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 5 pcs; Eaton catalogue number: 216517; Depth: 130 mm; Height: 30 mm; Width: 30 mm.
Technical Specifications
- Manufacturer part number (MPN)
- M22-WRS/K11
- EAN / GTIN
- 4015082165178
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 216517
- Depth
- 130 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.055 kg
- Certifications
- CSA Class No.: 3211-03; CSA file No. 012528; DNV; GL; IEC/EN 60947; IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE marking; LR; UL Category Control No.: NKCR; UL File No.: E29184; UL Listed; CSA certified; VDE 0660
- Actuator color
- Black
- Actuator type
- Key
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- Classical
- Electric connection type
- Screw connection
- Number of switch positions
- 2
- Ambient operating temperature - max
- 70 °C
- Heat dissipation per pole, current-dependent Pvid
- 0.11 W
- Degree of protection
- IP66; NEMA 4X
- Opening diameter
- 22.5 mm
- Switching angle
- 60 °
- Hole diameter
- 22.5 mm
- Colour button
- Black
- Suitable for lighting
- No
- Spring-return
- No
- Colour front ring
- Titanium
- Type of electric connection
- Screw connection
- With light source
- No
- Material front ring
- Plastic
- With front ring
- No
- Type of control element
- Key
- Switching function latching
- No
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082165178
- SAP 1000054474
- Code 8828868
Product Documentation
More from Eaton
Eaton

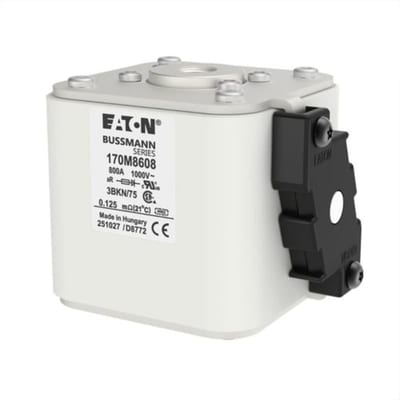

Fuse 800A 1000V 3BKN/75 AR UR
1606822
Eaton

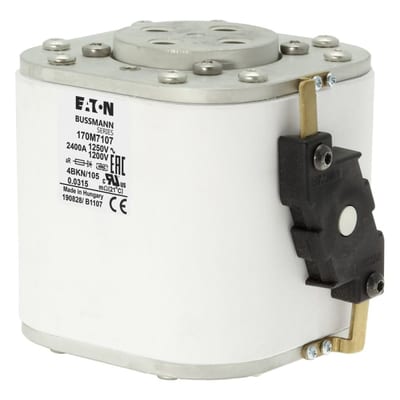

High-speed fuse 2400A 1250 VAC aR
170M7107
Eaton

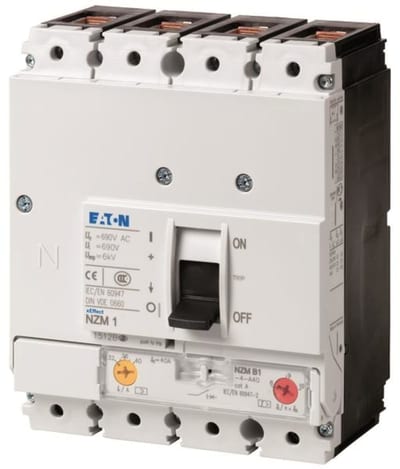

Eaton NZMB1-4-A80 Molded-Case Circuit Breaker 4-Pole 80A 25KA
Eaton

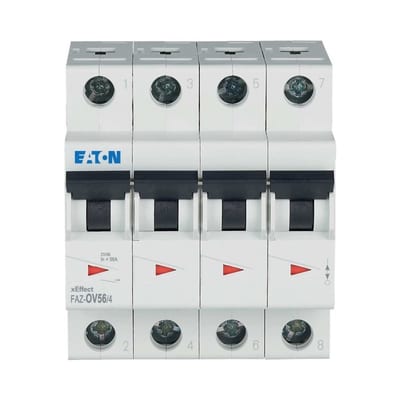

Eaton FAZ-OV56/4 Miniature Circuit Breaker — 4P, OV, 56 A, 15 kA
Eaton

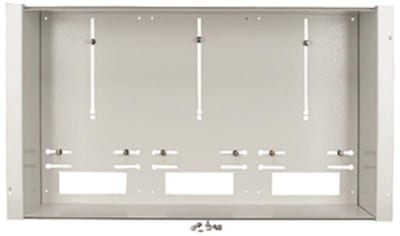

Meter Panel 4 mustlere xE H400 B1000
BPZ-MT-1000/400-4
Eaton
Protection IP2X NZM3-XIPA
Eaton

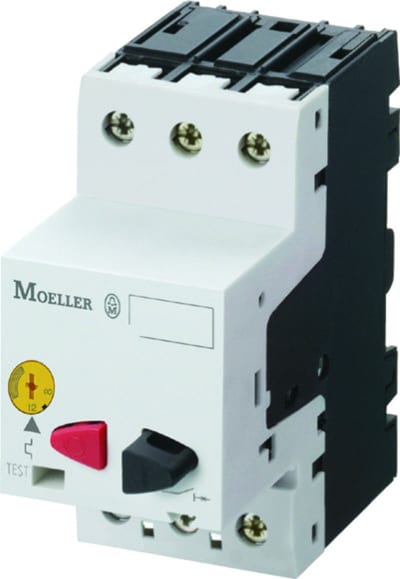

Motor PROTECTIONBR.2,5-4A PUSH-Button
PKZM01-4
Eaton

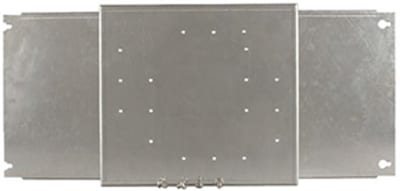

Mounting plate NZM1X V xE B600
