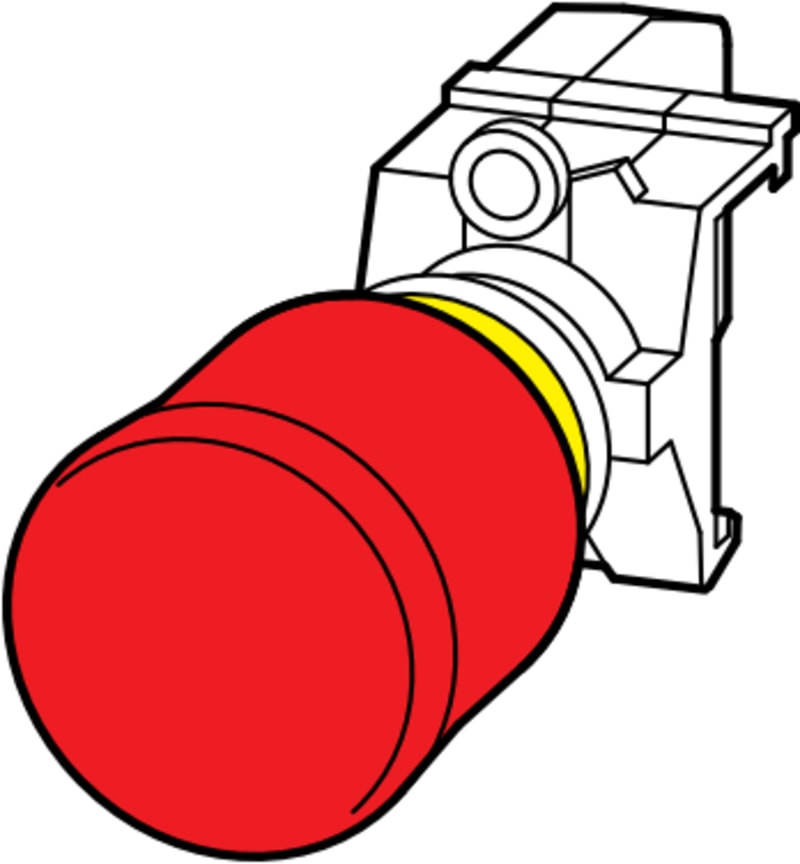

Complete Emergency Stop Push/Pull 1 NO 1 NC

Eaton M22-PV/K11 complete emergency-stop pushbutton, push/pull actuation with 1 normally open and 1 normally closed contact. Red mushroom actuator, Ø38 mm, pull-to-release, tamper-proof per ISO 13850 / EN 418. IP66 and NEMA 4X, 13.

Manufacturer part number (MPN)

M22-PV/K11 EAN / GTIN: 4015082165161 Sales unit: pcs Package quantity: 5 pcs Eaton catalogue number: 216516 Depth: 90 mm Height: 38 mm Width: 38 mm Weight: 0.062 kg Certifications: IEC/EN 60947-5; UL 508; UL File No.: E29184; UL; UL Category Control No.: NKCR; CSA-C22.2 No. 14-05; IEC/EN 60947; CSA; CSA Class No.: 3211-03; CSA-C22.2 No. 94-91; VDE 0660; CE; CSA File No.: 012528; DNV; GL; LR Catalog Notes: Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11 Actuating force: 50 N Actuator color: Red Actuator diameter: 38 mm Actuator function: Pull-to-release Actuator travel and actuation force (DIN EN 60947-5-1): 4.8 mm Design: Mushroom-shaped; Classical Illumination: Non-illuminated Knob travel: 5.7 mm Unlocking method: Pull-release Force for positive opening - min: 20 N Number of contacts (normally closed contacts): 1 Number of contacts (normally open contacts): 1 Ambient operating temperature - max: 70 °C Ambient operating temperature - min: -25 °C Climatic proofing: Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30 Connection to SmartWire-DT: No Heat dissipation per pole, current-dependent Pvid: 0.11 W Rated operational current for specified heat dissipation (In): 6 A Base color: Yellow Features: Tamper-proof (according to ISO 13850, EN 418) Degree of protection: IP66; NEMA 4X, 13 Lifespan, mechanical: 100,000 Operations Mounting method: Built-in Mounting position: As required Opening diameter: 22.5 mm Operating frequency: 600 Operations/h Overvoltage category: III Pollution degree: 3 Product category: RMQ-Titan Size: Front dimensions: 35 mm Type: Controlled stop pushbutton/emergency-stop button Rated conditional short-circuit current (Iq): 1 kA Number of contacts as normally closed contact: 1 Number of contacts as normally open contact: 1 With lighting: No Hole diameter: 22 mm Connection type auxiliary circuit: Screw connection Diameter cap: 38 mm Country of origin: Germany

HS Code

8536.50

• EAN 4015082165161
• SAP 1000075891
• Code 8566691
