Eaton

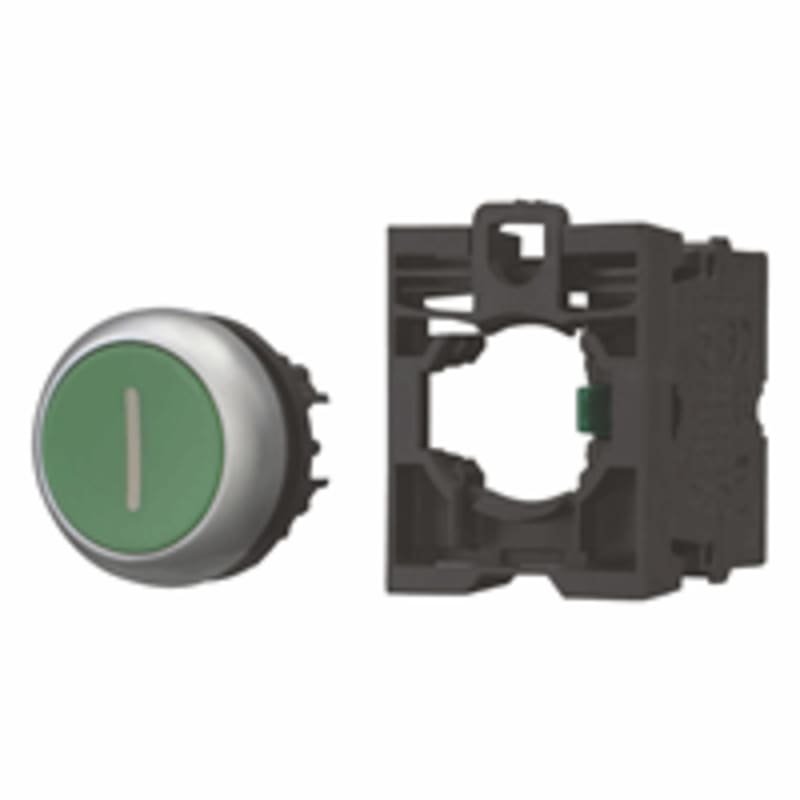

Complete PUSH-Button Green 1S
Part numberM22-D-G-X1/K10EAN / GTIN4015082165123HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-D-G-X1/K10 Complete Push-button Green 1S.
Technical Specifications
- Manufacturer part number (MPN)
- M22-D-G-X1/K10
- EAN / GTIN
- 4015082165123
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 216512
- Depth
- 70 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.026 kg
- Certifications
- CSA-C22.2 No. 94-91; IEC/EN 60947-5; UL; UL Category Control No.: NKCR; UL File No.: E29184; CE; CSA Class No.: 3211-03; CSA; CSA-C22.2 No. 14-05; IEC/EN 60947; VDE 0660; CSA File No.: 012528; UL 508; DNV; GL; LR
- Actuating force
- 5 N
- Actuator color
- Green
- Actuator diameter
- 29.7 mm
- Actuator function
- Spring-return; Momentary
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- Flat; Classical
- Electric connection type
- Screw connection
- Fitted with
- Front ring
- Inscription
- Inscribed
- Lens type
- Round
- Number of command positions
- 1
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- No
- Heat dissipation per pole, current-dependent Pvid
- 0.11 W
- Rated operational current for specified heat dissipation (In)
- 6 A
- Degree of protection
- NEMA 4X, 13; IP67/IP69K
- Lifespan, mechanical
- 1,000,000 Operations (AC operated)
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 1800 Operations/h
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Size
- Front dimensions: 22 x 22 mm
- Type
- Pushbutton actuator
- Rated conditional short-circuit current (Iq)
- 1 kA
- Hole diameter
- 22 mm
- Colour button
- Green
- Suitable for lighting
- No
- Spring-return
- Yes
- Type of button
- Flat
- Colour front ring
- Chrome
- Type of electric connection
- Screw connection
- Material front ring
- Plastic
- With front ring
- Yes
- Transparent
- No
- Construction type lens
- Round
- Switching function latching
- No
- Number of contacts as normally open contact
- 1
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082165123
- SAP 1000044608
- Code 8527273
Product Documentation
Document preview: COMPLETE PUSH-BUTTON GREEN 1S (M22-D-G-X1/K10) — Specification Data Sheet (OEM)
More from Eaton
Eaton

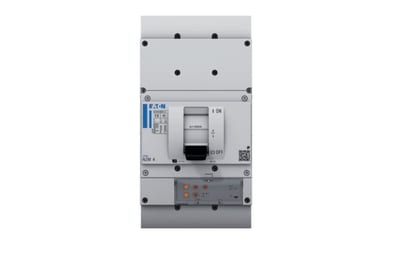

Eaton NZMH4-4-VX1600/VAR Molded-Case Circuit Breaker 4-Pole 1600A 85KA
Eaton
Sign, Emergency stop 90mm
M22-XAK3
Eaton

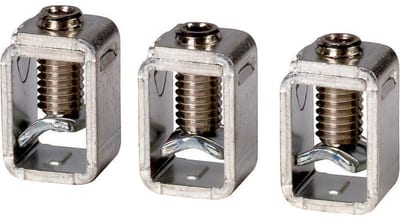

Box Terminal NZM2-250-XKC
Eaton

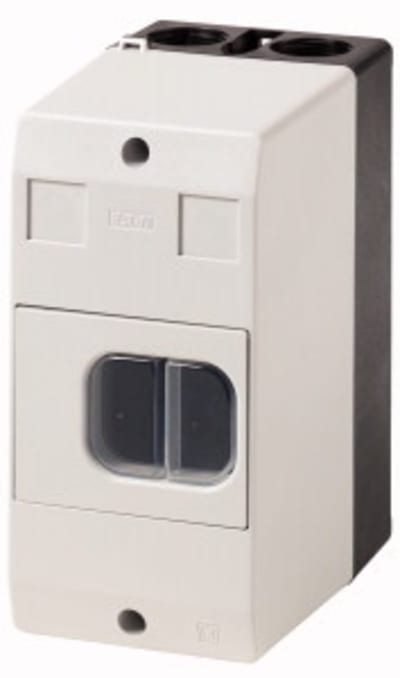

Enclosure IP65 (CI-PKZ01-G)
Eaton

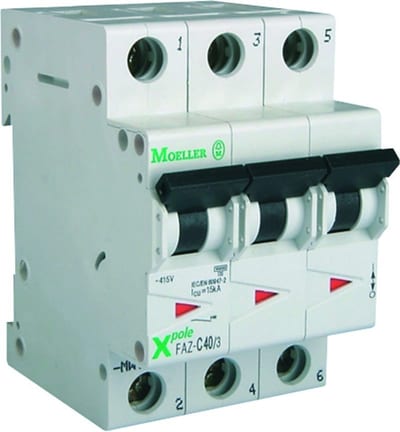

Eaton FAZ-B63/3 Miniature Circuit Breaker — 3P, Type B, 63 A, 15 kA
Eaton

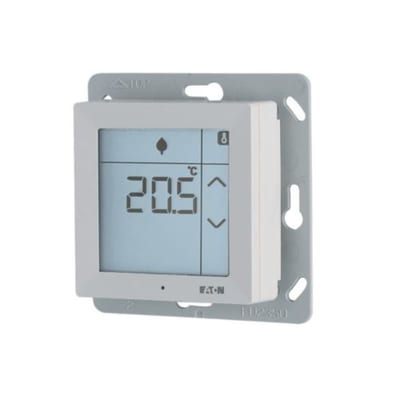

RC-Touch, alpinwhite matt u/ frame
EP-502110
Eaton

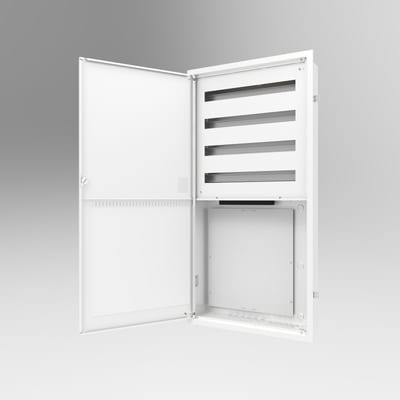

Residential Distribution Board G2 OverUnder 4-Row 150 mm
