Eaton
Foot Push Button RED with Block KAPS
Part numberFAK-R/V/KC11/IYEAN / GTIN4015082297480HS code8536.50
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton FAK-R/V/KC11/IY Foot Push Button Red With Sperre Enclosed.
Technical Specifications
- Manufacturer part number (MPN)
- FAK-R/V/KC11/IY
- EAN / GTIN
- 4015082297480
- Sales unit
- pcs
- Eaton catalogue number
- 229748
- Depth
- 100 mm
- Height
- 85 mm
- Width
- 85 mm
- Weight
- 0.32 kg
- Certifications
- IEC/EN 60947-5; CE; CSA Class No.: 3211-03; VDE 0660; IEC/EN 60947-5-5; UL 508; UL Category Control No.: NKCR; UL File No.: E29184; CSA; CSA File No.: 012528; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; UL
- Catalog Notes
- Contacts with safety function, by positive opening to IEC/EN 60947-5-1
- Actuating force
- 60 N
- Actuator color
- Red
- Actuator function
- Switching function latching; Maintained
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Number of contacts (normally closed contacts)
- 1
- Number of contacts (normally open contacts)
- 1
- Heat dissipation per pole, current-dependent Pvid
- 0.11 W
- Rated operational current for specified heat dissipation (In)
- 6 A
- Enclosure color
- Yellow; Black
- Features
- Emergency stop pushbutton; Tamper-proof (according to ISO 13850/EN 418)
- Unlocking method
- Pull-release
- Connection to SmartWire-DT
- No
- Degree of protection
- IP67/IP69K; NEMA 4X
- Lifespan, mechanical
- 100,000 Operations
- Mounting position
- As required
- Operating frequency
- 600 Operations/h
- Product category
- Foot and palm switches
- Shock resistance
- Mechanical, According to IEC/EN 60068-2-27; 15 g, Mechanical, According to IEC/EN 60068-2-27, Half-Sinusoidal shock 11 ms
- Type
- Complete device
- Colour cap
- Red
- Spring-return
- No
- Switching function latching
- Yes
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082297480
- SAP 1000061257
- Code 8873929
Product Documentation
Document preview: FOOT PUSH BUTTON RED M/BLOCK KAPS (FAK-R/V/KC11/IY) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Fuse 3000A 1500VDC 24BKN/145 AR
1606823
Eaton
Flange metal F3A (Y7-187862)
Eaton
Mounting plate NZM2 V B=600mm
120746
Eaton
Enclosure Bottom G2 SideBySide 3-Row 83 mm
EP-501126
Eaton
3+N fas TN sidebyside 10 circuits. d 110
7907760
Eaton
Mounting Kit NZM2 V H300 B400 xE Basic
EP-502305
Eaton

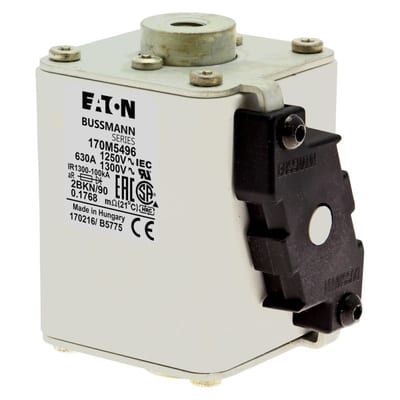

High-speed fuse 630A 1250 V AC aR
170M5496
Eaton

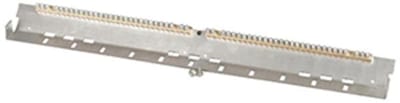

Earth Busbar KL60 (BPZ-TSB-1000/2KL60)
