ST.TRIPBL. 1-4A PKE12

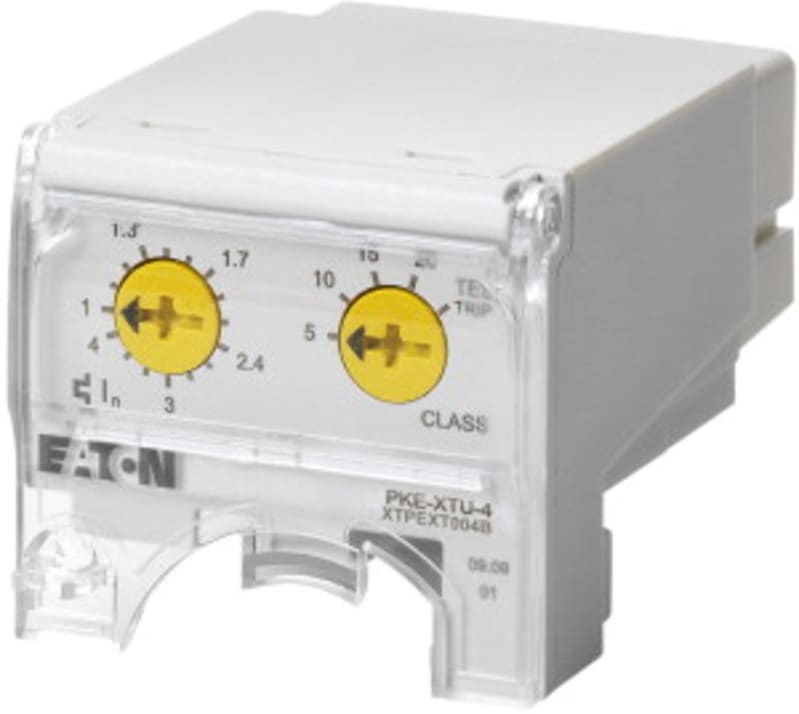

Eaton PKE-XTU-4 Trip block, 1-4A, standard, motor protection.

Manufacturer part number (MPN)

PKE-XTU-4

EAN / GTIN

4015081195343

Sales unit

pcs

Eaton catalogue number

121724

Depth

41.6 mm

Height

64.2 mm

Width

45 mm

Weight

0.086 kg

Compliances

CE Marked

Certifications

CSA Std. C22.2 No. 14-10; EN 60947-4-1; IEC 60947-4-1; UL 508; VDE; CSA Class No.: 3211-05; CSA File No.: 165628; IEC/EN 60947-4-1; CE; UL Category Control No.: NLRV; UL File No.: E36332; CSA-C22.2 No. 14-10; IEC/EN 60947; VDE 0660; CSA; UL

Catalog Notes

This is a product for Environment A (Industrial). In environment B (household) this device may cause undesirable radio interference. In this case the user may be obliged to take appropriate measures.

Shock resistance

25 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Altitude

Max. 2000 m

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

25 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Connection to SmartWire-DT

No

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Equipment heat dissipation, current-dependent Pvid

0.6 W

Heat dissipation per pole, current-dependent Pvid

0.2 W

Rated operational current for specified heat dissipation (In)

4 A

Rated frequency - max

60 Hz

Rated frequency - min

50 Hz

Rated operational current (Ie)

4 A

Rated operational voltage (Ue) at AC - max

690 V

Rated uninterrupted current (Iu)

4 A

Supply voltage at AC, 50 Hz - max

690 V

Supply voltage at AC, 50 Hz - min

690 V

Features

Phase-failure sensitivity (according to IEC/EN 60947-4-1, VDE 0660 Part 102)

Functions

Motor protection; Overload release; Motor protection for heavy starting duty

Number of poles

Three-pole

Cut-out periods - min

≤ 500 ms, main conducting paths, AC-4 cycle operation

Degree of protection

Device: IP20; Terminals: IP00

Operating frequency

60 Operations/h

Overload release current setting - max

4 A

Overload release current setting - min

1 A

Overvoltage category

III

Pollution degree

3

Product category

Accessories

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

6000 V AC

Temperature compensation

-5 - 40 °C to IEC/EN 60947, VDE 0660; -25 - 55 °C, Operating range

Used with

PKE12 and PKE32 basic devices

Voltage type

Self powered

Short-circuit release

Delayed approx. 60 ms, Trip blocks; Trip block fixed 15.5 x Ir; ± 20% tolerance, Trip blocks

Switching capacity at AC-3 (up to 690 V)

4 A

Rated permanent current Iu

4 A

Short-circuit release function

Delayed

Overload release current setting

1–4 A

External power supply required

No

With ground fault protection function

No

Rated switch current

4 A

Supply voltage AC 50 Hz

690 V

Supply voltage AC 60 Hz

690 V

End value adjustment range undelayed short-circuit release

62 A

Operating voltage AC 50 Hz

690 V

Operating voltage AC 60 Hz

690 V

Operating voltage DC

690 V

Type of motor protection

Electronic release

Voltage type for actuating

Self powered

Country of origin

Czechia

HS Code

8538.90
