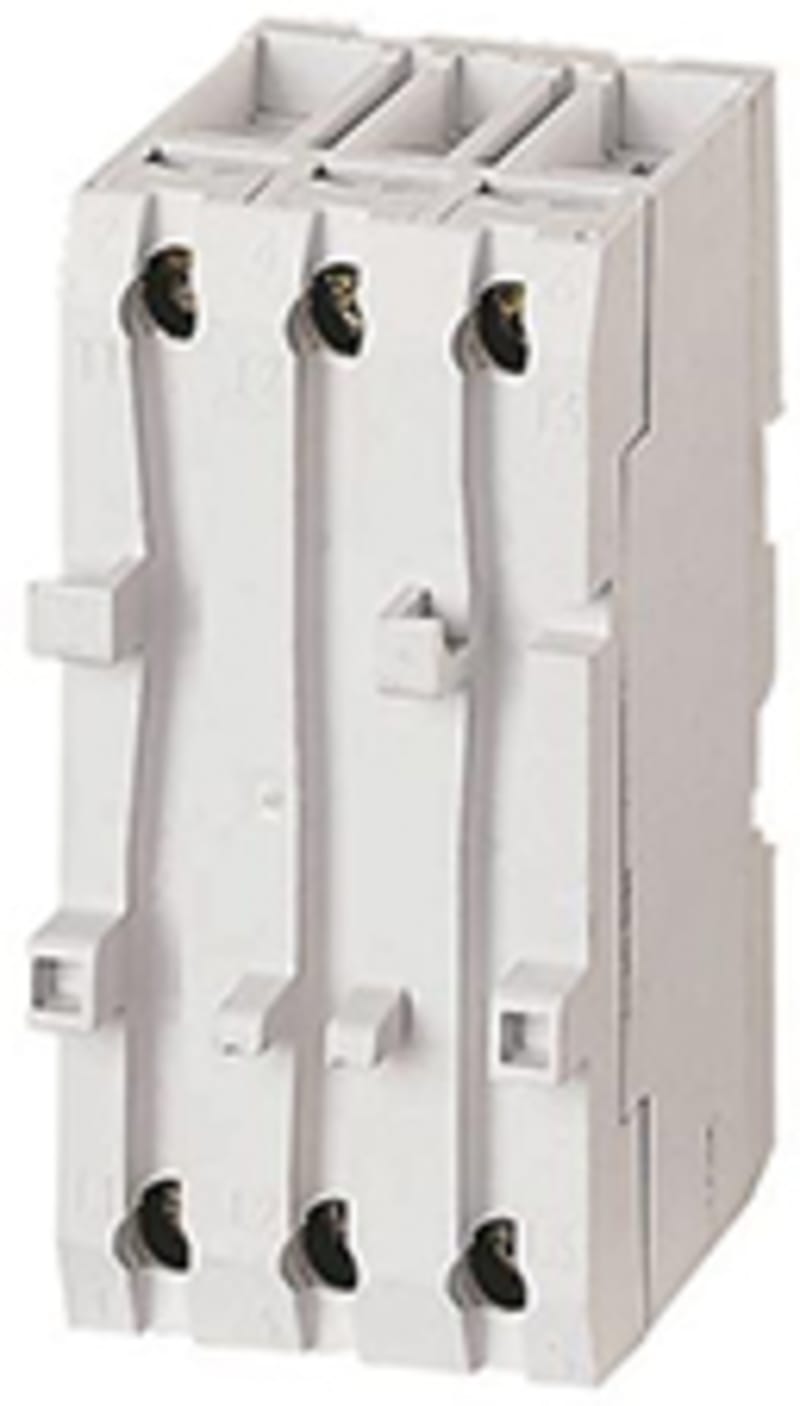

Current Limiter up to 63A PKZ0

Eaton CL-PKZ0 current limiter, 3-pole, 63 A, 400 VAC/100 kA, 690 VAC/10 kA.

Manufacturer part number (MPN)

CL-PKZ0

EAN / GTIN

4015080828815

Sales unit

pcs

Eaton catalogue number

082881

Depth

56 mm

Height

90 mm

Width

45 mm

Weight

0.201 kg

Certifications

CSA Class No.: 3211-05; UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; CE; UL Category Control No.: NLRV; CSA; CSA File No.: 165628; UL; UL File No.: E36332

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-25 °C

Rated operational current for specified heat dissipation (In)

63 A

Equipment heat dissipation, current-dependent Pvid

8.4 W

Heat dissipation per pole, current-dependent Pvid

2.8 W

Rated operational voltage

Max. 690 V; 690 V AC

Rated uninterrupted current (Iu)

63 A

Functions

Short-circuit current limiter; Can be used for individual and group protection

Mounting Method

DIN rail

Mounting position

Next to or behind the motor protective circuit breaker

Overvoltage category

III

Pollution degree

3

Product category

Accessories

Rated impulse withstand voltage (Uimp

HS Code

8536.90

• EAN 4015080828815
• SAP 1000062789
• Code 8891892
