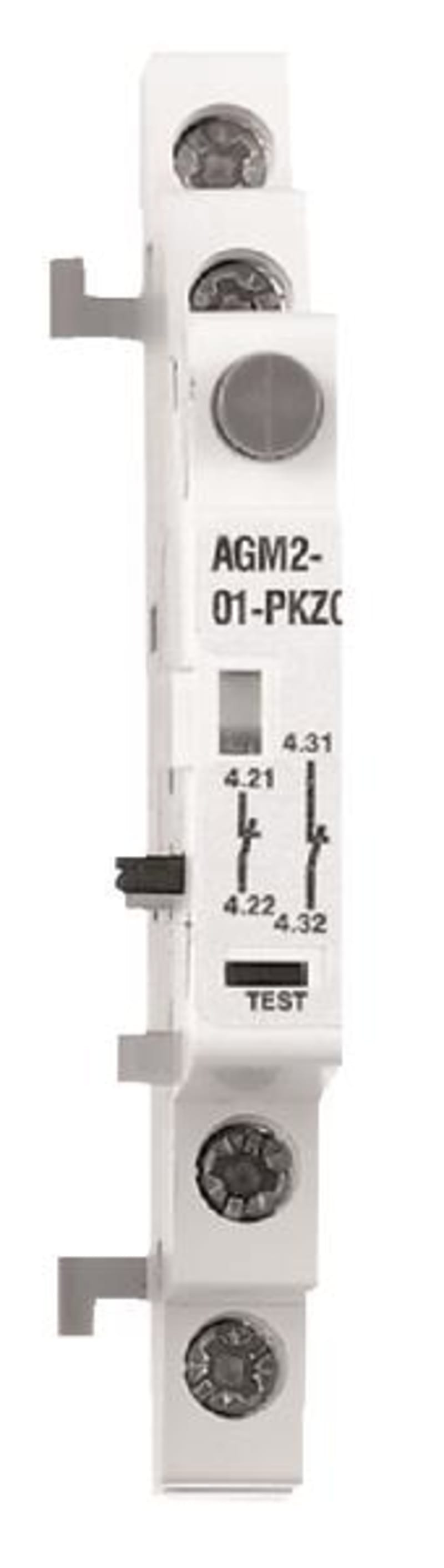

Eaton AGM2-01-PKZ0 Signalling Contact 2 NC for PKZ

Eaton AGM2-01-PKZ0 is a trip-indication signalling contact for use with PKZ motor-protective circuit-breakers. It provides two normally-closed contacts with screw terminals and mounts alongside the breaker at 23 mm width. Rated up to 3.5 A at AC-15 220-240 V.

Manufacturer part number (MPN)

AGM2-01-PKZ0

EAN / GTIN

4015080728993

Sales unit

pcs

Package quantity

2 pcs

Eaton catalogue number

072899

Depth

68 mm

Height

90 mm

Width

23 mm

Weight

0.035 kg

Certifications

CE; IEC/EN 60947-4-1; CSA File No.: 165628; CSA-C22.2 No. 14; UL File No.: E36332; CSA Class No.: 3211-05; UL 508; CSA; UL Category Control No.: NLRV; UL

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-25 °C

Connection type

Screw connection

Control circuit reliability

< 2 λ, < 1 failure at 100,000,000 Operations (at Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA)

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

2

Number of contacts (normally open contacts)

0

Heat dissipation per pole, current-dependent Pvid

0.1 W

Rated operational current for specified heat dissipation (In)

3.5 A

Rated operational current (Ie)

1 A at AC-15, 440 V 500 V

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

3.5 A

Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V

2 A

Rated operational current (Ie) at DC-13, 110 V

0.5 A

Rated operational current (Ie) at DC-13, 220 V, 230 V

0.25 A

Rated operational current (Ie) at DC-13, 24 V

2 A

Rated operational current (Ie) at DC-13, 60 V

1 A

Rated operational voltage (Ue) at DC - max

250 V

Safe isolation

440 V, Between auxiliary contacts and main contacts, According to EN 61140

Electric connection type

Screw connection

Indication

General trip indication (overload); Short-circuits indicated locally by means of a red indicator that can be manually reset

Lifespan, electrical

50,000 Operations

Lifespan, mechanical

10,000 Operations

Model

Top mounting

Mounting method

Side mounting

Overvoltage category

III

Pollution degree

3

Product category

Accessories

Rated impulse withstand voltage (Uimp)

6000 V AC

Used with

Motor protective circuit-breaker

Short-circuit protection rating without welding

10 A gG/gL, Fuse, Auxiliary contacts

Switching capacity (auxiliary contacts, general use)

5 A, 600 V AC, (UL/CSA); 1 A, 250 V DC, (UL/CSA)

Switching capacity (auxiliary contacts, pilot duty)

A600, AC operated (UL/CSA); Q300, DC operated (UL/CSA)

Terminal capacity (solid/flexible with ferrule)

0.75 - 2.5 mm²

Terminal capacity (solid/stranded AWG)

18 - 14

Country of origin

Germany

HS Code

8538.90
