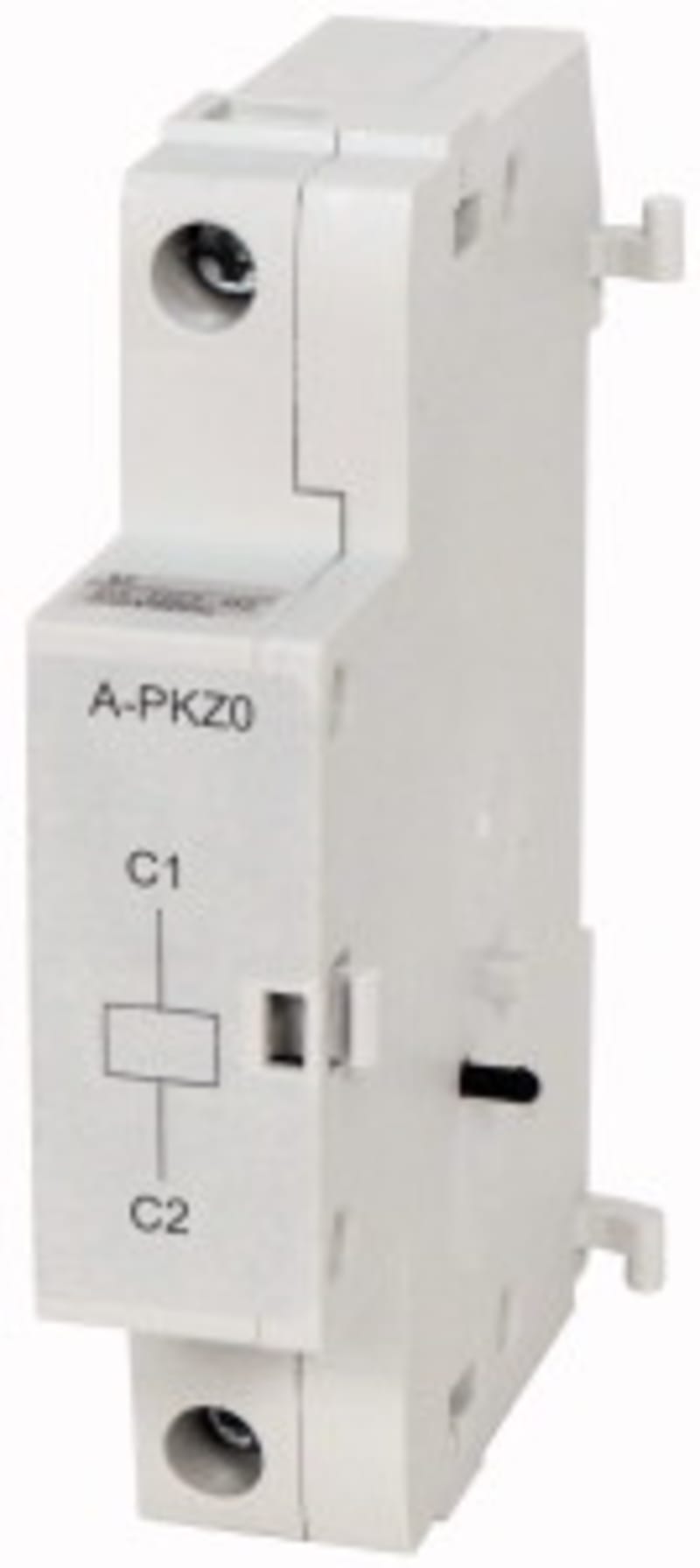

Arbeidscurrenttrigger 230V50HZ (A-PKZ0(230V50HZ))

Eaton A-PKZ0(230V50HZ) Shunt release, 230V50Hz.

Manufacturer part number (MPN)

A-PKZ0(230V50HZ)

EAN / GTIN

4015080731870

Sales unit

pcs

Package quantity

2 pcs

Eaton catalogue number

073187

Depth

68 mm

Height

90 mm

Width

24 mm

Weight

0.13 kg

Certifications

CE; CSA-C22.2 No. 14; CSA File No.: 165628; CSA; UL File No.: E36332; CSA Class No.: 3211-05; IEC/EN 60947-4-1; UL 508; UL Category Control No.: NLRV; UL

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-25 °C

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

0

Number of contacts (normally open contacts)

0

Static heat dissipation, non-current-dependent Pvs

0.5 W

Rated operational voltage (Ue) at AC - max

480 V

Rated operational voltage (Ue) at AC - min

42 V

Rated operational voltage (Ue) at DC - max

250 V

Rated operational voltage (Ue) at DC - min

24 V

Electric connection type

Screw connection

Mounting position

Can be fitted to left side of the motor protection switch

Product category

Accessories

Suitable for

Motor safety switch

Used with

Motor protective circuit-breaker

Voltage type

AC

Rated control supply voltage (Us) at AC, 50 Hz - max

230 V

Rated control supply voltage (Us) at AC, 50 Hz - min

230 V

Power consumption, pick-up, 50 Hz

5 VA, Pull-in power, Coil in a cold state and 1.0 x Us

Power consumption, pick-up, 60 Hz

5 VA, Pull-in power, Coil in a cold state and 1.0 x Us

Power consumption, sealing, 50 Hz

3 VA, Coil in a cold state and 1.0 x Us

Power consumption, sealing, 60 Hz

3 VA, Coil in a cold state and 1.0 x Us

Terminal capacity (solid/flexible with ferrule)

2 x (0.75 - 2.5) mm²; 1 x (0.75 - 2.5) mm²

Terminal capacity (solid/stranded AWG)

1 x (18 - 14); 2 x (18 - 14)

Power consumption

0.5 W

Suitable for off-load switch

No

Suitable for overload relay

No

Type of electric connection

Screw connection

Rated control supply voltage AC 50 Hz

230 V

Suitable for motor safety switch

Yes

Suitable for power circuit breaker

No

Voltage type for actuating

AC

Country of origin

Germany

HS Code

8538.90
