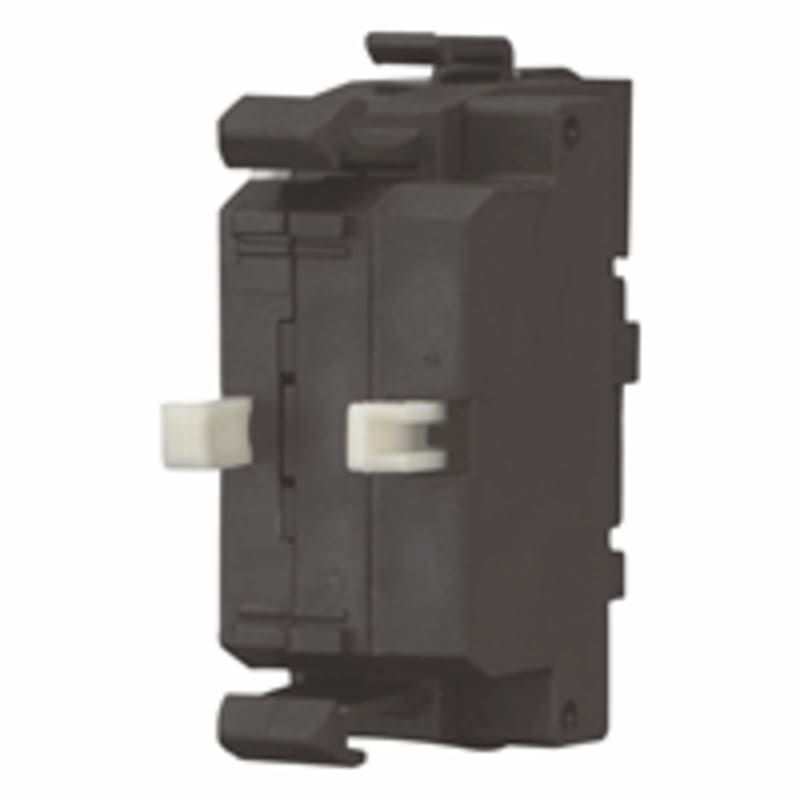

K.el.Darw F.m without Led 2NO/NC
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton K.el.Darw F.m without Led 2NO/NC (part number M22-SWD-K22) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 115965; Depth: 40 mm; Height: 42 mm; Width: 17 mm.
Technical Specifications
- Manufacturer part number (MPN)
- M22-SWD-K22
- EAN / GTIN
- 4015081157051
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 115965
- Depth
- 40 mm
- Height
- 42 mm
- Width
- 17 mm
- Weight
- 0.013 kg
- Certifications
- IEC/EN 61131-2; CSA; CSA File No.: 2324643; UL; CSA Class No.: 3211-07; UL Category Control No.: NKCR; UL File No.: E29184; EN 50178; BV; LRS
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 80 °C
- Ambient operating temperature - min
- -30 °C
- Ambient storage temperature - min
- -40 °C
- Environmental conditions
- Condensation: prevent with appropriate measures
- Connection to SmartWire-DT
- Yes
- Number of contacts (change-over contacts)
- 0
- Number of contacts (normally closed contacts)
- 2
- Number of contacts (normally open contacts)
- 2
- Static heat dissipation, non-current-dependent Pvs
- 0.3 W
- Electric connection type
- Flat plug-in connection
- Functions
- For combination with RMQ-Titan operating elements M22-...; Diagnosis function
- Degree of protection
- IP20
- Model
- Top mounting
- Overvoltage category
- Not applicable
- Pollution degree
- 2
- Product category
- SmartWire-DT RMQ connections
- LED indicator
- Status indication of SmartWire-DT network: Green LED; Status indication of Switching state: Yellow LED
- Connection type
- Front fixing; SWD: Plug, 8-pole
- Mounting method
- Front fastening
- Mounting position
- As required
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015081157051
- SAP 1000288923
- Code 895293
Product Documentation
More from Eaton
Eaton
KUNSTSTOFFKAPS.255X180X125KLAR (PCM200/125XT)
Eaton
Eaton Direct Online Starter (DOL), Screw Connection (MSC-D-6,3-M7(24VDC))
Eaton
Front Plate Set NZM2 V 4P xE M H600 B425
XMN242404CV
Eaton
Switch-disconnector DMM-160/3N/I5/P-R
Eaton
Eaton IZMX-MIL2C-F16-1
Eaton
Pl. backplate HxB=1760X1200 mm
BPZ-RPP-1200/17
Eaton
Eaton FAZT-B2/3 Miniature Circuit Breaker — 3P, Type B, 2 A, 25 kA
Eaton
Transformer protection switch (PKZM0-6,3-T)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
