Switch-disconnector,DCM-40/4

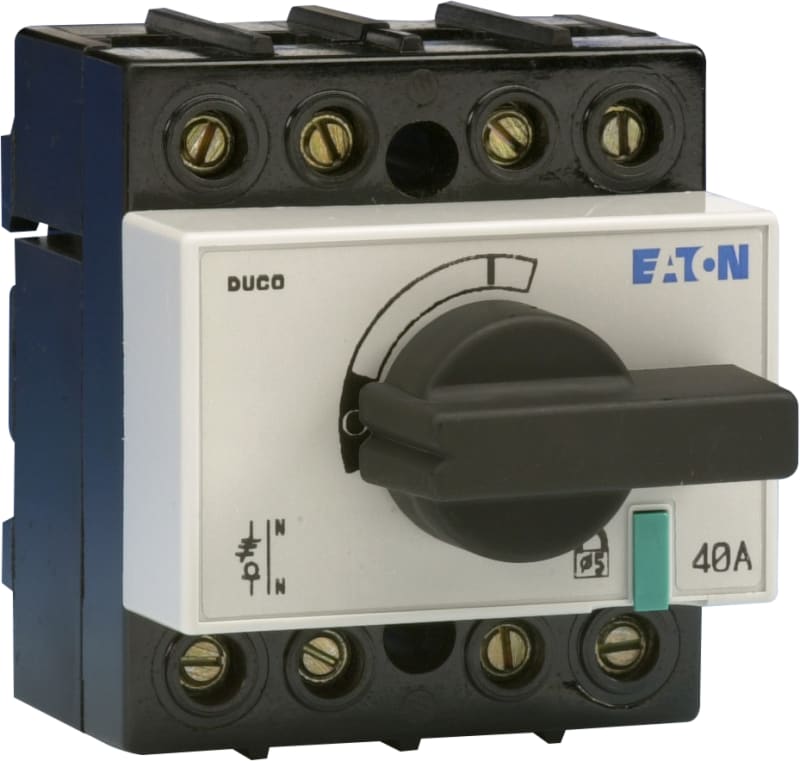

Eaton DCM-40/4 Switch-Disconnector, DCM, 40 A, 4 pole, with black rotary handle and drive shaft.

Manufacturer part number (MPN)

DCM-40/4

EAN / GTIN

8711426813595

Sales unit

pcs

Eaton catalogue number

1314110

Depth

146 mm

Height

74 mm

Width

84 mm

Weight

0.48 kg

Certifications

IEC/EN 60947; IEC/EN 60204; IEC/EN 60947-3; VDE 0660; KEMA; CE; EAC; RoHS; Lloyds

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-30 °C

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Equipment heat dissipation, current-dependent Pvid

0.5 W

Heat dissipation per pole, current-dependent Pvid

3 W

Rated operational current for specified heat dissipation (In)

40 A

Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3)

320 A

Rated insulation voltage (Ui)

690 V

Rated operational current (Ie) at AC-21, 400 V, 415 V

40 A

Rated operational current (Ie) at AC-22, 380 V, 400 V, 415 V

40 A

Rated operational current (Ie) at AC-23A, 400 V, 415 V

40 A

Rated operational power at AC-23A, 400 V, 50 Hz

20 kW

Rated operational voltage (Ue) at AC - max

415 V

Rated uninterrupted current (Iu)

40 A

Uninterrupted current

Rated uninterrupted current Iu is specified for max. cross-section.

Fitted with

Black rotary handle and drive shaft

Locking facility

Lockable in the 0 (Off) position

Number of poles

Four-pole

Actuator color

Black

Actuator type

Short thumb-grip

Connection type

Vertical

Degree of protection

NEMA Other

Degree of protection (front side)

IP20

Lifespan, mechanical

10,000 Operations

Mounting method

Surface mounting

Mounting position

As required

Overvoltage category

III

Pollution degree

3

Product Category

Main switch Switch-disconnector

Rated impulse withstand voltage (Uimp)

6000 V

Safety parameter (EN ISO 13849-1)

B10d values as per EN ISO 13849-1, table C.1

Suitable for

Distribution board installation; Ground mounting

Breaking current

7 kA

Light-through energy

Max. 12 kA²s

Rated conditional short-circuit current (Iq)

50 kA

Rated short-circuit making capacity (Icm)

2.2 kAeff

Rated short-time withstand current (Icw)

1 kA, Contacts, 1 second; 1 kA

Short-circuit protection rating

50, Fuse, Contacts

Stripping length (main cable)

14 mm

Terminal capacity

1.5 - 25 mm², flexible; 2.5 - 16 mm², solid

Country of origin

United Kingdom

HS Code

8536.50
