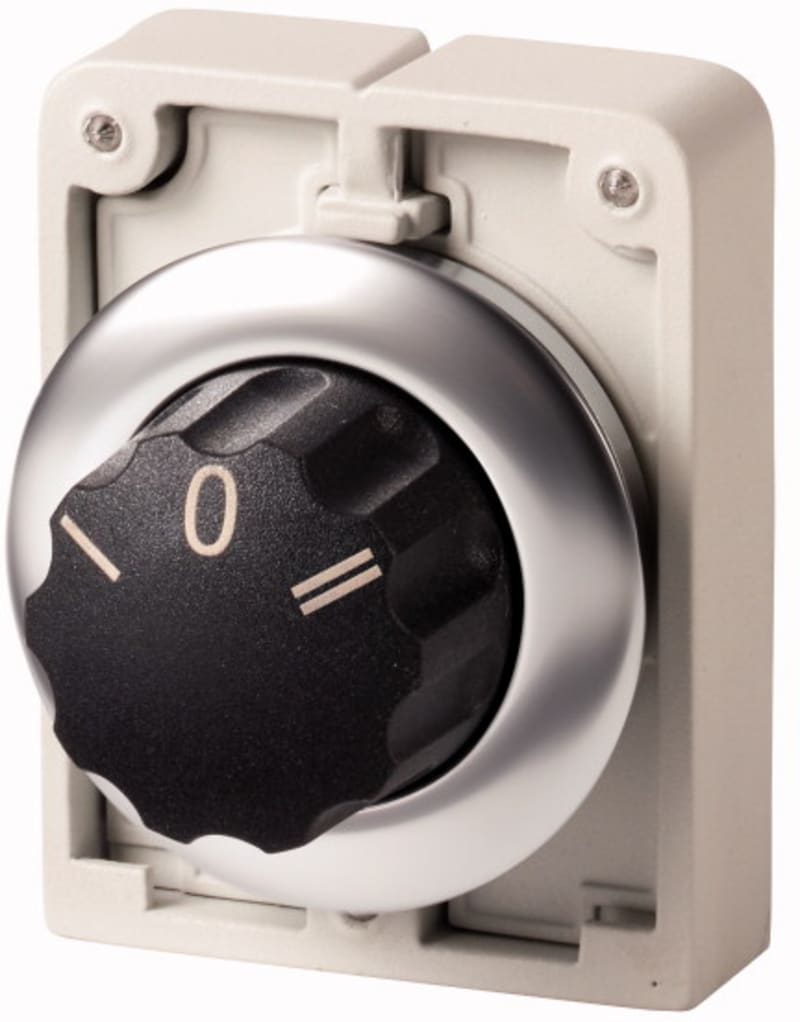

Selector switch, Flat Front (M30C-FW3)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Selector switch, Flat Front (M30C-FW3) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 187089; Depth: 36 mm; Height: 43 mm; Width: 46 mm; Weight: 0.042 kg.
Technical Specifications
- Manufacturer part number (MPN)
- M30C-FW3
- EAN / GTIN
- 4015081821464
- Sales unit
- pcs
- Eaton catalogue number
- 187089
- Depth
- 36 mm
- Height
- 43 mm
- Width
- 46 mm
- Weight
- 0.042 kg
- Certifications
- IEC/EN 60947; VDE 0660; CSA file No. 012528; CSA Class No.: 3211-03; DNV; UL File No.: E29184; GL; IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE marking; UL Category Control No.: NKCR; UL Listed; CSA certified
- Actuator color
- Black
- Actuator function
- Spring-return; Momentary
- Actuator type
- Turn button
- Bezel color
- Titanium
- Bezel material
- Metal
- Design
- With rotary head; Flat front
- Fitted with
- Plunger bridge for the middle contact; Front ring
- Functions
- Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
- Indicator color
- Other
- Inscription
- Inscribed
- Lens type
- Round
- Number of switch positions
- 3
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 80 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- Yes; With SWD-RMQ connections
- Degree of protection
- NEMA 4X, 13
- Degree of protection (front side)
- IP66
- Lifespan, mechanical
- 100,000 Operations
- Mounting position
- As required
- Opening diameter
- 30 mm
- Operating frequency
- 2000 Operations/h
- Operating torque
- 0.3 Nm
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Size
- Front dimensions: Ø 36 mm
- Switching angle
- 40 °
- Type
- Selector switch actuator
- Hole diameter
- 30 mm
- Suitable for lighting
- No
- Spring-return
- Yes
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP64
- Material front ring
- Metal
- With front ring
- Yes
- Construction type lens
- Round
- Type of control element
- Turn button
- Colour control element
- Black
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081821464
- SAP 1200037115
- Code 81866492
