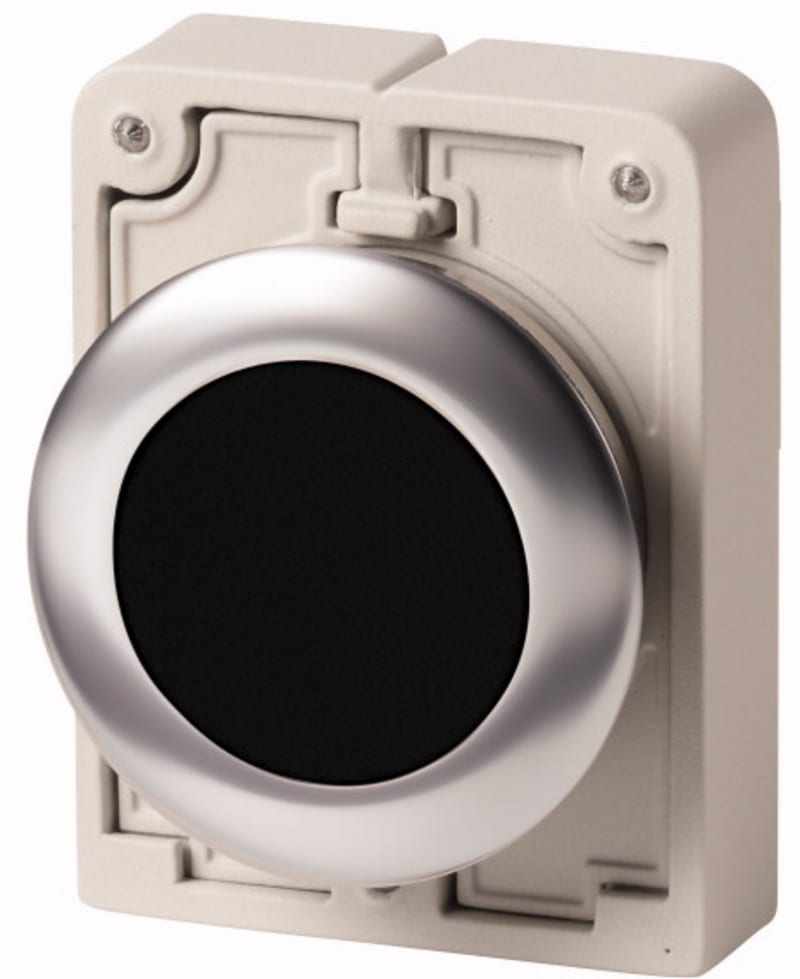

Push-button, Flat Front (M30C-FD-S)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Push-button, Flat Front (M30C-FD-S) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 182959; Depth: 36 mm; Height: 30 mm; Width: 46 mm; Weight: 0.041 kg.
Technical Specifications
- Manufacturer part number (MPN)
- M30C-FD-S
- EAN / GTIN
- 4015081778867
- Sales unit
- pcs
- Eaton catalogue number
- 182959
- Depth
- 36 mm
- Height
- 30 mm
- Width
- 46 mm
- Weight
- 0.041 kg
- Certifications
- IEC/EN 60947; VDE 0660; CSA File No.: 012528; CSA Class No.: 3211-03; DNV; UL File No.: E29184; GL; IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05 and 94-M91; CE marking; UL Category Control No.: NKCR; UL Listed; CSA certified
- Actuating force
- 5 N
- Actuator color
- Black
- Actuator function
- Momentary; Spring-return
- Bezel color
- Titanium
- Bezel material
- Metal
- Design
- Flat; Flat front
- Fitted with
- Front ring
- Inscription
- Blank
- Lens type
- Round
- Number of command positions
- 1
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 80 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- With SWD-RMQ connections; Yes
- Degree of protection
- IP66; IP69K; IP67
- Degree of protection (front side)
- IP67/IP69K; NEMA 4X, 13
- Lifespan, mechanical
- 5,000,000 Operations
- Mounting position
- As required
- Opening diameter
- 30.5 mm
- Operating frequency
- 3600 Operations/h
- Product category
- RMQ-Titan
- Size
- Front dimensions: Ø 36 x 3 mm
- Type
- Pushbutton actuator
- Used with
- M22 contact blocks and indicating lights
- Hole diameter
- 30 mm
- Colour button
- Black
- Suitable for lighting
- No
- Spring-return
- Yes
- Labelled
- No
- Type of button
- Flat
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP67/IP69K
- With protective cover
- No
- Material front ring
- Metal
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
