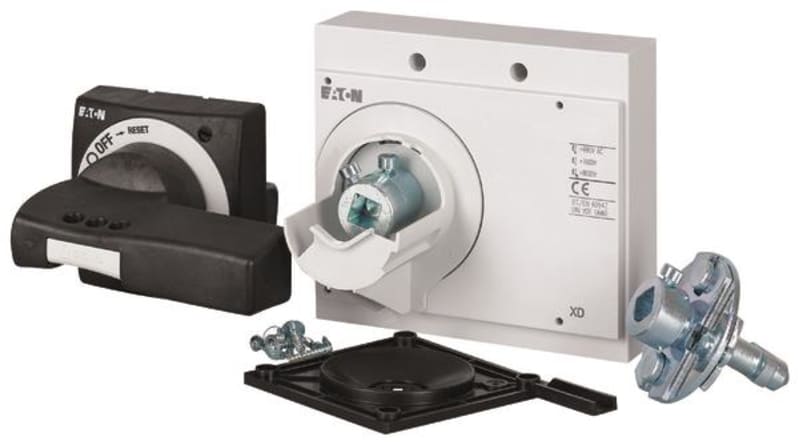

Eaton NZM3-XTVD-NA

Eaton NZM3-XTVD-NA is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 271447; Depth: 100 mm; Height: 230 mm; Width: 120 mm; Weight: 1.382 kg.

Manufacturer part number (MPN)

NZM3-XTVD-NA

EAN / GTIN

4015082714475

Sales unit

pcs

Eaton catalogue number

271447

Depth

100 mm

Height

230 mm

Width

120 mm

Weight

1.382 kg

Compliances

UL/CSA; IEC; RoHS conform

Certifications

IEC60947; UL489; UL (Category Control Number DIHS); CSA-C22.2 No. 5-09; CSA (File No. 22086); UL (File No. E140305); CE marking; CSA (Class No. 1437-01); UL listed; CSA certified

Features

Lockable; Standard: black / gray

Fitted with

Padlock

Frame

NZM3

Special features

Complete including rotary drive and coupling parts Extension shaft additionally required. Cannot be combined with mechanical interlock External warning plate/designation label can be clipped on. Door coupling rotary handle for operating the switch through a closed control panel door

Suitable for

Switch disconnector; Power circuit breaker

Type

Accessory Door coupling rotary handle

Used with

NZM3, N3

Color

Black

Cover/door type

Door opens only with active rotation beyond the 0 position; Door interlock not defeated in the locked OFF position.

Degree of protection / NEMA enclosure type

IP66; 4X. 12

Lock number

Single lockable

Locking facility

Lockable on the 0 position on the handle using up to 3 padlocks; With door interlock

Colour

Black

Lockable

Yes

Padlock locking

Yes

Suitable for emergency stop

No

With extension shaft

No

With restart blockage

No

Suitable for power circuit breaker

Yes

Suitable for switch disconnector

Yes

Degree of protection (NEMA)

4X, 12

With key lock

No

Country of origin

Germany

HS Code

8538.90

• EAN 4015082714475
• SAP 1200518559
• Code 82663345
