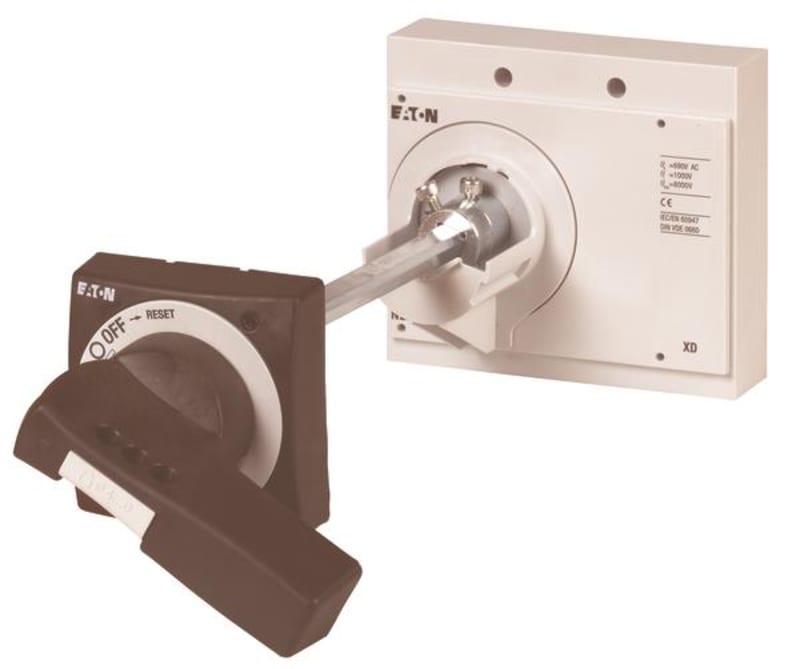

Eaton NZM3-XHB

Eaton NZM3-XHB is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 266628; Depth: 230 mm; Height: 110 mm; Width: 140 mm; Weight: 1.574 kg.

Manufacturer part number (MPN)

NZM3-XHB

EAN / GTIN

4015082666286

Sales unit

pcs

Eaton catalogue number

266628

Depth

230 mm

Height

110 mm

Width

140 mm

Weight

1.574 kg

Compliances

IEC; UL/CSA; RoHS conform

Certifications

CSA (File No. 22086); UL (Category Control Number DIHS); IEC60947; UL (File No. E140305); UL listed; UL489; CSA (Class No. 1437-01); CE marking; CSA-C22.2 No. 5-09; CSA certified

Features

Lockable; With black door coupling rotary handle

Fitted with

NZM...-XV4 extension shaft; Door coupling rotary handle with rotary drive; External warning plate/marking plate in German/English; Black and yellow lightning symbol; Padlock

Frame

NZM3

Special features

External warning plate/designation label can be clipped on. For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger. Kit for use as a main switch

Suitable for

Power circuit breaker; Switch disconnector

Type

Main switch assembly kit

Used with

N(S)3(-4); PN3(-4); NZM3(-4)

Color

Black

Degree of protection / NEMA enclosure type

IP66; 4X. 12

Locking facility

With door interlock; Lockable on the 0 position on the handle using up to 3 padlocks; Can also be modified in I position

Colour

Black

Lockable

Yes

Padlock locking

Yes

Suitable for emergency stop

No

With extension shaft

No

With restart blockage

No

Suitable for power circuit breaker

Yes

Suitable for switch disconnector

Yes

Degree of protection (NEMA)

4X, 12

With key lock

No

Country of origin

Germany

HS Code

8538.90
