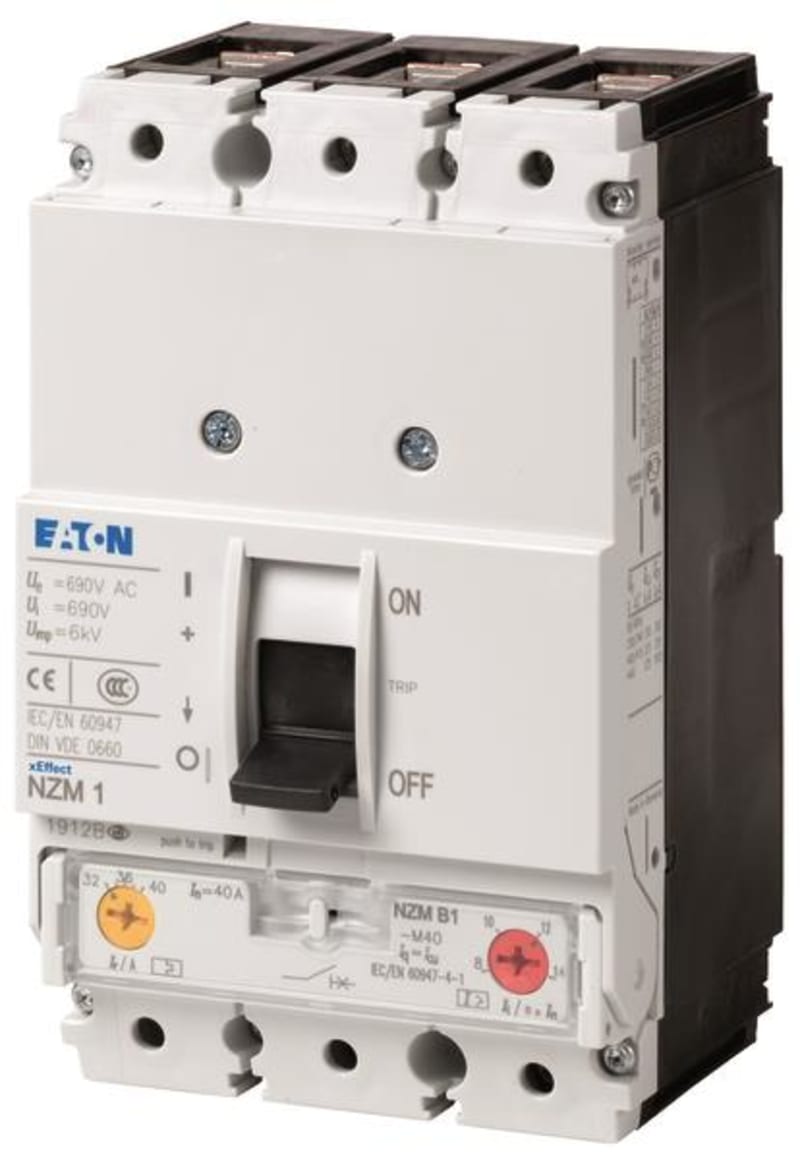

Eaton NZMB1-M100

Eaton NZMB1-M100 is listed under Electrical Components / Motor Protection Circuit Breakers. Sales unit: pcs; Eaton catalogue number: 265714; Depth: 88 mm; Height: 145 mm; Width: 90 mm; Weight: 0.9 kg.

Manufacturer part number (MPN)

NZMB1-M100

EAN / GTIN

4015082657147

Sales unit

pcs

Eaton catalogue number

265714

Depth

88 mm

Height

145 mm

Width

90 mm

Weight

0.9 kg

Compliances

RoHS conform

Certifications

IEC/EN 60947; IEC

Functions

Phase failure sensitive; Motor protection

Amperage Rating

100 A

Application

Use in unearthed supply systems at 440 V

Circuit breaker frame type

NZM1

Fitted with

Thermal protection

Number of poles

Three-pole

Release system

Thermomagnetic release

Type

Circuit breaker

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

23.85 W

Rated operational current for specified heat dissipation (In)

100 A

Direction of incoming supply

As required

Electrical connection type of main circuit

Other

Handle type

Rocker lever

Instantaneous current setting (Ii) - max

1250 A

Instantaneous current setting (Ii) - min

800 A

Isolation

300 V AC (between the auxiliary contacts); 500 V AC (between auxiliary contacts and main contacts)

Lifespan, electrical

7500 operations at 415 V AC-1; 7500 operations at 400 V AC-1

Number of operations per hour - max

120

Overload current setting (Ir) - max

100 A

Overload current setting (Ir) - min

80 A

Overvoltage category

III

Pollution degree

3

Rated impulse withstand voltage (Uimp) at auxiliary contacts

6000 V

Rated impulse withstand voltage (Uimp) at main contacts

6000 V

Rated insulation voltage (Ui)

690 V

Rated operating power at AC-3

230 V

30 kW

Rated operating power at AC-3

400 V

55 kW

Rated operational current

81 A (400 V AC-3)

Rated short-circuit making capacity Icm at 240 V

50/60 Hz

63 kA

Rated short-circuit making capacity Icm at 400/415 V

50/60 Hz

53 kA

Rated short-circuit making capacity Icm at 440 V

Short-circuit release non-delayed setting - max

1250 A

Short-circuit release non-delayed setting - min

800 A

Short-circuit total breaktime

< 10 ms

Utilization category

A (IEC/EN 60947-2)

Voltage rating

440 V - 440 V

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Degree of protection

IP20 (basic degree of protection, in the operating controls area); IP20

Degree of protection (IP), front side

IP66 (with door coupling rotary handle); IP40 (with insulating surround)

Degree of protection (terminations)

IP00 (terminations, phase insulator and strip terminal); IP10 (tunnel terminal)

Lifespan, mechanical

20000 operations

Mounting Method

Built-in device fixed built-in technique; Fixed

Protection against direct contact

Finger and back-of-hand proof to VDE 0106 part 100

Shock resistance

20 g (half-sinusoidal shock 20 ms)

Switch off technique

Thermomagnetic

Optional terminals

Connection on rear. Screw terminal. Tunnel terminal

Standard terminals

Box terminal

Terminal capacity (aluminum solid conductor/cable)

10 mm² - 16 mm² (1x) direct at switch rear-side connection; 16 mm² (1x) at tunnel terminal; 10 mm² - 16 mm² (2x) direct at switch rear-side connection

Terminal capacity (aluminum stranded conductor/cable)

25 mm² - 35 mm² (1x) direct at switch rear-side connection; 25 mm² - 35 mm² (2x) direct at switch rear-side connection; 25 mm² - 95 mm² (1x) at tunnel terminal

Terminal capacity (control cable)

0.75 mm² - 1.5 mm² (2x); 0.75 mm² - 2.5 mm² (1x)

Terminal capacity (copper busbar)

M6 at rear-side screw connection; Max. 16 mm x 5 mm direct at switch rear-side connection; Min. 12 mm x 5 mm direct at switch rear-side connection

Terminal capacity (copper solid conductor/cable)

10 mm² - 16 mm² (1x) direct at switch rear-side connection; 10 mm² - 16 mm² (1x) at box terminal; 6 mm² - 16 mm² (2x) at box terminal; 6 mm² - 16 mm² (2x) direct at switch rear-side connection; 16 mm² (1x) at tunnel terminal

Terminal capacity (copper stranded conductor/cable)

25 mm² (2x) direct at switch rear-side connection; 25 mm² - 95 mm² (1x) at 1-hole tunnel terminal; 10 mm² - 70 mm² (1x) at box terminal; 10 mm² - 70 mm² (1x) direct at switch rear-side connection; 6 mm² - 25 mm² (2x) at box terminal

Terminal capacity (copper strip)

Max. 9 segments of 9 mm x 0.8 mm at box terminal; Min. 2 segments of 9 mm x 0.8 mm at box terminal

Rated operation power at AC-3, 400 V

55 kW

With integrated auxiliary switch

No

Rated permanent current Iu

100 A

With integrated under voltage release

No

Rated operating voltage

440 V

Overload release current setting

80–100 A

Power loss

23.9 W

With thermal overload protection

Yes

Type of control element

Rocker lever

Rated operation power at AC-3, 230 V

30 kW

Rated short-circuit breaking capacity Icu at 400 V, AC

18.5 kA

Adjustment range undelayed short-circuit release

800–1250 A

Phase failure sensitive

Yes

Device construction

Built-in device fixed built-in technique

Country of origin

Romania

HS Code

8536.20
