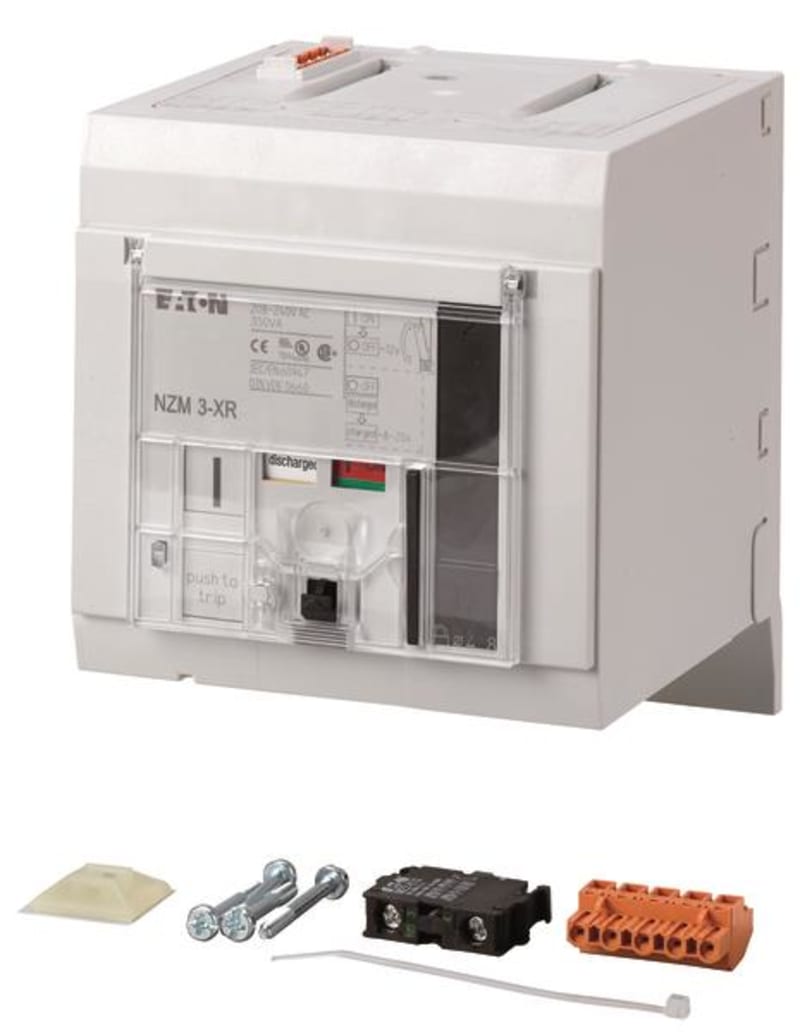

Eaton NZM3-XR24-30DC
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton NZM3-XR24-30DC is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 259854; Depth: 170 mm; Height: 140 mm; Width: 140 mm; Weight: 2.8 kg.
Technical Specifications
- Manufacturer part number (MPN)
- NZM3-XR24-30DC
- EAN / GTIN
- 4015082598549
- Sales unit
- pcs
- Eaton catalogue number
- 259854
- Depth
- 170 mm
- Height
- 140 mm
- Width
- 140 mm
- Weight
- 2.8 kg
- Compliances
- UL/CSA; IEC; RoHS conform
- Certifications
- UL (Category Control Number DIHS); IEC60947; CE marking; UL (File No. E140305); UL listed; CSA (File No. 22086); CSA-C22.2 No. 5-09; CSA certified; CSA (Class No. 1437-01); UL489
- Frame
- NZM3
- Number of poles
- Three-pole/Four-pole
- Special features
- Cannot be combined with switch-disconnector PN... M22-CK11(20/02) dual auxiliary switch cannot be combined with NZM3-XR… remote operator
- Type
- Remote operator, can be synchronized
- Used with
- N(S)3(-4); NZM3(-4)
- Breaking time
- 1000 ms
- Closing delay
- 80 ms
- Number of operations per hour - max
- 60
- Operating voltage - max
- 1.1 x Us
- Operating voltage - min
- 0.85 x Us
- Power consumption
- 250 W (24 - 30 V DC)
- Rated control supply voltage (Us) at DC - max
- 30 V
- Rated control supply voltage (Us) at DC - min
- 24 V
- Signal duration of remote operator at switch off - min
- 250 ms
- Signal duration of remote operator at switch on - min
- 30 ms
- Voltage rating
- 24 - 30 V DC
- Voltage tolerance - max
- 1.1
- Voltage tolerance - min
- 0.85
- Voltage type
- DC
- Lifespan, mechanical
- 15000 operations
- Switch drive type
- Motor drive
- Terminal capacity (solid/flexible conductor)
- 0.75 mm² - 2.5 mm² with ferrule; 18 - 14 AWG
- Rated control supply voltage DC
- 24–30 V
- Type of switch drive
- Motor drive
- Voltage type for actuating
- AC
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082598549
- SAP 1000289268
- Code 896446
Product Documentation
More from Eaton
Eaton
Eaton FAZT-B15/3 Miniature Circuit Breaker — 3P, Type B, 15 A, 25 kA
Eaton
CONTACTOR,32A AC-3, DC Coil (DILM32-01(RDC24))
Eaton
Position safety switch LSM-11S/L
Eaton
Eaton FAZ-Z16/3 Miniature Circuit Breaker — 3P, Type Z, 16 A, 15 kA
Eaton

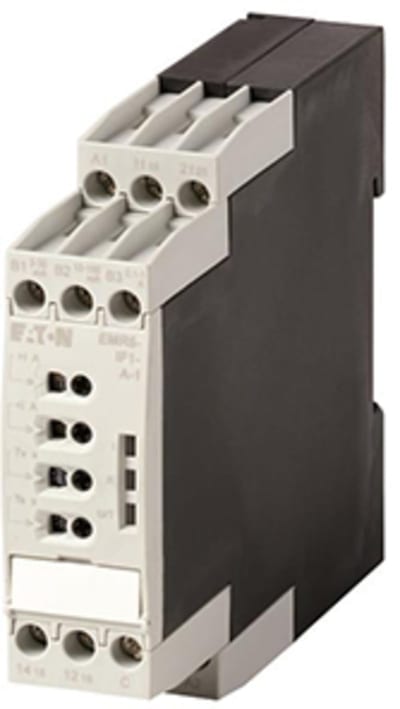

Current monitoring relay (EMR6-IF1-A-1)
Eaton

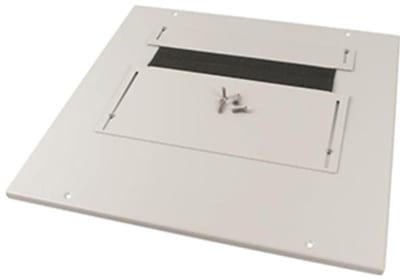

Top plate IP30 xE Light B1200 D400
XLST3F124
Eaton

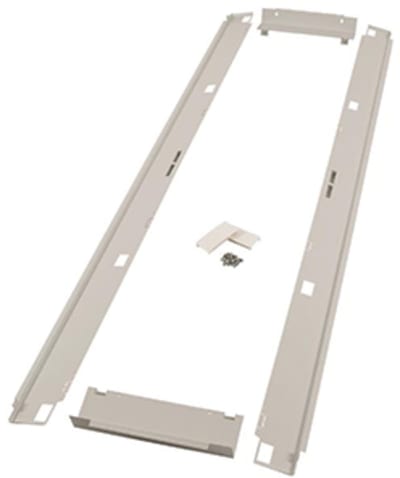

Insulating omramming EP (XVTL-EP-4/20)
