Eaton

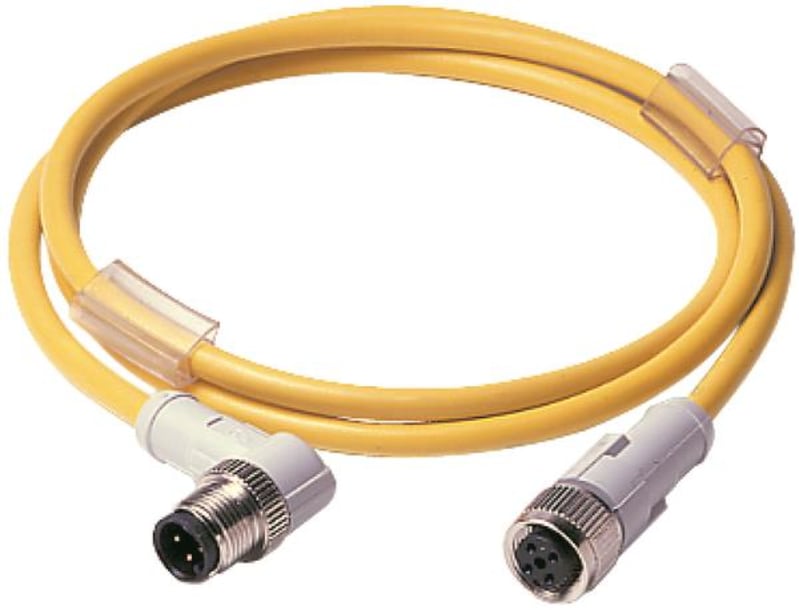

Eaton Connecting Cable, 4-Pole, DC, M12 Straight Coupling to Angled Plug, 1.5 m
Part numberCSDR4A4CY2201.5-DEAN / GTIN4015081330959HS code8544.49
Cables & Wiring
Sensor Cables
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton CSDR4A4CY2201.5-D Connection Cable, 4p, DC current, connection M12 flat, plug, angled, L=1.5m.
Technical Specifications
- Manufacturer part number (MPN)
- CSDR4A4CY2201.5-D
- EAN / GTIN
- 4015081330959
- Sales unit
- pcs
- Eaton catalogue number
- 136313
- Depth
- 177.8 mm
- Height
- 25.4 mm
- Width
- 152.4 mm
- Weight
- 0.27 kg
- Certifications
- CE
- Type
- Connecting cables
- Number of poles
- Four-pole
- Cable type
- Multi-core; Plug, angled, Output side; Coupling, straight, Input side
- Contact surface material
- Other
- Product category
- Accessories
- Voltage type
- DC
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Cable length
- 1.5 m
- Cable sheath material
- Other
- Degree of protection
- Other
- Color cable sheath
- Yellow
- Electrical connection type (box-sided)
- M12
- Electrical connection type (field-sided)
- M12
- Contact body material
- Other
- Permitted temperature of outer cable (assembling/handling) - max
- 70 °C
- Permitted temperature of outer cable (assembling/handling) - min
- 40 °C
- Plug-in contact type (box-sided)
- Male (plug)
- Plug-in contact type (field-sided)
- Female (bus)
- Positioning cable feed (box-sided)
- Angled
- Positioning cable feed (field-sided)
- Straight
- Type of plug-in contact, box-sided
- Male (plug)
- Halogen free
- No
- Screened
- No
- Permitted cable outer temperature during assembling/handling
- 40–70 °C
- Vulcanized
- No
- Type of electrical connection, box-sided
- M12
- Type of electrical connection, field-sided
- M12
- Positioning cable feed, box-sided
- Angled
- Positioning cable feed, field-sided
- Straight
- With LED indication
- No
- Country of origin
- United States
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 4015081330959
- SAP 1200303952
- Code 82279966
Product Documentation
Document preview: Tilconnectionscable, — Specification Data Sheet (OEM)
More from Eaton
Eaton
Eaton FAZ-K10/1 Miniature Circuit Breaker — 1P, Type K, 10 A, 15 kA
Eaton
NH-000 690V aM 10A (10NHM000B-690)
Eaton
Eaton IZMX40H3-V12W-1
Eaton
NH switch unit 400A (BPZ-XNH2X-2/X-600-MV)
Eaton

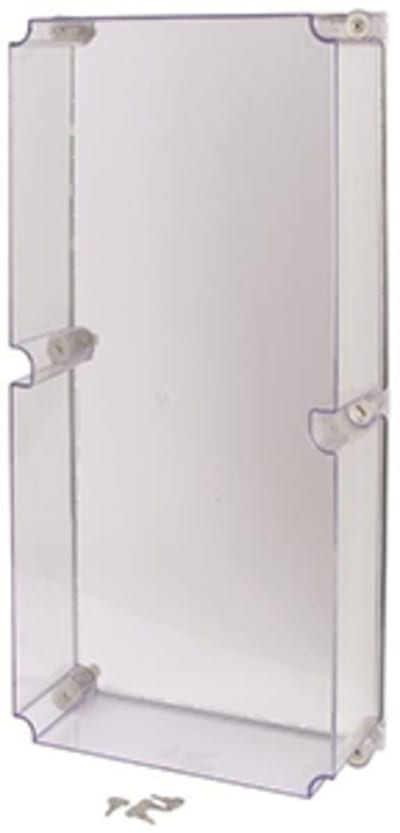

Front, transparent, lockable (D250-CI48-DVZ)
Eaton
Eaton FAZT-B4/2 Miniature Circuit Breaker — 2P, Type B, 4 A, 25 kA
Eaton
8 thermocouple inputs and to KTY inputs
178792
Eaton

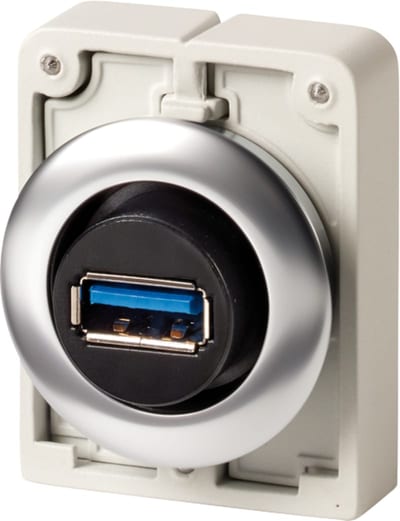

USB 3.0, Flat Front (Y7-187082)
