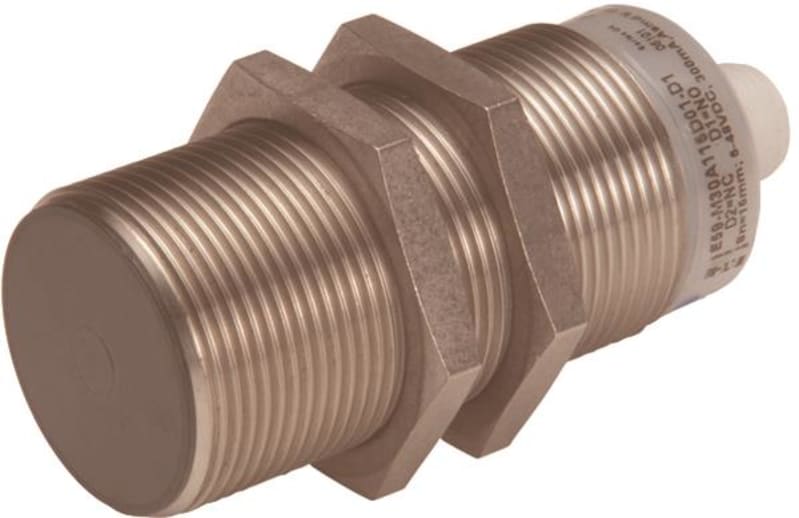

Area switch E59-M30A115D01-D1

Eaton E59-M30A115D01-D1 Area switch, inductive, 1N/O, Sn=15mm, 4L, 6-48VDC, NPN, PNP, M30, metal.

Manufacturer part number (MPN)

E59-M30A115D01-D1

EAN / GTIN

4015081330164

Sales unit

pcs

Eaton catalogue number

136223

Depth

152.4 mm

Height

44.45 mm

Width

127 mm

Weight

0.45 kg

Certifications

CE; Certified by UL for use in Canada; UL; CSA File No.: UL report applies to both US and Canada; CSA-C22.2 No. 14; UL 508; UL File No.: E166051; UL Category Control No.: NRKH, NRKH7; IEC/EN 60947-5-2

Type

Inductive sensor

Electric connection type

Connector M12

Enclosure material finishing

Other

Actuation type

Metallic Target

Enclosure material

Metal

Enclosure type

Cylinder, screw-thread

Category (EN 954-1)

B

Explosion safety category for dust

None

Explosion safety category for gas

None

Safety performance level (EN ISO 13849-1)

None

SIL (IEC 61508)

None

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-40 °C

Diameter sensor

30 mm

Number of contact energized outputs with signalling function

0

Number of contacts (normally open contacts)

1

Number of outputs (protected contact energized)

0

Number of outputs (protected semiconductor)

0

Number of outputs (semiconductor with signaling function)

1

Operational current (Ib) in the switched state at 24 V DC

15 A

Functions

Protection against polarity reversal; Protection against wire breakage; Short-circuit protection

Voltage type

DC

Mounting method

Flush mounting

Material

Stainless steel

Connection type

Plug-in connection M12 x 1; 3-wire

Installation type

Concise

Degree of protection

IP67; IP69; NEMA 4X, 6, 13

Interface type

None

LED indicator

Status indication of Operating voltage: Green LED; Status indication of Switching state: Red LED

Switch function type

Normally open contact

Load current

1 - 300 mA (Ie)

Residual current

0.15 mA (through the load in the blocked state at 230 V AC and 24 V DC)

Shock resistance

30 g, Mechanical, Shock duration 11 ms

Switching frequency

240 Hz

Voltage rating - max

48 V

Product category

iProx Series

Switching output type

PNP/NPN

Temperature drift of sn

10 %

Rated control supply voltage (Us) at DC - max

48 V

Rated control supply voltage (Us) at DC - min

6 V

Rated switching distance (Sn) - max

15 mm

Repeatability

1 %

Sensor length

74 mm

Supply voltage - max

48 V

Supply voltage - min

6 V

Switching hysteresis of Sn

15 %

Voltage drop (Ud)

2.5 V

Length of sensor

74 mm

Mechanical mounting condition for sensor

Concise

Switching distance

15 mm

Suitable for safety functions

No

Type of switch function

Normally open contact (NO)

Type of switching output

PNP/NPN

Type of electric connection

Connector M12

Number of semiconductor outputs with signalling function

1

Type of actuation

Metallic Target

Type of interface

None

Type of interface for safety communication

None

Construction type housing

Cylinder, screw-thread

Cascadable

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Supply voltage

6–48 V

Rated control supply voltage DC

6–48 V

With monitoring function downstream switching devices

No

Housing material

Metal

Compression-resistant

No

Country of origin

Mexico

HS Code

8536.50
