Area switch E59-M12A105D01-D1

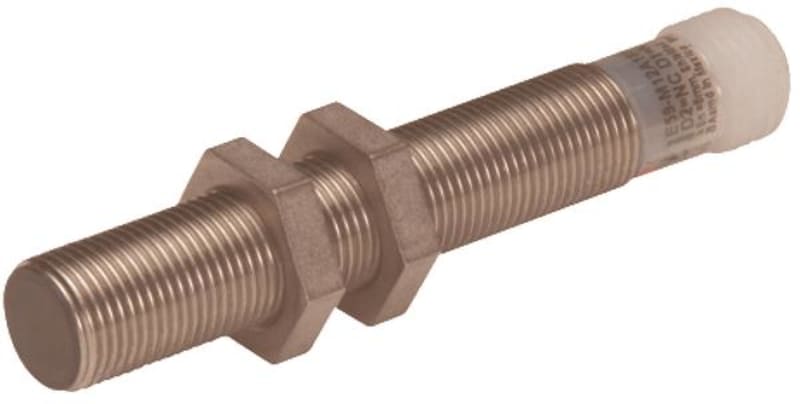

Eaton E59-M12A105D01-D1 Area switch, inductive, 1N/O, Sn=4mm, 4L, 6-48VDC, NPN, PNP, M12, metal.

Manufacturer part number (MPN)

E59-M12A105D01-D1

EAN / GTIN

4015081330003

Sales unit

pcs

Eaton catalogue number

136207

Depth

44.45 mm

Height

76.2 mm

Width

44.45 mm

Weight

0.05 kg

Certifications

CE; UL Category Control No.: NRKH

NRKH7; CSA File No.

UL report applies to both US and Canada; UL File No.: E166051; UL; UL 508; IEC/EN 60947-5-2; Certified by UL for use in Canada; CSA-C22.2 No. 14

Type

Inductive sensor

Electric connection type

Plug-in connection

Enclosure material finishing

Other

Actuation type

Metallic Target

Enclosure material

Metal

Enclosure type

Cylinder, screw-thread

Category (EN 954-1)

B

Explosion safety category for dust

None

Explosion safety category for gas

None

Safety performance level (EN ISO 13849-1)

None

SIL (IEC 61508)

None

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-40 °C

Diameter sensor

12 mm

Number of contact energized outputs with signalling function

0

Number of contacts (normally open contacts)

1

Number of outputs (protected contact energized)

0

Number of outputs (protected semiconductor)

0

Number of outputs (semiconductor with signaling function)

1

Operational current (Ib) in the switched state at 24 V DC

15 A

Functions

Protection against wire breakage; Protection against polarity reversal; Short-circuit protection

Voltage type

DC

Mounting method

Flush mounting

Material

Stainless steel

Connection type

Plug-in connection M12 x 1; 3-wire

Installation type

Concise

Degree of protection

IP69; IP67; NEMA 4X, 6, 13

Interface type

None

LED indicator

Status indication of Switching state: Red LED; Status indication of Operating voltage: Green LED

Switch function type

Normally open contact

Load current

1 - 300 mA (Ie)

Residual current

0.15 mA (through the load in the blocked state at 230 V AC and 24 V DC)

Shock resistance

30 g, Mechanical, Shock duration 11 ms

Switching frequency

580 Hz

Voltage rating - max

48 V

Product category

iProx Series

Switching output type

PNP

Temperature drift of sn

10 %

Rated control supply voltage (Us) at DC - max

48 V

Rated control supply voltage (Us) at DC - min

6 V

Rated switching distance (Sn) - max

4 mm

Repeatability

1 %

Sensor length

69 mm

Supply voltage - max

48 V

Supply voltage - min

6 V

Switching hysteresis of Sn

15 %

Voltage drop (Ud)

2.5 V

Length of sensor

69 mm

Mechanical mounting condition for sensor

Concise

Switching distance

4 mm

Suitable for safety functions

No

Type of switch function

Normally open contact (NO)

Type of switching output

PNP/NPN

Type of electric connection

Connector M12

Number of semiconductor outputs with signalling function

1

Type of actuation

Metallic Target

Type of interface

None

Type of interface for safety communication

None

Construction type housing

Cylinder, screw-thread

Cascadable

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Supply voltage

6–48 V

Rated control supply voltage DC

6–48 V

With monitoring function downstream switching devices

No

Housing material

Metal

Compression-resistant

No

Country of origin

Mexico

HS Code

8536.50
