Area switch E57-08GU02-GDB

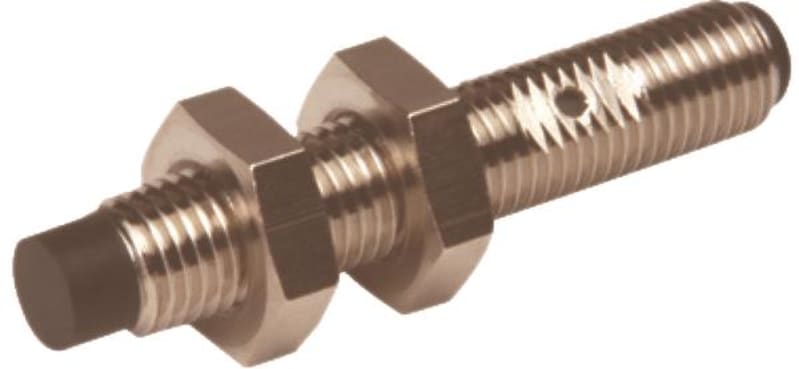

Eaton E57-08GU02-GDB Area switch, E57 Global series, 1 N/O, 3-wire, 10 - 30 V DC, M8 x 1 mm, Sn= 2 mm.

Manufacturer part number (MPN)

E57-08GU02-GDB

EAN / GTIN

4015081326594

HS code

8544.42

Sales unit

pcs

Eaton catalogue number

135866

Depth

114.3 mm

Height

12.7 mm

Width

25.4 mm

Weight

0.017 kg

Certifications

UL File No.: CSA report applies to both US and Canada; CE; CSA; CSA File No.: 224447; UL 508; CSA Class No.: 4652-04 / 4652-84; CSA-C22.2 No. 14; IEC/EN 60947-5-2

Type

Inductive sensor

Electric connection type

Connector M12

Enclosure material finishing

Other

Actuation type

Metallic Target

Enclosure material

Metal

Enclosure type

Cylinder, screw-thread

Category (EN 954-1)

B

Explosion safety category for dust

None

Explosion safety category for gas

None

Safety performance level (EN ISO 13849-1)

None

SIL (IEC 61508)

None

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Diameter sensor

8 mm

Number of contact energized outputs with signalling function

0

Number of contacts (normally open contacts)

1

Number of outputs (protected contact energized)

0

Number of outputs (protected semiconductor)

0

Number of outputs (semiconductor with signaling function)

1

Operational current (Ib) in the switched state at 24 V DC

10 A

Functions

Protection against polarity reversal; Short-circuit protection; Protection against wire breakage

Voltage type

DC

Mounting method

Non-flush mounting

Material

Stainless steel

Connection type

Plug-in connection M12 x 1; 3-wire

Installation type

Not flat

Degree of protection

IP67; IP69; NEMA Other

Interface type

None

LED indicator

Status indication of Switching state: Red LED

Switch function type

Normally open contact

Load current

Max. 100 mA (Ie)

Residual current

0.01 mA (through the load in the blocked state at 230 V AC and 24 V DC)

Residual ripple

10 % (Uₑ)

Shock resistance

30 g, Mechanical, Shock duration 11 ms

Switching frequency

2000 Hz

Voltage rating - max

30 V

Product category

E57 Global Series

Switching output type

PNP

Temperature drift of sn

10 %

Rated control supply voltage (Us) at DC - max

30 V

Rated control supply voltage (Us) at DC - min

10 V

Rated switching distance (Sn) - max

2 mm

Repeatability

1 %

Sensor length

71 mm

Supply voltage - max

30 V

Supply voltage - min

10 V

Switching hysteresis of Sn

15 %

Voltage drop (Ud)

1.5 V

HS Code

8544.42

• EAN 4015081326594
• SAP 1200304021
• Code 82285795
