Eaton

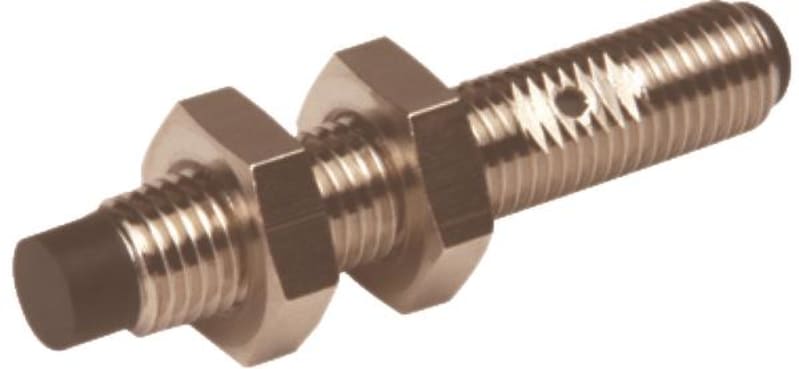

Area switch E57-08GE06-GDB
Part numberE57-08GE06-GDBEAN / GTIN4015081326518HS code8544.42
Sensors & Instrumentation
Inductive Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton E57-08GE06-GDB Area switch, E57 Global series, 1 N/O, 3-wire, 10 - 30 V DC, M8 x 1 mm, Sn= 6 mm.
Technical Specifications
- Manufacturer part number (MPN)
- E57-08GE06-GDB
- EAN / GTIN
- 4015081326518
- HS code
- 8544.42
- Sales unit
- pcs
- Eaton catalogue number
- 135858
- Depth
- 114.3 mm
- Height
- 12.7 mm
- Width
- 25.4 mm
- Weight
- 0.09 kg
- Certifications
- CSA; IEC/EN 60947-5-2; UL File No.: CSA report applies to both US and Canada; UL 508; CE; CSA File No.: 224447; CSA Class No.: 4652-04 / 4652-84; CSA-C22.2 No. 14
- Type
- Inductive sensor
- Electric connection type
- Plug-in connection
- Enclosure material finishing
- Other
- Actuation type
- Metallic Target
- Enclosure material
- Metal
- Enclosure type
- Cylinder, screw-thread
- Category (EN 954-1)
- B
- Explosion safety category for dust
- None
- Explosion safety category for gas
- None
- Safety performance level (EN ISO 13849-1)
- None
- SIL (IEC 61508)
- None
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- 0 °C
- Diameter sensor
- 8 mm
- Number of contact energized outputs with signalling function
- 0
- Number of contacts (normally open contacts)
- 1
- Number of outputs (protected contact energized)
- 0
- Number of outputs (protected semiconductor)
- 0
- Number of outputs (semiconductor with signaling function)
- 1
- Operational current (Ib) in the switched state at 24 V DC
- 10 A
- Functions
- Protection against wire breakage; Short-circuit protection; Protection against polarity reversal
- Voltage type
- DC
- Mounting method
- Non-flush mounting
- Material
- Stainless steel
- Connection type
- Plug-in connection M12 x 1; 3-wire
- Installation type
- Not flat
- Degree of protection
- IP67; IP69; NEMA Other
- Interface type
- None
- LED indicator
- Status indication of Switching state: Red LED
- Switch function type
- Normally open contact
- Load current
- Max. 100 mA (Ie)
- Residual current
- 0.01 mA (through the load in the blocked state at 230 V AC and 24 V DC)
- Residual ripple
- 10 % (Uₑ)
- Shock resistance
- 30 g, Mechanical, Shock duration 11 ms
- Switching frequency
- 2000 Hz
- Voltage rating - max
- 30 V
- Product category
- E57 Global Series
- Switching output type
- PNP
- Temperature drift of sn
- 10 %
- Rated control supply voltage (Us) at DC - max
- 30 V
- Rated control supply voltage (Us) at DC - min
- 10 V
- Rated switching distance (Sn) - max
- 6 mm
- Repeatability
- 1 %
- Sensor length
- 71 mm
- Supply voltage - max
- 30 V
- Supply voltage - min
- 10 V
- Switching hysteresis of Sn
- 15 %
- Voltage drop (Ud)
- 1.5 V
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4015081326518
- SAP 1200304013
- Code 82285801
Product Documentation
Document preview: Area switch, — Specification Data Sheet (OEM)
More from Eaton
Eaton
Eaton T0-3-8007/XZ Voltmeter Selector Switch, Phase-Phase or Phase-Neutral
Eaton
Contactor, DILEM12-10(230V50HZ) (DILEM12-10(230V50HZ,240V60HZ))
Eaton
Cabinet B=400 H=1 760 D=300
BP-F-400/17/3-P
Eaton

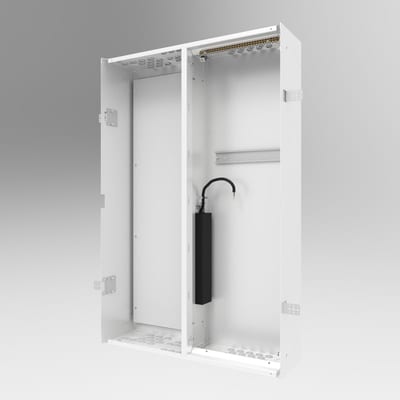

Enclosure Bottom G2 SideBySide 6-Row 150 mm
EP-501132
Eaton
Eaton Horizontal Partition for 2x IZMX16 Breakers
XPIXBCB-H-0804
Eaton

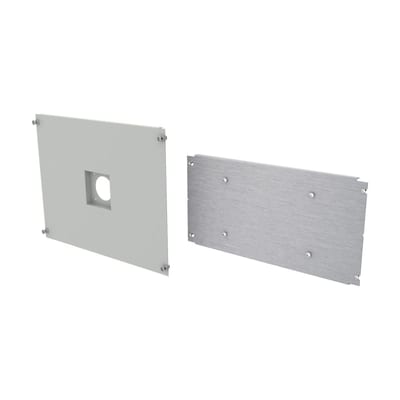

Mounting Kit DMV630/1000 V RH H400 B600 xEB
EP-502393
Eaton

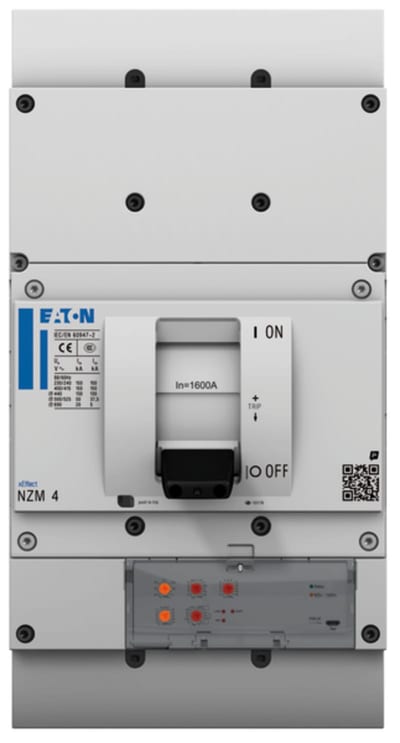

Circuit breaker NZM4 VX N 4P 1000A
191441
Eaton

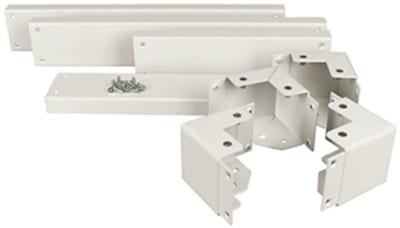

Plinth xE Light (XLSPH265)
