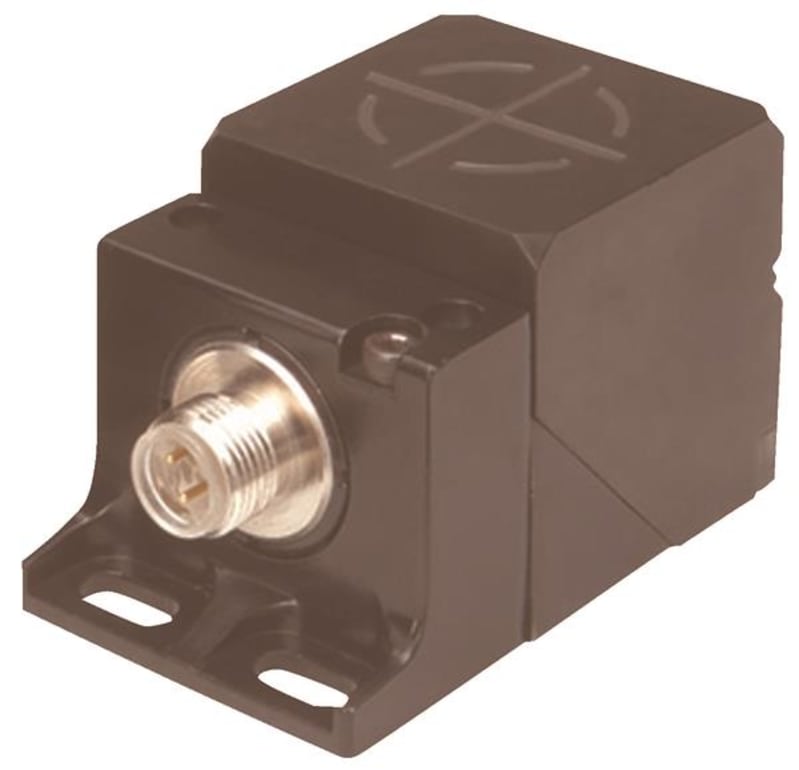

Area switch E52Q-DL30UAD01

Eaton E52Q-DL30UAD01 Area switch, inductive, 1N/O+1N/C, Sn=30mm, 4L, 10-48VDC, NPN, PNP, quad40, insulated material.

Manufacturer part number (MPN)

E52Q-DL30UAD01

EAN / GTIN

4015081326020

Sales unit

pcs

Eaton catalogue number

135809

Depth

41.28 mm

Height

79.38 mm

Width

44.45 mm

Weight

0.27 kg

Certifications

UL Category Control No.: NRKH

NRKH7; CSA File No.

UL report applies to both US and Canada; Certified by UL for use in Canada; IEC/EN 60947-5-2; CE; UL File No.: E166051; CSA-C22.2 No. 14; UL 508; UL

Catalog Notes

Housing adapter

Type

Inductive sensor

Electric connection type

Plug-in connection

Enclosure material finishing

Other

Surface finishing

Zinc alloy

Actuation type

Metallic Target

Enclosure material

Plastic

Enclosure type

Cuboid

Category (EN 954-1)

B

Explosion safety category for dust

None

Explosion safety category for gas

None

Safety performance level (EN ISO 13849-1)

None

SIL (IEC 61508)

None

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-40 °C

Number of contact energized outputs with signalling function

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

1

Number of outputs (protected contact energized)

0

Number of outputs (protected semiconductor)

0

Number of outputs (semiconductor with signaling function)

1

Operational current (Ib) in the switched state at 24 V DC

25 A

Functions

Protection against polarity reversal; Protection against wire breakage; Short-circuit protection

Voltage type

DC

Mounting method

Non-flush mounting

Material

Zinc (Insulated)

Connection type

Plug-in connection M12 x 1; 4-wire

Installation type

Not flat

Degree of protection

IP67; NEMA 4X, 6, 13

Interface type

None

LED indicator

Status indication of Operating voltage: Green LED; Status indication of Switching state: Red LED

Switch function type

Anticoincidence

Load current

Max. 300 mA (Ie)

Residual current

0.15 mA (through the load in the blocked state at 230 V AC and 24 V DC)

Shock resistance

30 g, Mechanical, Shock duration 11 ms

Switching frequency

100 Hz

Voltage rating - max

48 V

Width sensor

40 mm

Product category

E52 Cube Series

Switching output type

NPN

Temperature drift of sn

10 %

Rated control supply voltage (Us) at DC - max

48 V

Rated control supply voltage (Us) at DC - min

6 V

Rated switching distance (Sn) - max

30 mm

Repeatability

2 %

Sensor height

40 mm

Sensor length

40 mm

Supply voltage - max

48 V

Supply voltage - min

6 V

Switching hysteresis of Sn

15 %

Voltage drop (Ud)

2.5 V

Height of sensor

40 mm

Length of sensor

40 mm

Mechanical mounting condition for sensor

Not flat

Switching distance

30 mm

Suitable for safety functions

No

Type of switch function

Anticoincidence

Type of electric connection

Connector M12

Number of semiconductor outputs with signalling function

1

Type of actuation

Metallic Target

Type of interface

None

Type of interface for safety communication

None

Construction type housing

Cuboid

Cascadable

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Supply voltage

6–48 V

Rated control supply voltage DC

6–48 V

With monitoring function downstream switching devices

No

Housing material

Plastic

Compression-resistant

No

Country of origin

Mexico

HS Code

8536.50
