Eaton

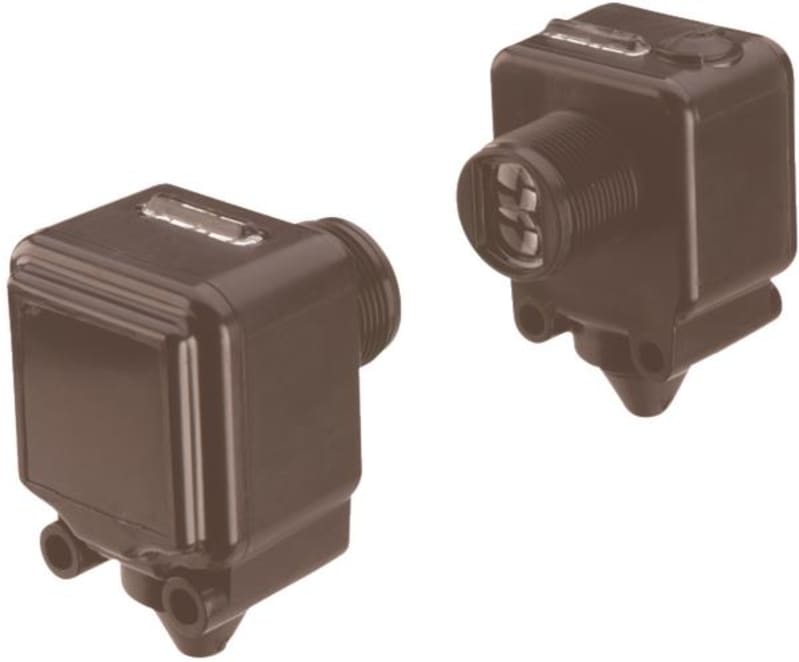

Photoelectric Sensor E65-SMTS15-HAD
Part numberE65-SMTS15-HADEAN / GTIN4015081325283HS code8536.90
Sensors & Instrumentation
Photoelectric Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton E65-SMTS15-HAD photoelectric sensor, E65 series.
Technical Specifications
- Manufacturer part number (MPN)
- E65-SMTS15-HAD
- EAN / GTIN
- 4015081325283
- HS code
- 8536.90
- Sales unit
- pcs
- Eaton catalogue number
- 135735
- Depth
- 139.7 mm
- Height
- 139.7 mm
- Width
- 38.1 mm
- Weight
- 0.11 kg
- Certifications
- Certified by UL for use in Canada; CSA-C22.2 No. 14; UL File No.: E166051; UL; UL 508; UL Category Control No.: NRKH
- NRKH7; CSA File No.
- UL report applies to both US and Canada; CE; IEC/EN 60947-5-2
- Catalog Notes
- Yellow
- Type
- Optical sensors
- Device type
- Transmitter
- Electric connection type
- Connector M12
- Fitted with
- Transmitter (for combination with detector)
- Enclosure material
- Plastic
- Enclosure type
- Cuboid
- Explosion safety category for dust
- None
- Explosion safety category for gas
- None
- Functions
- Thru-light beam; Protection against wire breakage; Short-circuit protection; For combination with detector; Protection against polarity reversal
- Voltage type
- DC
- Wire size
- 0
- Connection type
- Plug-in connection M12 x 1; 4-wire
- Cable sheath material
- Polyvinyl chloride (PVC)
- Light type
- Polarity free red light
- Degree of protection
- NEMA 4X; IP68
- Interface type
- Other
- LED indicator
- Status indication of Operating voltage: Green LED; Status indication of Switching state: Red LED
- Switch function type
- Other
- Load current
- Max. 100 mA (Ie)
- Laser protection class
- None
- Operation agent-safety class
- Safety class 2
- Shock resistance
- 50 g, Mechanical, Shock duration 10 ms
- Optical surface material
- Plastic
- Rated control supply voltage (Us) at DC - max
- 30 V
- Rated control supply voltage (Us) at DC - min
- 10 V
- Rated switching distance (Sn)
- 15000 mm
- Sensor height
- 55 mm
- Sensor length
- 41 mm
- Switching distance - max
- 15000 mm
- Voltage rating - max
- 30 V
- Safety type (IEC 61496-1)
- 1
- Sensing mode
- Light-/dark switching
- Switching output type
- PNP
- Sensor material
- Insulated material
- Wavelength of the sensor
- 660 nm
- Width sensor
- 33 mm
- Product category
- E65 SM Series
- Response time
- 1 ms
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -25 °C
- Ambient storage temperature - max
- 70 °C
- Ambient storage temperature - min
- -25 °C
- Number of contact energized outputs with signalling function
- 0
- Number of outputs (protected contact energized)
- 0
- Number of outputs (protected semiconductor)
- 0
- Number of outputs (semiconductor with signaling function)
- 0
- Operating temperature - max
- 55 °C
- Operating temperature - min
- -25 °C
- Operational current (Ib) in the switched state at 24 V DC
- 40 A
- Adjustment type
- Other
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081325283
- SAP 1200606862
- Code 82994662
Product Documentation
Document preview: Fotoelektrisk sensor, — Specification Data Sheet (OEM)
More from Eaton
Eaton
Eaton AZ-3-C32 Miniature Circuit Breaker — 3P, Type C, 32 A, up to 25 kA
Eaton
Busbar bracket (SVCU20X5)
Eaton
variable-frequency drive DM1-344D3NB-N20B-EM
Eaton
Eaton 25NHG000BI-690 NH000 Knife-Blade Fuse-Link 25 A 690 V AC gL/gG
Eaton
Eaton NMRBM-20/3/B/01-A RCBO 20 A 100 mA, Curve B, 3-Pole, Type A
NmRBM-20/3/B/01-A
Eaton
LOAD-Break Switch 1P (ZP-A40/1)
IS-40/1
Eaton

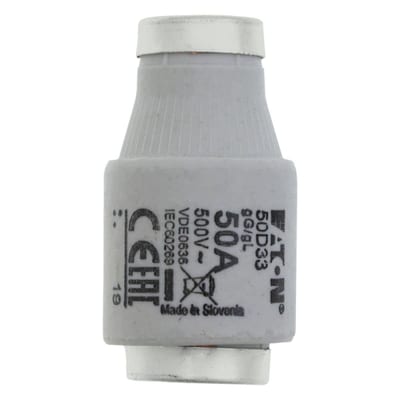

Fuse 50A D3, E33 (50D33)
