Eaton

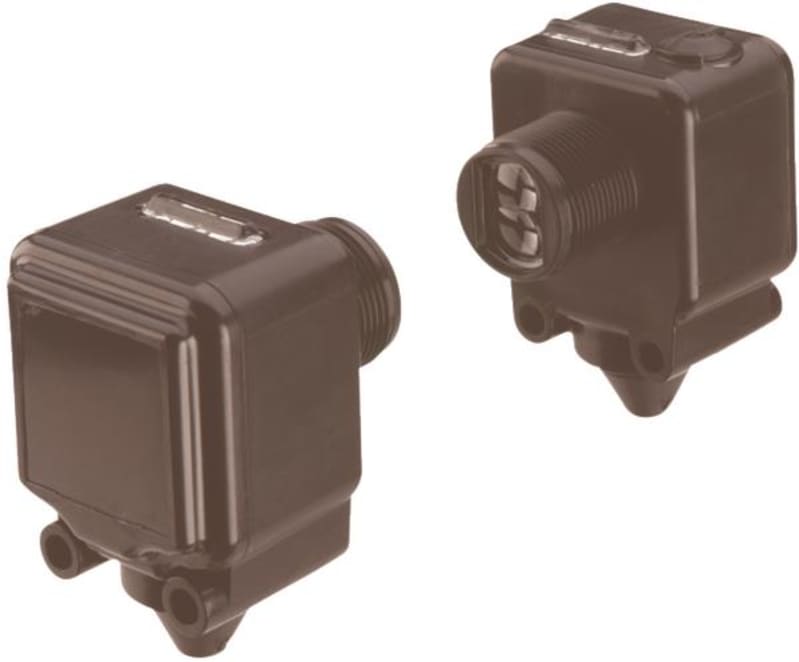

Photoelectric Sensor E65-SMTD15-HDD
Part numberE65-SMTD15-HDDEAN / GTIN4015081325245HS code8536.90
Sensors & Instrumentation
Photoelectric Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton E65-SMTD15-HDD photoelectric sensor, E65 series.
Technical Specifications
- Manufacturer part number (MPN)
- E65-SMTD15-HDD
- EAN / GTIN
- 4015081325245
- HS code
- 8536.90
- Sales unit
- pcs
- Eaton catalogue number
- 135731
- Depth
- 139.7 mm
- Height
- 139.7 mm
- Width
- 38.1 mm
- Weight
- 0.11 kg
- Certifications
- Certified by UL for use in Canada; UL 508; IEC/EN 60947-5-2; CE; UL Category Control No.: NRKH
- NRKH7; CSA-C22.2 No. 14; CSA File No.
- UL report applies to both US and Canada; UL; UL File No.: E166051
- Catalog Notes
- Yellow
- Type
- Optical sensors
- Device type
- Receiver
- Electric connection type
- Connector M12
- Enclosure material
- Plastic
- Enclosure type
- Cuboid
- Operating mode
- Switching principle: Dark switching
- Explosion safety category for dust
- None
- Explosion safety category for gas
- None
- Functions
- Thru-light beam; Detector (for combination with source); Protection against polarity reversal; For combination with transmitter; Protection against wire breakage; Short-circuit protection
- Voltage type
- DC
- Wire size
- 0
- Connection type
- 4-wire; Plug-in connection M12 x 1
- Cable sheath material
- Polyvinyl chloride (PVC)
- Light type
- Polarity free red light
- Degree of protection
- NEMA 4X; IP68
- Interface type
- Other
- LED indicator
- Status indication of Operating voltage: Green LED; Status indication of Switching state: Red LED
- Switch function type
- Other
- Load current
- Max. 100 mA (Ie)
- Laser protection class
- None
- Operation agent-safety class
- Safety class 2
- Shock resistance
- 50 g, Mechanical, Shock duration 10 ms
- Optical surface material
- Plastic
- Output current (mA) - max
- 100 mA
- Rated control supply voltage (Us) at DC - max
- 30 V
- Rated control supply voltage (Us) at DC - min
- 10 V
- Rated switching distance (Sn)
- 15000 mm
- Sensor height
- 55 mm
- Sensor length
- 41 mm
- Switching distance - max
- 15000 mm
- Switching voltage of OSSD at state high
- 30 V
- Voltage rating - max
- 30 V
- Safety type (IEC 61496-1)
- 1
- Switching frequency
- 500 Hz
- Sensing mode
- Dark switching
- Switching output type
- NPN
- Sensor material
- Insulated material
- Wavelength of the sensor
- 660 nm
- Width sensor
- 33 mm
- Product category
- E65 SM Series
- Response time
- 1 ms
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -25 °C
- Ambient storage temperature - max
- 70 °C
- Ambient storage temperature - min
- -25 °C
- Number of contact energized outputs with signalling function
- 0
- Number of outputs (protected contact energized)
- 0
- Number of outputs (protected semiconductor)
- 0
- Number of outputs (semiconductor with signaling function)
- 2
- Operating temperature - max
- 55 °C
- Operating temperature - min
- -25 °C
- Operational current (Ib) in the switched state at 24 V DC
- 20 A
- Adjustment type
- Other
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081325245
- SAP 1200606842
- Code 82994755
Product Documentation
