Eaton

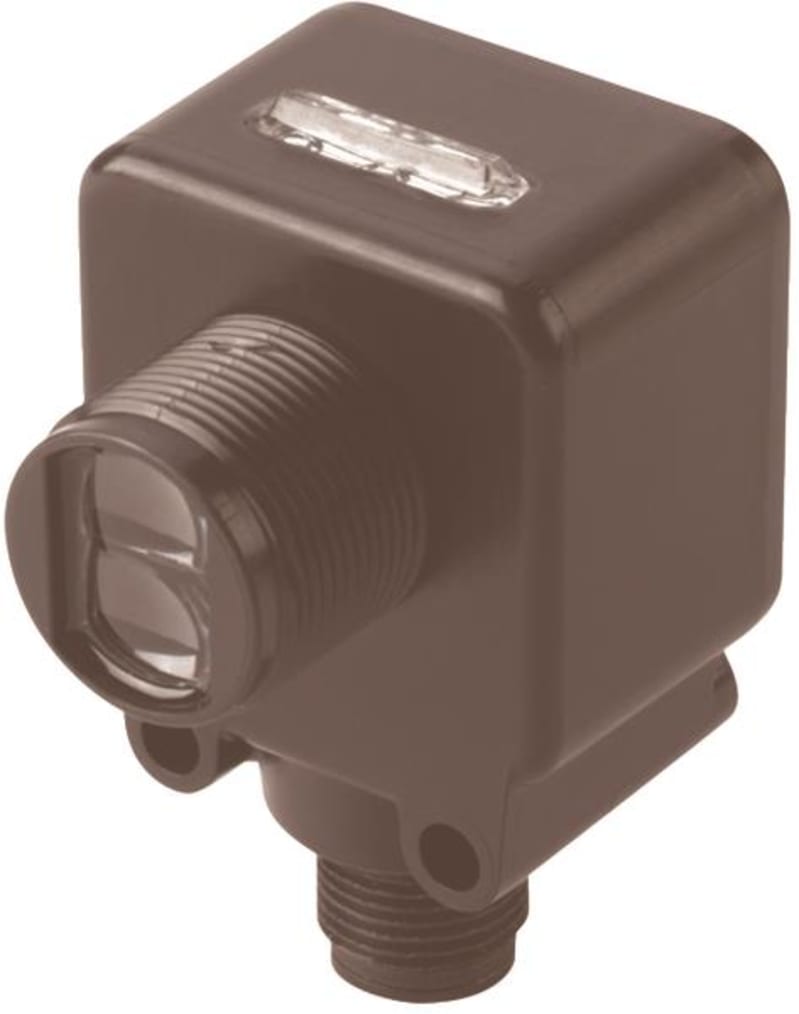

Optical sensor E65-SMPP100-HLD
Part numberE65-SMPP100-HLDEAN / GTIN4015081325061HS code8536.90
Sensors & Instrumentation
Photoelectric Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton E65-SMPP100-HLD Optical sensor, Sn=100mm, 4L, 10-30VDC, light, NPN, PNP, quad 40, M12.
Technical Specifications
- Manufacturer part number (MPN)
- E65-SMPP100-HLD
- EAN / GTIN
- 4015081325061
- HS code
- 8536.90
- Sales unit
- pcs
- Eaton catalogue number
- 135713
- Depth
- 139.7 mm
- Height
- 139.7 mm
- Width
- 38.1 mm
- Weight
- 0.11 kg
- Certifications
- CSA File No.: UL report applies to both US and Canada; IEC/EN 60947-5-2; UL File No.: E166051; UL; Certified by UL for use in Canada; CE; UL 508; CSA-C22.2 No. 14; UL Category Control No.: NRKH, NRKH7
- Catalog Notes
- Yellow
- Type
- Optical sensors
- Electric connection type
- Connector M12
- Fitted with
- Background suppression (Perfect Prox)
- Enclosure material
- Plastic
- Enclosure type
- Cuboid
- Operating mode
- Switching principle: Light switching
- Explosion safety category for dust
- None
- Explosion safety category for gas
- None
- Functions
- Protection against wire breakage; Short-circuit protection; Reflected-light beam; Protection against polarity reversal
- Voltage type
- DC
- Wire size
- 0
- Connection type
- 4-wire; Plug-in connection M12 x 1
- Cable sheath material
- Other
- Light type
- Other
- Degree of protection
- NEMA 6; IP68
- Interface type
- Other
- LED indicator
- Status indication of Switching state: Red LED; Status indication of Operating voltage: Green LED
- Switch function type
- Other
- Load current
- Max. 100 mA (Ie)
- Laser protection class
- None
- Operation agent-safety class
- Safety class 2
- Shock resistance
- 50 g, Mechanical, Shock duration 10 ms
- Optical surface material
- Plastic
- Output current (mA) - max
- 100 mA
- Output current at protected output - max
- 100 mA
- Rated control supply voltage (Us) at DC - max
- 30 V
- Rated control supply voltage (Us) at DC - min
- 10 V
- Rated switching distance (Sn)
- 100 mm
- Sensor height
- 55 mm
- Sensor length
- 41 mm
- Switching distance - max
- 100 mm
- Switching voltage of OSSD at state high
- 30 V
- Voltage rating - max
- 30 V
- Safety type (IEC 61496-1)
- 1
- Switching frequency
- 500 Hz
- Sensing mode
- Light switching
- Switching output type
- NPN
- Sensor material
- Insulated material
- Triangulation
- Background fade-out
- Wavelength of the sensor
- 660 nm
- Width sensor
- 33 mm
- Product category
- E65 SM Series
- Response time
- 1 ms
- Adjustment range - max
- 100 mm
- Adjustment range - min
- 0 mm
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -25 °C
- Ambient storage temperature - max
- 70 °C
- Ambient storage temperature - min
- -25 °C
- Number of contact energized outputs with signalling function
- 0
- Number of outputs (protected contact energized)
- 0
- Number of outputs (protected semiconductor)
- 0
- Number of outputs (semiconductor with signaling function)
- 1
- Operating temperature - max
- 55 °C
- Operating temperature - min
- -25 °C
- Operational current (Ib) in the switched state at 24 V DC
- 20 A
- Adjustment type
- Other
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081325061
- SAP 1200606832
- Code 82994653
Product Documentation
Document preview: Optisk sensor, — Specification Data Sheet (OEM)
More from Eaton
Eaton
Eaton FAZ-B10/4 Miniature Circuit Breaker — 4P, Type B, 10 A, 15 kA
Eaton
Unit breaker 1P 80A D
AZ-D80
Eaton
Eaton FAZT-D32/4 Miniature Circuit Breaker — 4P, Type D, 32 A, 25 kA
Eaton

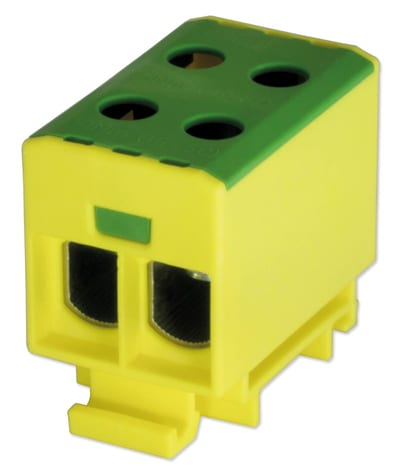

Terminal block 2X50 mm² yellow/green
BPZ-KC-2/50PE-ALU
Eaton

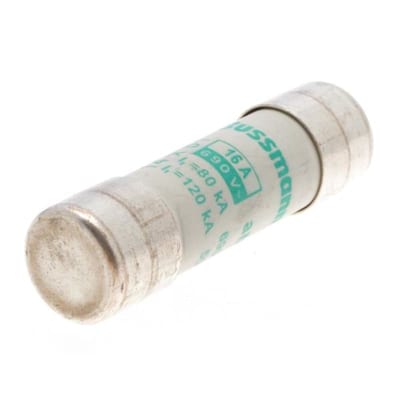

Cylindrical Fuse 14X51MM, 16A (C14M16)
