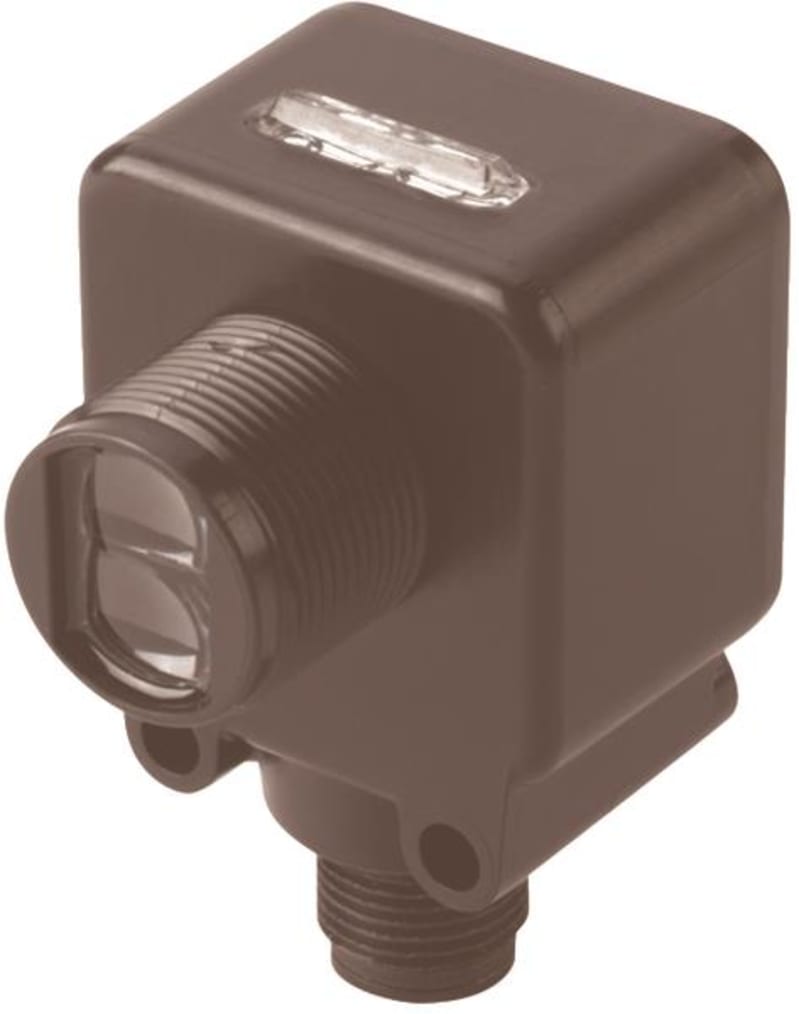

Optical sensor E65-SMPP100-HDD

Eaton E65-SMPP100-HDD Optical sensor, Sn=100mm, 4L, 10-30VDC, dark, NPN, PNP, quad 40, M12.

Manufacturer part number (MPN)

E65-SMPP100-HDD

EAN / GTIN

4015081325047

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

135711

Depth

139.7 mm

Height

139.7 mm

Width

38.1 mm

Weight

0.11 kg

Certifications

UL; CSA File No.: UL report applies to both US and Canada; IEC/EN 60947-5-2; Certified by UL for use in Canada; UL 508; CSA-C22.2 No. 14; CE; UL Category Control No.: NRKH

NRKH7; UL File No.

E166051

Catalog Notes

Yellow

Type

Optical sensors

Electric connection type

Plug-in connection

Fitted with

Background suppression (Perfect Prox)

Enclosure material

Plastic

Enclosure type

Cuboid

Operating mode

Switching principle: Dark switching

Explosion safety category for dust

None

Explosion safety category for gas

None

Functions

Protection against wire breakage; Short-circuit protection; Protection against polarity reversal; Reflected-light beam

Voltage type

DC

Wire size

0

Connection type

4-wire; Plug-in connection M12 x 1

Cable sheath material

Other

Light type

Other

Degree of protection

NEMA 6; IP68

Interface type

Other

LED indicator

Status indication of Operating voltage: Green LED; Status indication of Switching state: Red LED

Switch function type

Other

Load current

Max. 100 mA (Ie)

Laser protection class

None

Operation agent-safety class

Safety class 2

Shock resistance

50 g, Mechanical, Shock duration 10 ms

Optical surface material

Plastic

Output current (mA) - max

100 mA

Output current at protected output - max

100 mA

Rated control supply voltage (Us) at DC - max

30 V

Rated control supply voltage (Us) at DC - min

10 V

Rated switching distance (Sn)

100 mm

Sensor height

55 mm

Sensor length

41 mm

Switching distance - max

100 mm

Switching voltage of OSSD at state high

30 V

Voltage rating - max

30 V

Safety type (IEC 61496-1)

1

Switching frequency

500 Hz

Sensing mode

Dark switching

Switching output type

PNP/NPN

Sensor material

Insulated material

Triangulation

Background fade-out

Wavelength of the sensor

660 nm

Width sensor

33 mm

Product category

E65 SM Series

Response time

1 ms

Adjustment range - max

100 mm

Adjustment range - min

0 mm

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - max

70 °C

Ambient storage temperature - min

-25 °C

Number of contact energized outputs with signalling function

0

Number of outputs (protected contact energized)

0

Number of outputs (protected semiconductor)

0

Number of outputs (semiconductor with signaling function)

1

Operating temperature - max

55 °C

Operating temperature - min

-25 °C

Operational current (Ib) in the switched state at 24 V DC

20 A

Adjustment type

Other

HS Code

8536.90

• EAN 4015081325047
• SAP 1200606830
• Code 82994747
