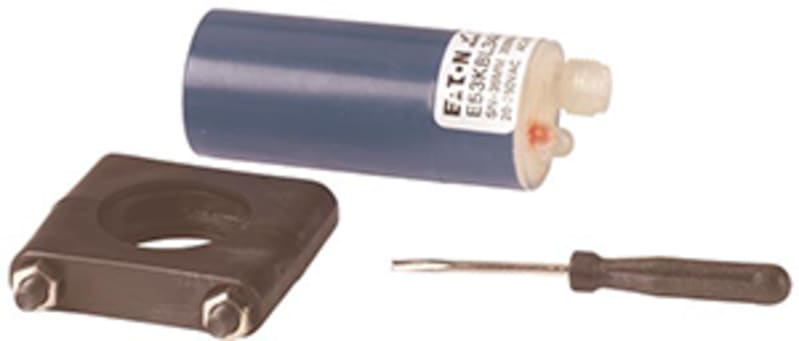

Area switch E53KBL34T111SD

Eaton E53KBL34T111SD Area switch, capacitive, Sn=25mm, 1 N/C, 3L, PNP, M34, M12.

Manufacturer part number (MPN)

E53KBL34T111SD

EAN / GTIN

4015081316762

Sales unit

pcs

Eaton catalogue number

134824

Depth

127 mm

Height

50.8 mm

Width

88.9 mm

Weight

0.18 kg

Certifications

CE; IEC/EN 60947-5-2

Type

Capacitive sensor

Electric connection type

Plug-in connection

Enclosure material finishing

Other

Fitted with

Status indication

Actuation type

Other

Enclosure material

Plastic

Enclosure type

Cylinder plain

Category (EN 954-1)

B

Explosion safety category for dust

None

Explosion safety category for gas

None

Functions

Protection against wire breakage; Protection against polarity reversal; Short-circuit protection

Voltage type

DC

Mounting method

Flush mounting

Material

Insulated material

Connection type

3-wire; Plug-in connection M12 x 1

Installation type

Concise

Degree of protection

NEMA 12; NEMA 13; IP65; NEMA 4

Interface type

None

LED indicator

Status indication of Switching state: Red LED

Switch function type

Breaker contact

Load current

Max. 300 mA (Ie)

Rated control supply voltage (Us) at DC - max

30 V

Rated control supply voltage (Us) at DC - min

10 V

Rated switching distance (Sn)

25 mm

Repeatability

10 %

Sensor length

80 mm

Supply voltage - max

30 V

Supply voltage - min

10 V

Switching hysteresis of Sn

20 %

Voltage drop (Ud)

2 V

Voltage rating - max

250 V

Product category

E53 Capacitive Series

Operational current (Ib)

< 10 mA (in the switched state at 24 V DC)

Residual current

0.1 mA (through the load in the blocked state at 230 V AC and 24 V DC)

Residual ripple

10 % (Uₑ)

Shock resistance

30 g, Mechanical, Shock duration 11 ms

Switching frequency

250 Hz

Switching output type

PNP

Temperature drift of sn

10 %

Safety performance level (EN ISO 13849-1)

None

SIL (IEC 61508)

None

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Diameter sensor

34 mm

Number of contact energized outputs with signalling function

0

Number of contacts (normally closed contacts)

1

Number of outputs (protected contact energized)

0

Number of outputs (protected semiconductor)

0

Number of outputs (semiconductor with signaling function)

1

Length of sensor

80 mm

Mechanical mounting condition for sensor

Concise

Switching distance

25 mm

Suitable for safety functions

No

Type of switch function

Breaker contact (NC)

Type of switching output

PNP

Type of electric connection

Connector M12

Number of semiconductor outputs with signalling function

1

Type of interface

None

Type of interface for safety communication

None

Construction type housing

Cylinder plain

Cascadable

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Supply voltage

10–30 V

Rated control supply voltage DC

10–30 V

With monitoring function downstream switching devices

No

With status indication

Yes

Housing material

Plastic

Compression-resistant

No

Country of origin

China

HS Code

8536.50
