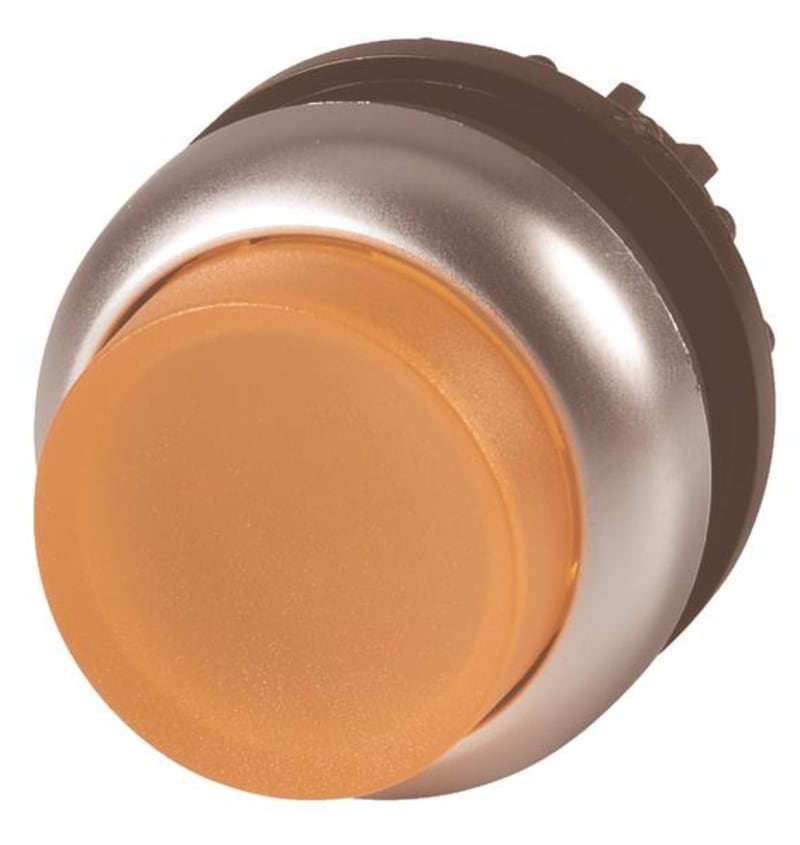

Push-button with light, RMQ (M22-DLH-A)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Push-button with light, RMQ (M22-DLH-A) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 5 pcs; Eaton catalogue number: 167433; Depth: 30 mm; Height: 30 mm; Width: 30 mm.
Technical Specifications
- Manufacturer part number (MPN)
- M22-DLH-A
- EAN / GTIN
- 4015081639335
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 167433
- Depth
- 30 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.012 kg
- Certifications
- VDE 0660; IEC/EN 60947; DNV; GL; LR
- Actuator color
- Orange
- Actuator function
- Momentary; Spring-return
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- Extended; Classical
- Fitted with
- Front ring
- Inscription
- Blank
- Lens type
- Round
- Number of command positions
- 1
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- With SWD-RMQ connections; Yes
- Degree of protection
- IP69K; IP66; IP67
- Degree of protection (front side)
- IP67/IP69K; NEMA 4X
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Product category
- RMQ-Titan
- Suitable for
- Illumination
- Type
- Illuminated pushbutton actuator
- Hole diameter
- 22 mm
- Suitable for lighting
- Yes
- Spring-return
- Yes
- Labelled
- No
- Type of button
- High
- Degree of protection (IP), front side
- IP67/IP69K
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015081639335
- SAP 1200563160
- Code 82903668
