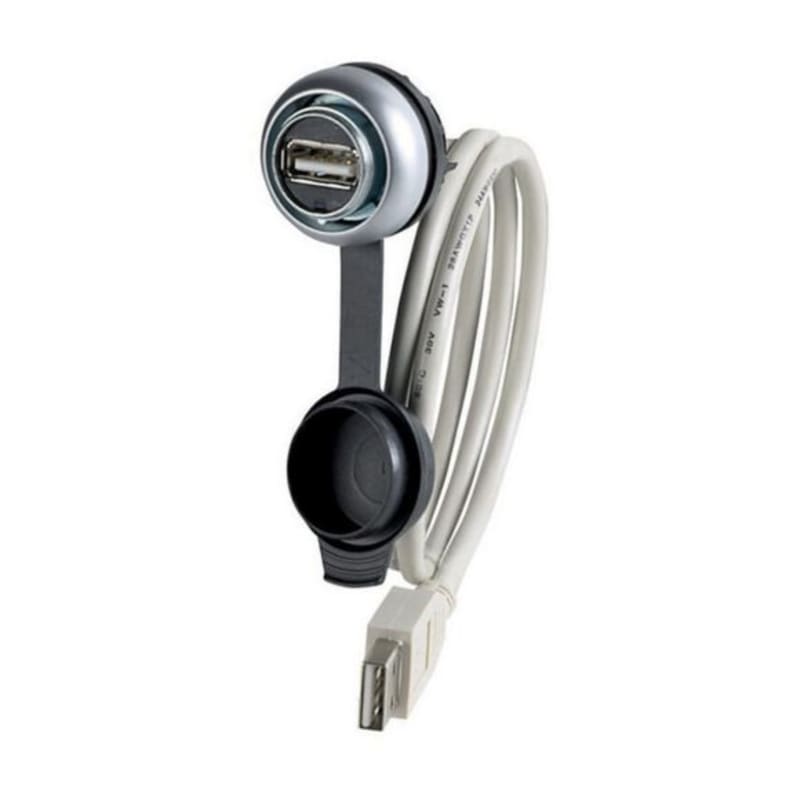

Connectionslead-through, RMQ (M22-USB-SA-150)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Connectionslead-through, RMQ (M22-USB-SA-150) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 147543; Depth: 120 mm; Height: 30 mm; Width: 120 mm; Weight: 0.14 kg.
Technical Specifications
- Manufacturer part number (MPN)
- M22-USB-SA-150
- EAN / GTIN
- 4015081439942
- Sales unit
- pcs
- Eaton catalogue number
- 147543
- Depth
- 120 mm
- Height
- 30 mm
- Width
- 120 mm
- Weight
- 0.14 kg
- Certifications
- IEC/EN 6113-2; UL; UL 508; Certified by UL for use in Canada; CSA Class No.: none; UL Category Control No.: DUXR
- DUXR7; CE; UL File No.
- E330994; CSA-C22.2 No. 142; UL report applies to both US and Canada
- Catalog Notes
- Prefabricated cable with permanently connected USB 3.0 Type A plug
- Bezel color
- Titanium
- Design
- USB 3.0 A
- Number of poles
- Nine-pole
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 80 °C
- Ambient operating temperature - min
- -20 °C
- Connection to SmartWire-DT
- No
- Insulation resistance
- ≥ 100 MΩ
- Nominal current
- 900 A
- Nominal voltage - max
- 30 V
- Rated operational voltage
- 5 V AC/DC
- Resistance
- < 30 mΩ (volume resistance)
- Accessory/spare part type
- Accessory
- Degree of protection
- IP65 (with closed cover); IP20 (with plug connected); NEMA 12 (with closed cover)
- Lifespan, mechanical
- 100 insertion cycles
- Mounting depth
- 70 mm
- Opening diameter
- 22.5 mm
- Used with
- Used for USB connection
- Accessory
- Yes
- Spare part
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4015081439942
- SAP 1200150121
- Code 82040926
Product Documentation
