Eaton

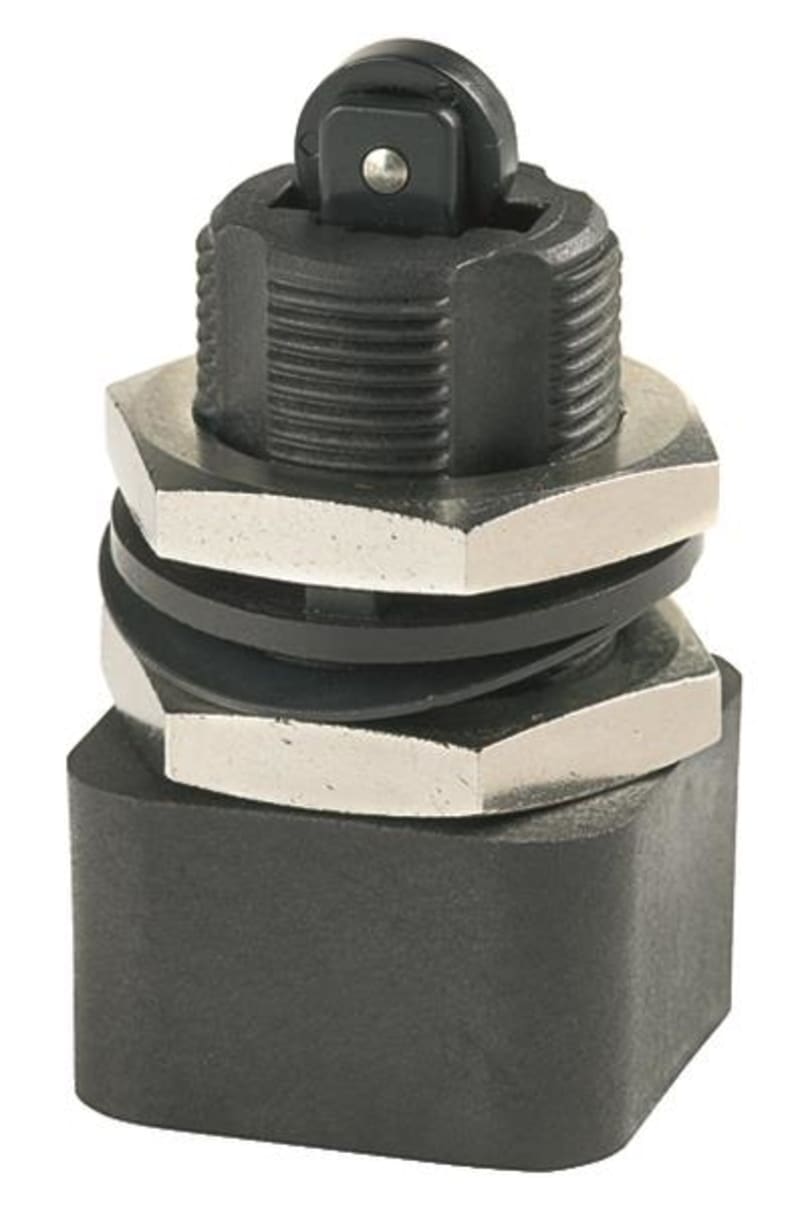

Roll Plug LS-XZRS
Part numberLS-XZRSEAN / GTIN4015081134472HS code8538.90
Sensors & Instrumentation
Position Switches
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton LS-XZRS Roll Plug, centre-mounted.
Technical Specifications
- Manufacturer part number (MPN)
- LS-XZRS
- EAN / GTIN
- 4015081134472
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 114025
- Depth
- 45 mm
- Height
- 25 mm
- Width
- 25 mm
- Weight
- 0.028 kg
- Certifications
- CSA; CSA File No.: 012528; UL 508; CSA-C22.2 No. 14; IEC/EN 60947-5; UL Category Control No.: NKCR; CE; UL; UL File No.: E29184; CSA Class No.: 3211-03
- Actuator type
- Roller cam
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -40 °C
- Features
- The operating head can be rotated 90° to enable adaptation to the specified approach direction
- Functions
- For mounting in enclosure wall or mounting plate drilling M18 x 1
- Product category
- Roller plunger, centre fixing
- Type
- Operating heads
- Type of control element
- Roller cam
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081134472
- SAP 1000599302
- Code 8210583
Product Documentation
Document preview: Roll Plug, — Specification Data Sheet (OEM)
More from Eaton
Eaton
Eaton NZM2/3-XAHIV48AC/DC-PI
Eaton

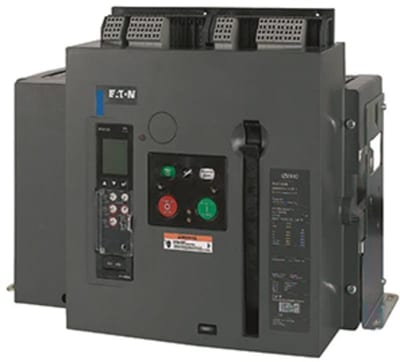

Eaton IZMX40H4-P40F-1
Eaton

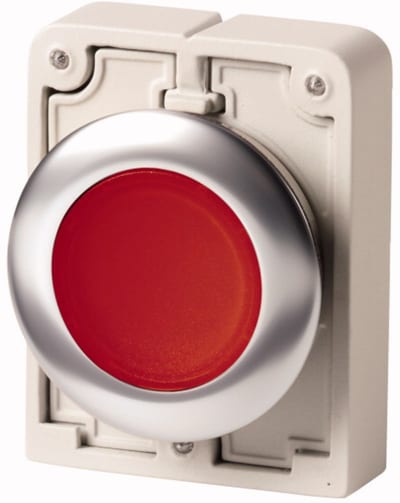

Illuminated Push Button Flat Front (M30C-FDRL-R)
Eaton

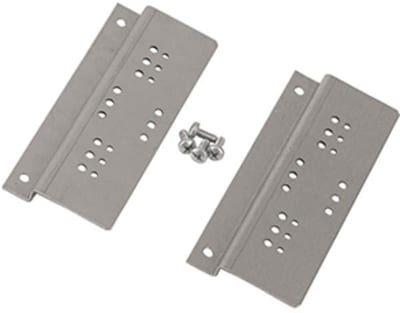

Mounting bracket B200
BPZ-BR/BBS250/V-200
Eaton

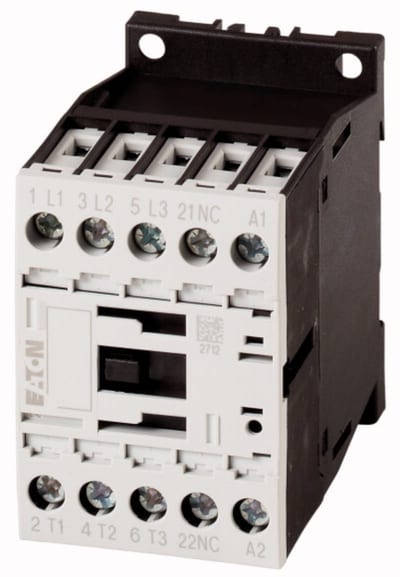

Eaton DILM12-01(110V50HZ,120V60HZ) contactor 3-pole 5.5 kW 1 NC
Eaton

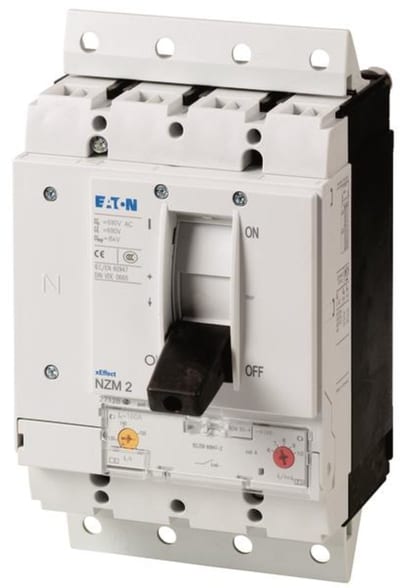

Eaton NZMH2-4-A32-SVE Molded-Case Circuit Breaker 4-Pole 32A 150KA
Eaton

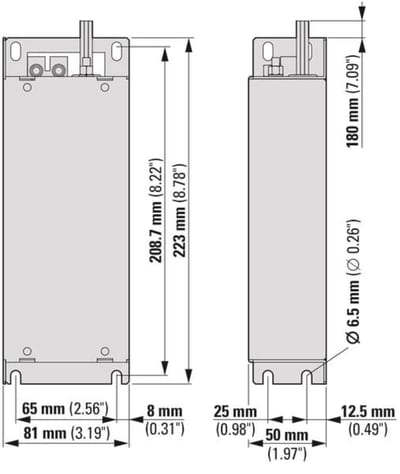

EMC, DC1, FS1, 1 ~ 250 V, 19A
DX-EMC12-019-FS1
Eaton

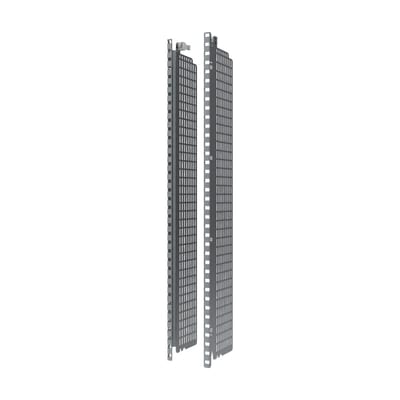

Mounting side wall MSW H950 xE Basic (EP-502577)
