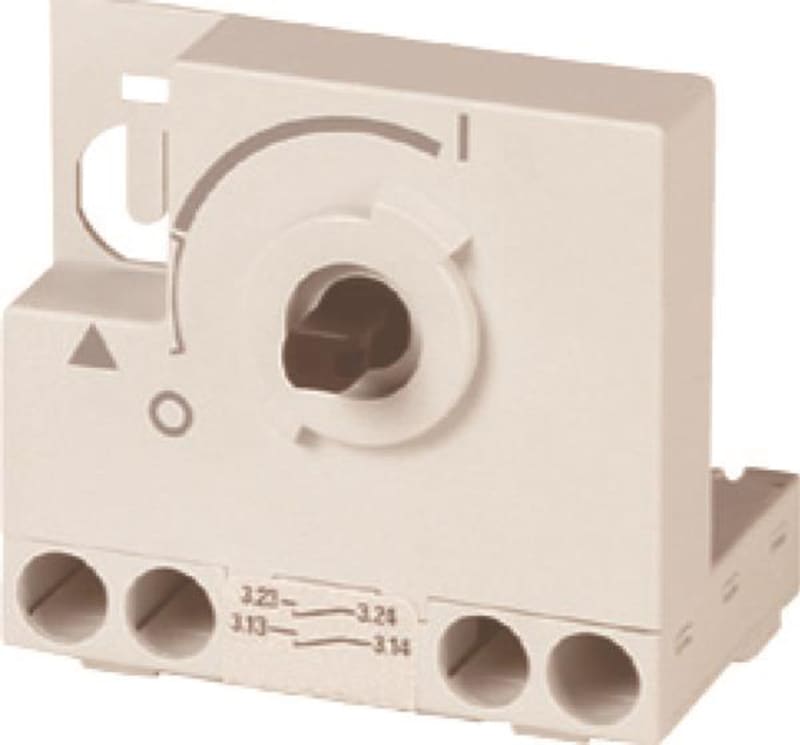

Auxiliary contact (VHI20-PKZ0)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Auxiliary contact (VHI20-PKZ0) is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Package quantity: 2 pcs; Eaton catalogue number: 203595; Depth: 40 mm; Height: 44 mm; Width: 45 mm.
Technical Specifications
- Manufacturer part number (MPN)
- VHI20-PKZ0
- EAN / GTIN
- 4015082035952
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Eaton catalogue number
- 203595
- Depth
- 40 mm
- Height
- 44 mm
- Width
- 45 mm
- Weight
- 0.029 kg
- Certifications
- CE; CSA; IEC/EN 60947-4-1; CSA Class No.: 3211-05; CSA File No.: 165628; UL 508; UL File No.: E36332; CSA-C22.2 No. 14; UL; UL Category Control No.: NLRV
- Catalog Notes
- For the premature voltage application of the U-release, e.g. in EMERGENCY STOP circuits according to EN 60204.
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -25 °C
- Number of contacts (change-over contacts)
- 0
- Number of contacts (normally closed contacts)
- 0
- Number of contacts (normally open contacts)
- 2
- Rated operational current for specified heat dissipation (In)
- 1 A
- Heat dissipation per pole, current-dependent Pvid
- 0.03 W
- Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
- 1 A
- Rated operational current (Ie) at DC-13, 24 V
- 2 A
- Rated operational voltage (Ue) at AC - max
- 440 V
- Rated operational voltage (Ue) at DC - max
- 250 V
- Safe isolation
- 440 V, Between auxiliary contacts and main contacts, According to EN 61140
- Short-circuit protection rating without welding
- 10 A gG/gL, Fuse, Auxiliary contacts
- Electric connection type
- Screw connection
- Lifespan, electrical
- 75,000 Operations
- Lifespan, mechanical
- 75,000 Operations
- Model
- Top mounting
- Mounting method
- Front fastening
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- Accessories
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Used with
- Motor protective circuit-breaker; PKZ0-X(R)H(-M),MSC-… and PKZM0-X…M12
- Switching capacity (auxiliary contacts, general use)
- 0.5 A, 300 V AC, (UL/CSA)
- Switching capacity (auxiliary contacts, pilot duty)
- E150, AC operated (UL/CSA)
- Terminal capacity (solid/flexible with ferrule)
- 0.75 - 1.5 mm²
- Terminal capacity (solid/stranded AWG)
- 18 - 16
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 4015082035952
- SAP 1000252475
- Code 8105846
