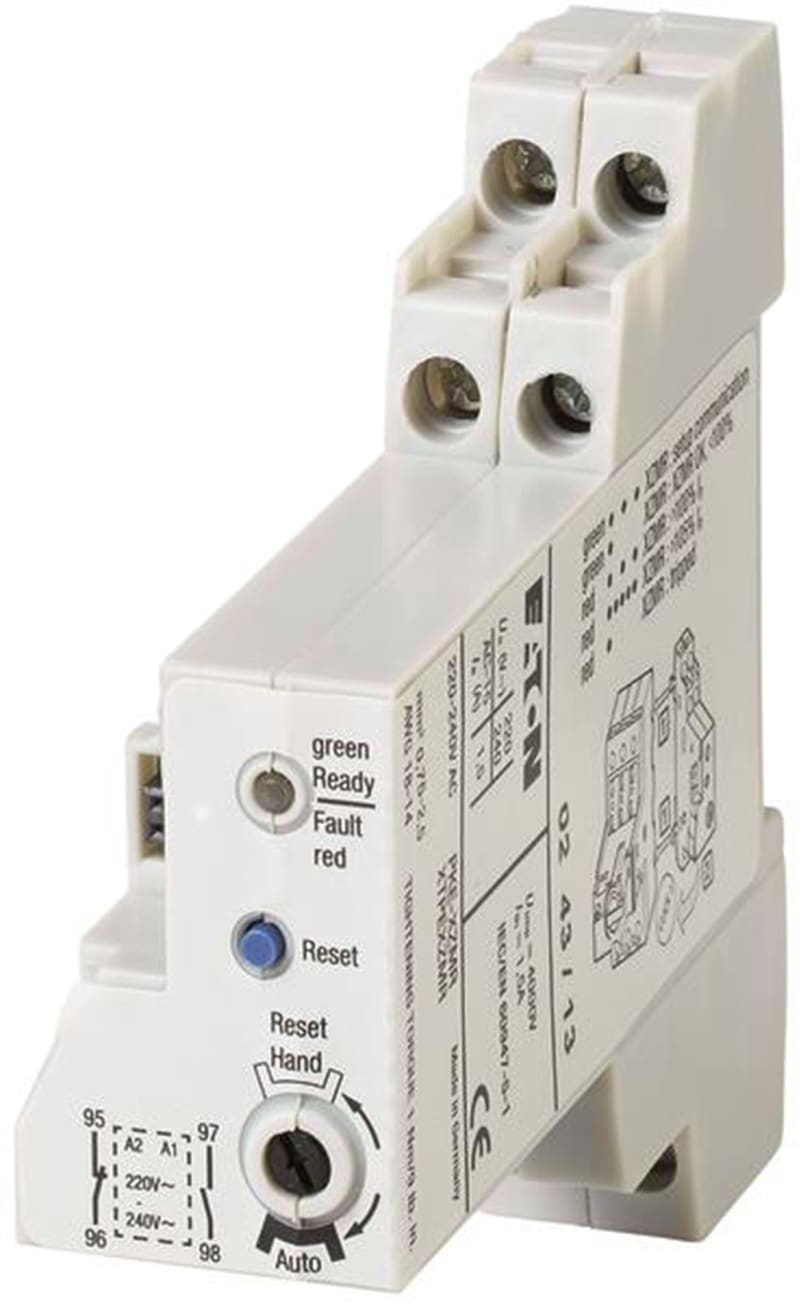

Overlastrelee module (PKE-XZMR(230V50HZ))

Eaton Overlastrelee module (PKE-XZMR(230V50HZ)) is listed under Switchgear & Protection / Overload Relays. Sales unit: pcs; Eaton catalogue number: 173416; Depth: 105 mm; Height: 50 mm; Width: 105 mm; Weight: 0.079 kg.

Manufacturer part number (MPN)

PKE-XZMR(230V50HZ)

EAN / GTIN

4015081698172

Sales unit

pcs

Eaton catalogue number

173416

Depth

105 mm

Height

50 mm

Width

105 mm

Weight

0.079 kg

Compliances

CE

Mounting position

Right side (of PKE motor-protective circuit-breakers with advanced PKE-XTU…A… trip blocks)

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-25 °C

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

1

Number of auxiliary contacts (normally open contacts)

1

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

1

Heat dissipation per pole, current-dependent Pvid

0.017 W

Rated operational current for specified heat dissipation (In)

1.5 A

Static heat dissipation, non-current-dependent Pvs

0.54 W

Operational voltage

0.8 - 1.1 x Us (alternating voltage)

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

1.5 A

Rated operational voltage (Ue) at AC - max

500 V

Safe isolation

440 V, Between auxiliary contacts and main contacts, According to EN 61140

Features

Status display via LED

Functions

Adjustable manual/auto reset; Overload relay function (the motor-protective circuit-breaker will not trip in the event of an overload)

Class

Other

Lifespan, electrical

200,000 Operations

Lifespan, mechanical

5,000,000 Operations

Mounting method

Direct attachment

Overvoltage category

III

Pollution degree

3

Product Category

Accessories

Rated impulse withstand voltage (Uimp)

6000 V AC

Voltage type

AC

Rated control supply voltage (Us) at AC, 50 Hz - max

230 V

Rated control supply voltage (Us) at AC, 50 Hz - min

230 V

Power consumption, pick-up, 50 Hz

1.7 VA, Pull-in power, Coil in a cold state and 1.0 x Us

Power consumption, pick-up, 60 Hz

1.7 VA, Pull-in power, Coil in a cold state and 1.0 x Us

Short-circuit protection rating

6 A gG/gL, Fuse, Contacts

Terminal capacity (solid/flexible with ferrule)

0.75 - 2.5 mm²

Terminal capacity (solid/stranded AWG)

18 - 14

Number of auxiliary contacts as normally open contact

1

Number of auxiliary contacts as normally closed contact

1

External power supply required

No

Rated control supply voltage AC 50 Hz

230 V

Rated switch current

1.5 A

Operating voltage AC 50 Hz

230 V

Voltage type for actuating

AC

Reset function input

No

Reset function automatic

Yes

Reset function push-button

Yes

Country of origin

Germany

HS Code

8538.90

• EAN 4015081698172
• SAP 1000625818
• Code 8293036
